CW-C70YE / CW-C90YE
10 Service Information

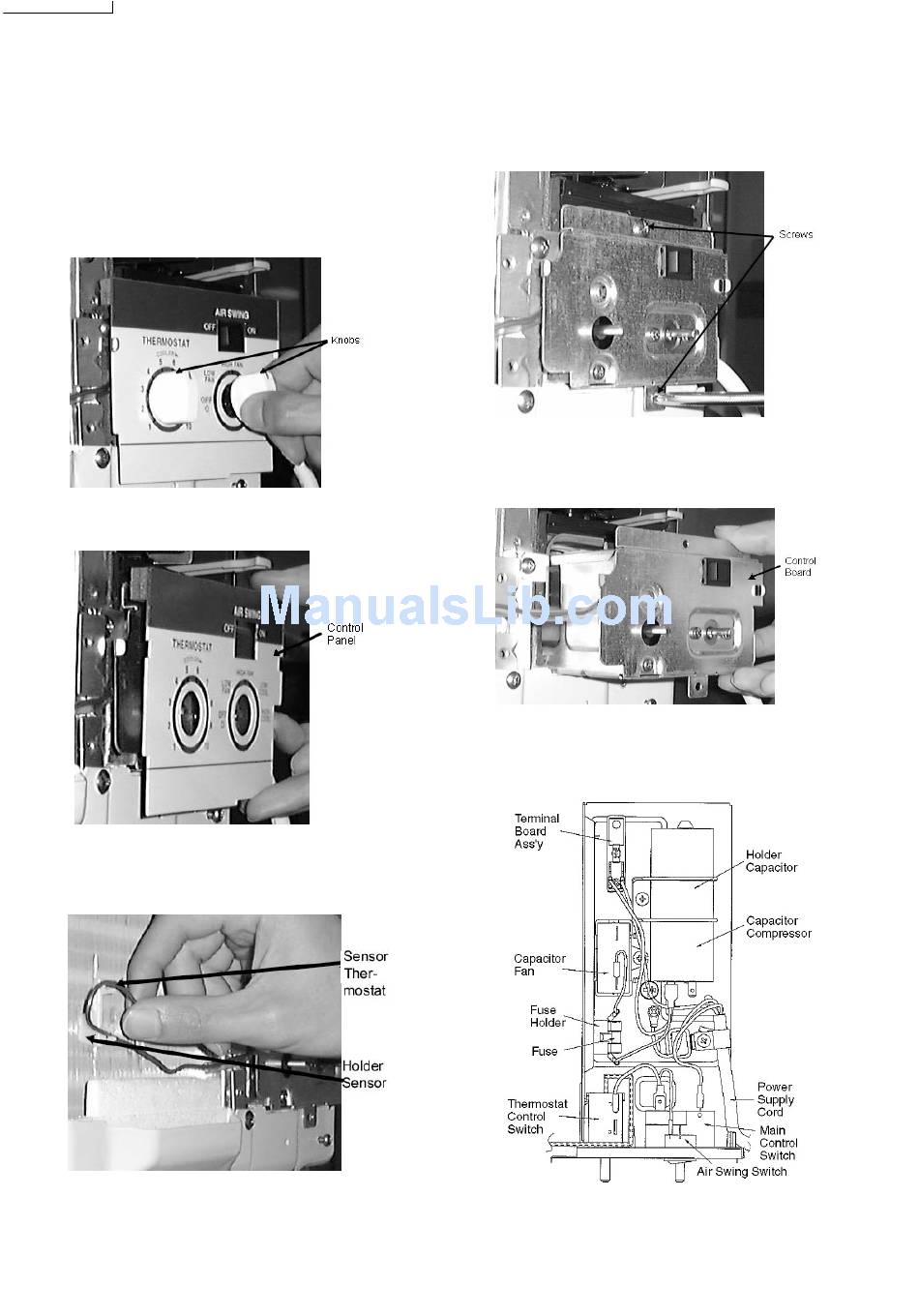

10.1. Removal of the Control Board
1. Remove the Front Intake Grille (refer to page 9).
2. Remove the Air Filter (refer to page 9).
3. Remove the Front Grille (refer to page 9).
4. Remove the 2 knobs.
5. Take off the Control Panel.
6. Release the sensor thermostat from the holder sensor.
7. Loosen the 2 screws of the Control Board.
8. Slide the Control Board out from the chassis.
• Control Board part location.
12
