CW-C70YE / CW-C90YE

1 Product Specification

Model CW-C70YE
Phase Single
Voltage 230 - 220 V
Frequency 50 Hz
Cooling Capacity 2.06 - 2.06 kW
7,000 - 7,000 Btu/h
Running Current 3.0 - 3.1 A
Input Power 680 - 660 W
EER 3.03 - 3.12 W/W
Starting Current 12.4 A
Compressor Output 550 W
Fan Motor Output 40 W
Noise Level Indoor (High / Low):
46 / 43 - 45 / 41 dB(A)
Outdoor (High / Low):
56 / 51 - 55 / 50 dB(A)
Power Level Indoor: 59 dB(A)
Outdoor: 68 dB(A)

2 Dimensions

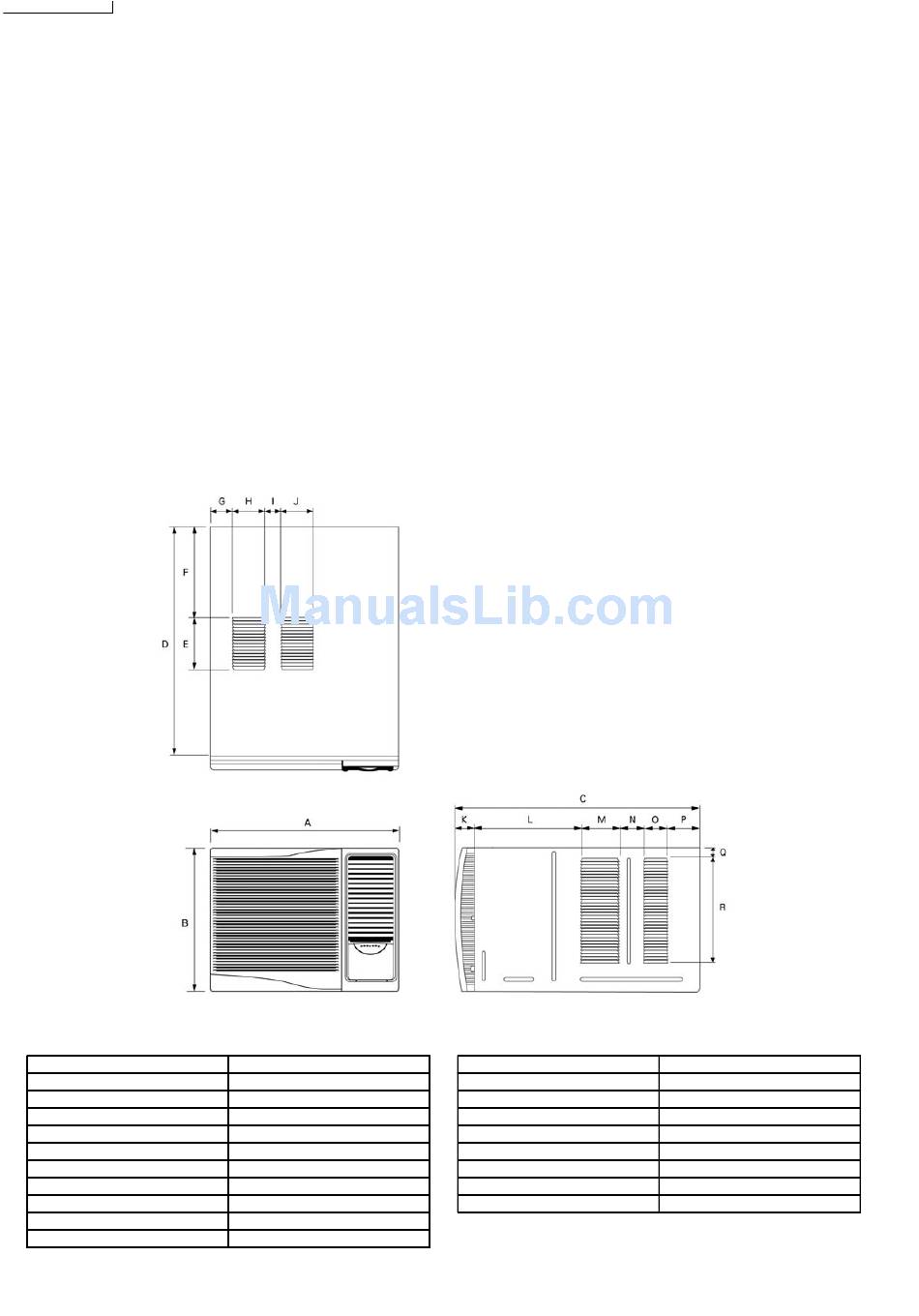

2.1. Top View, Front View & Side View
2.2. Unit
Item
A (Width)
B (Height)
C (Depth)
D
E
F
G
H
I
J
CW-C90YE
Single
230 - 220 V
50 Hz
2.65 - 2.64 kW
9,040 - 9,000 Btu/h
4.0 - 4.1 A
910 - 880 W
2.91 - 3.00 W/W
18 A
750 W
40 W
Indoor (High / Low):
46 / 43 - 45 / 42 dB(A)
Outdoor (High / Low):
57 / 54 - 56 / 53 dB(A)
Indoor: 59 dB(A)
Outdoor: 68 dB(A)
All listed models
17-23/32" (450 mm)
13-5/8" (346 mm)
22-27/32" (580 mm)
21-1/4" (540 mm)
5-21/32" (144 mm)
6-1/32" (153 mm)
1-31/32" (50 mm)
3-27/32" (98 mm)
1-3/16" (30 mm)
3-27/32" (98 mm)
Model CW-C70YE
Moisture Removal 1.3 Ltr/h
2.7 Pint/h
Air Circulation 7.3 m3/min.
260 Ft3/min.
Dimensions Height: 13-5/8 inches
(346 mm)
Width: 17-23/32 inches
(450 mm)
Depth: 22-27/32 inches
(580 mm)
Net Weight 31.5 kg
69 Ib
Refrigerant (R-22) 520 g
18.4 oz
Note: Specifications are subject to change without notice for further
improvement.
Item
K
L
M
N
O
P
Q
R
2
CW-C90YE
1.6 Ltr/h
3.4 Pint/h
7.3 m3/min.
260 Ft3/min.
Height: 13-5/8 inches
(346 mm)
Width: 17-23/32 inches
(450 mm)
Depth: 22-27/32 inches
(580 mm)
34.5 kg
76 Ib
475 g
16.8 oz
All listed models
1-9/16" (40 mm)
9-7/32" (234 mm)
3-27/32" (98 mm)
2-31/32" (75 mm)
1-11/16" (43 mm)
3-17/32" (90 mm)
0-29/32" (23 mm)
10-11/32" (263 mm)
