Wiring Diagram - Panasonic CW-C70YE Service Manual

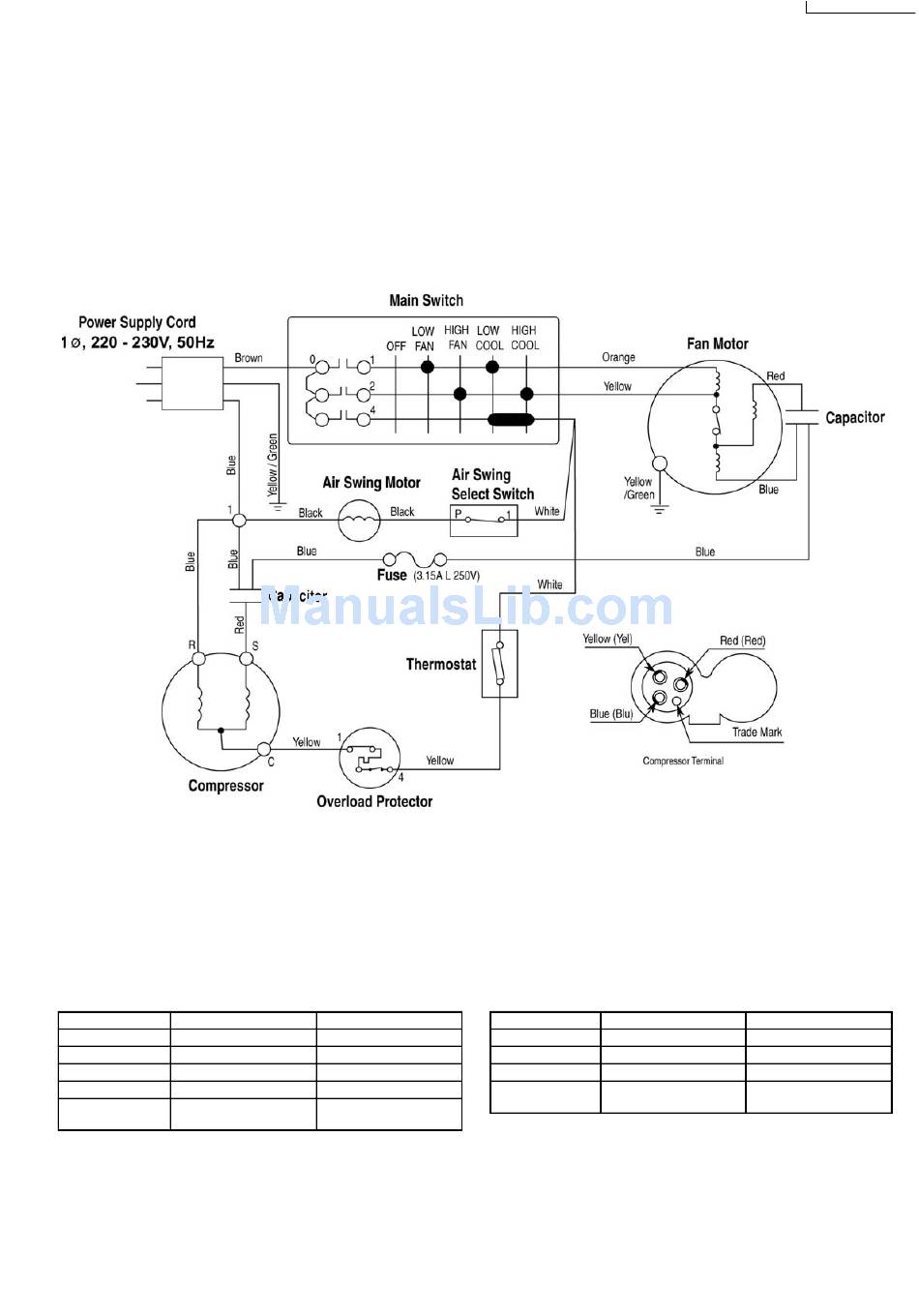

3 Wiring Diagram

3.1.
3.2. Resistance of Fan Motor
windings and the rated
Capacitor.
Model CW-C70YE
Connection CWA921025
96.9 Ω
Blue - Yellow
38.4 Ω
Yellow - Orange
115.3 Ω
Red - Yellow
Capacitor CWA31607
(2.3µF, 400VAC)
3.3.
CW-C90YE
CWA92303 Connection
96.9 Ω
C-R
31.4 Ω
C-S
115.3 Ω
Capacitor
CWA31607
(2.3µF, 400VAC)
Note: Resistance at 20°C of Ambient Temperature.
3
Resistance of Compressor
windings and the rated
Capacitor.
Model CW-C70YE
2RS122D5BB02
5.193 Ω
5.557 Ω
CWA31501
(20µF, 370VAC)
CW-C70YE / CW-C90YE
CW-C90YE
2PS156D5CA02
3.501 Ω
3.405 Ω
CWA31503
(30µF, 370VAC)
