CW-C172KR / CW-C202KR / CW-A172KR
9 Operating Instructions
9.1.
CW-C172KR, CW-C202KR
9.1.1.

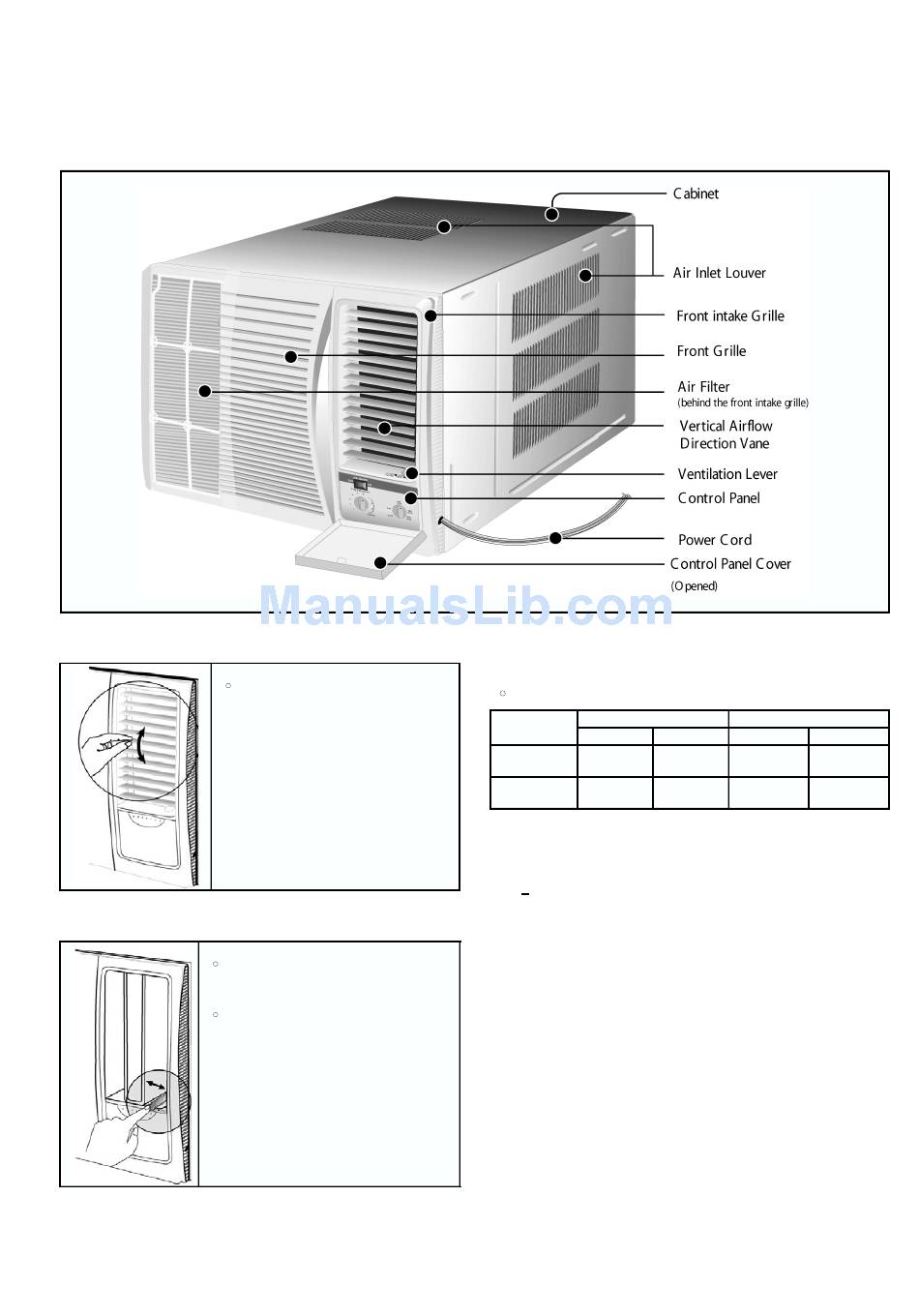

Parts Identification.
9.1.1.1.
Vertical Airflow Direction Vane.
9.1.1.2.
Ventilation Lever.
Airflow direction adjustment Up-and-Down.
• The vertical airflow direction vane is
controlled by positioning the vane to
discharge the air upwards, downwards
or straight out.
When the slide lever is in the:
• "OPEN" position, the ventilation door
opens to allow air, smoke or odours to be
expelled from the room.
• "CLOSE" position, the ventilation door is
closed and the air will be circulated inside
the room and conditioned.
9.1.1.3.
Recommended.
Use the air conditioner under the following conditions:
• Operating temperature range.
Indoor side
D.B.T.
Maximum
32° C
Temperature
Minimum
21° C
Temperature
D.B.T.: Dry Bulb Temperature
W.B.T.: Wet Bulb Temperature
Note: Humidity may exceed 90%.
− Continuous operation at over 90% high humidity may
create condensation and result in water drops on the
intake and outlet vanes.
11
Outdoor side
W.B.T.
D.B.T.
W.B.T.
23° C
43° C
26° C
15° C
21° C
15° C
