7.2.

How to Operate.

(1) Open the Control Panel Cover.
(2) Power Supply
Switch off the breaker and set the Main Control Knob to the
OFF position before plugging the power plug into an
electrical outlet.
(3) Main Control Knob
Set the Main Control Knob to either LOW COOL or HIGH
COOL as desired, FAN setting operates the fan only.
Caution: If the Main Control Knob is turned off or
changed to a fan setting from a cooling operation
setting, WAIT at least 3 minutes before resetting it to a
cooling operation.
(4) Thermostat Control Knob
Turn the Thermostat Control Knob as shown in Fig. 4.
Usually "6" ~ "7" is the recommended setting position.
Note: When the Thermostat Control Knob is set to "10",
moisture may freeze onto the evaporator fins and prevent
effective cooling. If this happens, turn the Main Control
Knob to HIGH FAN, and the Thermostat Control Knob
counterclockwise. This will quickly defrost the evaporator
fins so that normal cooling can be resumed.
(5) Air Swing Switch
(Airflow direction adjustment side-to-side)
To obtain a fixed airflow direction, set the Air Swing Switch
to "ON" for the vanes to swing from side to side until the
desired flow direction is reached, then switch it to "OFF".
For continuous side-to-side air circulation, set the Air Swing
Switch to "ON".
7
CW-C70YE / CW-C90YE

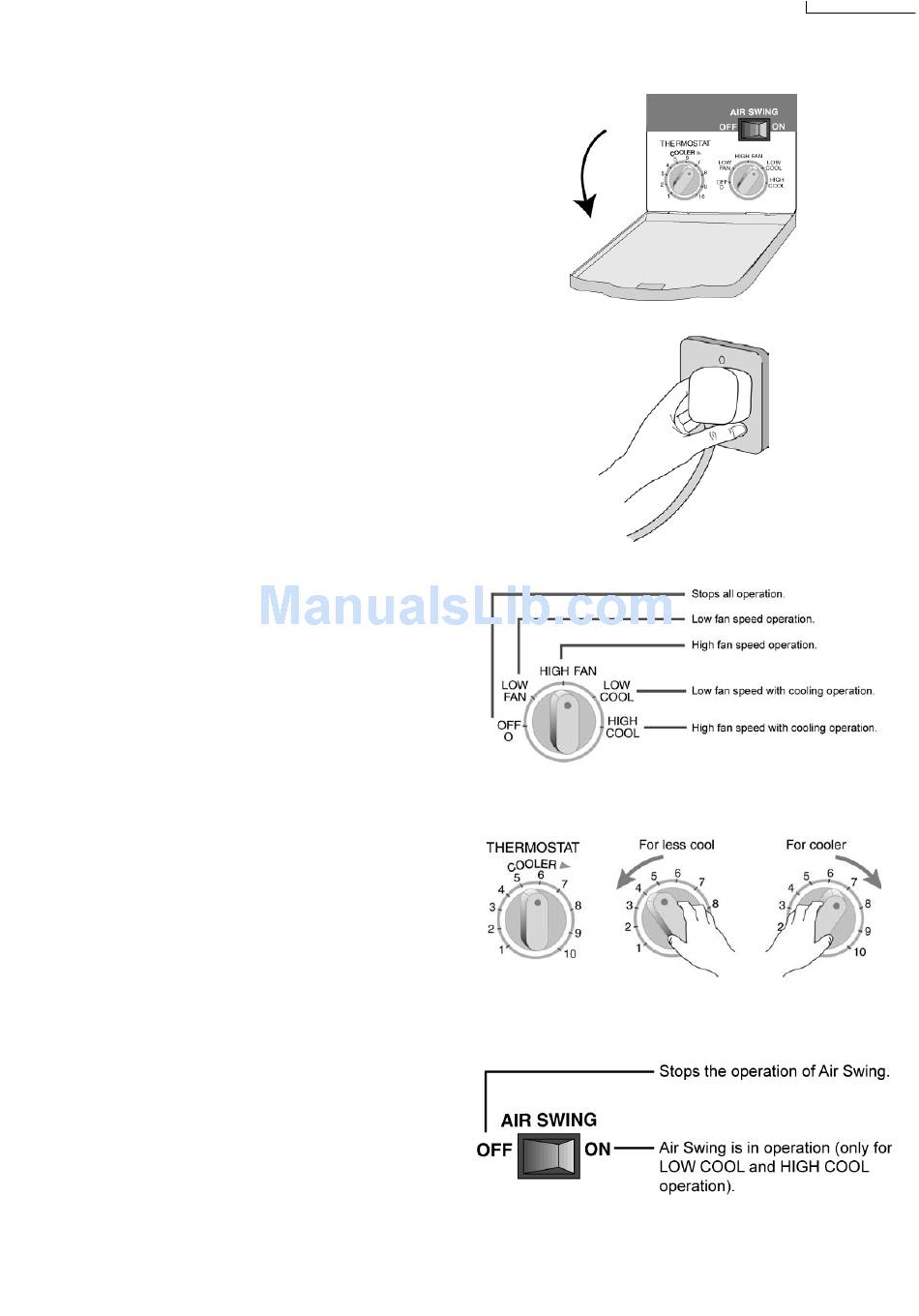

Fig. 1
