Exploded View - Panasonic CW-C70YE Service Manual

Hide thumbs
Table of Contents

Advertisement

CW-C70YE / CW-C90YE

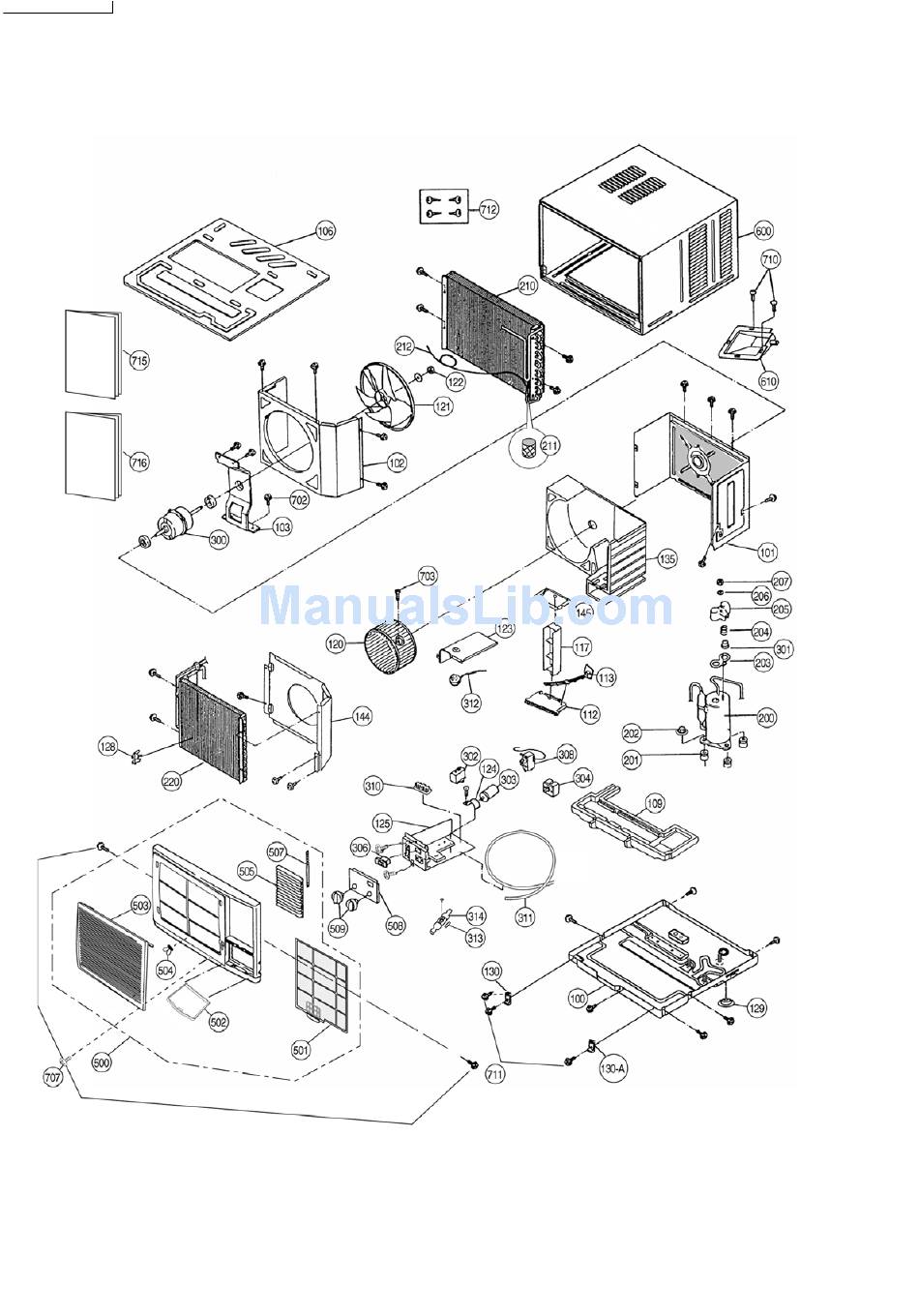

12 Exploded View

(Note)
• The above exploded view is for the purpose of parts disassembly and replacement.
• The non-numbered parts are not kept as standard service parts.
