advidia B-5360 5MP Hardware Manual

360?weather-proof mini dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

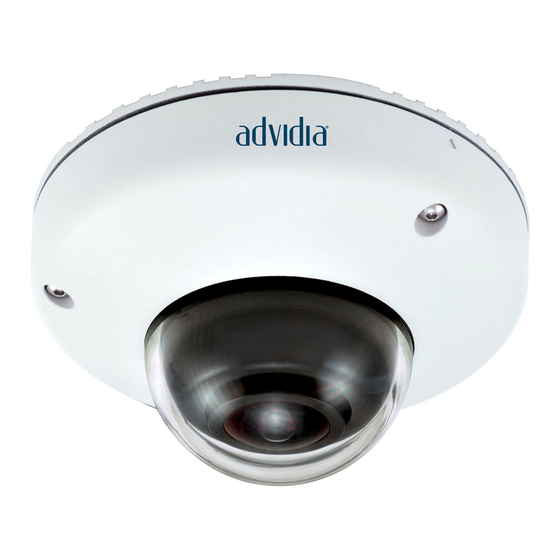

B-5360 5MP
360˚Weather-Proof Mini Dome
Hardware Manual

Advertisement

Table of Contents
loading

Related Manuals for advidia B-5360 5MP

Summary of Contents for advidia B-5360 5MP

  • Page 1 B-5360 5MP 360˚Weather-Proof Mini Dome Hardware Manual...

  • Page 2: Table Of Contents

    B-5360 Hardware Manual Table of Contents Precautions Safety Instructions ................5 Introduction Package Contents ................6 Physical Description ................ 7 Mounting Options ................9 Installation Procedures Step 1: Prepare for Installation ............10 Step 2: Open the Dome Cover ............11 Step 3: Route the Cables..............
  • Page 3 Every reasonable care has been taken during the writing of this manual. Please contact Advidia if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and...
  • Page 4 B-5360 Hardware Manual Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Safety Instructions

    B-5360 Hardware Manual Safety Instructions Cleaning Disconnect this video product from the power supply before cleaning. Attachments Do not use attachments not recommended by the video product manufacturer as they may cause hazards. Water and Moisture Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool and the like.

  • Page 6: Introduction

    B-5360 Hardware Manual Introduction Package Contents Check if the camera package comes with the following items: B-5360 Camera Body Screw Kit Drill Template Hexagon Screwdriver Cable Grommet Quick Start Guide IMPORTANT: When the camera is taken out from the box, the lens cover is covered by a protective film.

  • Page 7: Physical Description

    B-5360 Hardware Manual Physical Description Item Description System LEDs Indicates the camera status:  Amber LED: Blinks when network activity is in progress.  Blue LED: Lights up when the camera is powered up and goes off again after the boot up process is complete. ...
  • Page 8 B-5360 Hardware Manual Item Description Connects to audio input devices, such as a microphone with Audio Input built-in amplifier, etc. See How to Connect Audio Device page 20. NOTE: The microphone must have a built-in amplifier. Connecting an ordinary microphone will dwarf sounds and will result in inaudible recording.

  • Page 9: Mounting Options

    B-5360 Hardware Manual Mounting Options Select the most suitable solution for your installation environment. The camera can be mounted by either of the following methods: Mount Types Accessories Suitable when mounting the camera directly on walls or ceilings without Surface Mount additional mounting accessories.

  • Page 10: Installation Procedures

    B-5360 Hardware Manual Installation Procedures This section describes procedures in mounting the camera on a flat surface. NOTE: The camera images on this documentation are for reference only and may be different from the actual camera. Step 1: Prepare for Installation 1.

  • Page 11: Step 2: Open The Dome Cover

    B-5360 Hardware Manual Step 2: Open the Dome Cover 1. Loosen the three (3) screws using the included hex screwdriver. 2. Lift to remove the dome cover. NOTE: The dome cover is attached to the camera body by a cable; do not lift the dome cover abruptly!

  • Page 12: Step 3: Route The Cables

    B-5360 Hardware Manual Step 3: Route the Cables Determine whether the cable will pass through a hole on the surface or be routed along the surface: If the cable will pass through a hole on the surface: 1. Drill the hole for the cable on the surface. Drill cable hole within this block.

  • Page 13: Step 4: Install The Camera

    B-5360 Hardware Manual Step 4: Install the Camera 1. If necessary, insert a memory card into the memory card slot of the camera. See How to Insert the Memory Card on page 19 for more information. 2. Mount the camera to the surface using the three (3) supplied screws. NOTE: Please make sure the screw is flat on the plate.

  • Page 14: Step 5: Waterproof The Cable Connection

    B-5360 Hardware Manual Step 5: Waterproof the Cable Connection When using the RJ-45 Ethernet cable, follow the procedures below to waterproof the cable connection: 1. Detach the cable grommet as shown below. Grommet Body Clamping Nut Sealing Rubber and Claw 2.
  • Page 15 B-5360 Hardware Manual 4. Make sure the bundled rubber ring is completely aligned on the gap on the grommet body. 5. Attach the grommet body to the Ethernet port of the camera. IMPORTANT! Make sure the rubber ring is completely aligned and flat on the grommet body to avoid possible water leakage.
  • Page 16 8. Attach the clamping nut to the cable gland body. Make sure the clamping nut is tightly secured and the rubber is squeezed in to avoid water leakage. DISCLAIMER: Advidia will not be responsible for camera damage caused by water entering the cable connections.

  • Page 17: Step 6: Connect To Network

    B-5360 Hardware Manual Step 6: Connect to Network Connect the other end of the network cable to a switch or injector. Then, connect the switch or injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example connection diagram below.

  • Page 18: Step 8: Close The Dome Cover

    B-5360 Hardware Manual Step 8: Close the Dome Cover 1. Align cable tab side of the dome cover to the direction of the network cable. 2. Tighten the three (3) screws using the supplied hex screwdriver to attach the dome cover. 3.

  • Page 19: Other Adjustments And Accessories

    B-5360 Hardware Manual Other Adjustments and Accessories How to Install / Remove the Memory Card How to Insert the Memory Card 1. Loosen the three (3) screws to remove the dome cover. 2. Insert the memory card into the card slot with the metal contacts facing the bottom side of the camera.

  • Page 20: How To Connect Audio In Device

    3. If the camera is installed outdoors, be sure to wrap the audio connectors with Waterproof Tape (can be purchased in hardware stores). DISCLAIMER: Advidia will not be responsible for camera damage due by water leakage caused by improper waterproofing of cables.

  • Page 21: How To Adjust The Viewing Orientation

    B-5360 Hardware Manual How to Adjust the Viewing Orientation 1. Open the dome cover. 2. Loosen the three (3) screws securing the lens. 3. Turn the lens to adjust the viewing orientation. The arrow on the lens indicates the top side orientation.

  • Page 22: Accessing The Camera

    PC with the IP address of the target camera filled in the address bar of the browser already. If you work with Advidia cameras regularly, then there is even a better way to discover the cameras in the network – by using The Advidia B Series Camera Finder Utility. The IP...
  • Page 23 B-5360 Hardware Manual You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.

  • Page 24: Using The Default Camera Ip Address

    B-5360 Hardware Manual Using the Default Camera IP Address If there is no DHCP server in the given network, the user may have to assign the IP addresses to both PC and camera manually to make sure they are in the same network segment. When the camera is plugged into network and it does not detect any DHCP services, it will automatically assign itself a default IP: 192.168.0.100...
  • Page 25 B-5360 Hardware Manual Manually adjust the IP addresses of multiple cameras: If there are more than 1 camera to be used in the same local area network and there is no DHCP server to assign unique IP addresses to each of them, all of the cameras would then have the initial IP address of 192.168.0.100, which is not a proper situation for network devices –...

  • Page 26: Access The Camera

    Disclaimer Notice: Advidia does not guarantee the compatibility of its cameras with VLC player or QuickTime – since these are third party softwares. The third party has the right to modify their utility any time which might affect the compatibility. In such cases, please use Internet Explorer browser instead.
  • Page 27 B-5360 Hardware Manual The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera. Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the Web browser and typing the following address into Web browser’s address bar: http://192.168.0.100 Upon successful connection to the camera, the user interface called Web Configurator would appear together with the login page.
