www.Advidia.com
Quick Setup Guide

Advertisement

Table of Contents
loading

Related Manuals for advidia A-45

Summary of Contents for advidia A-45

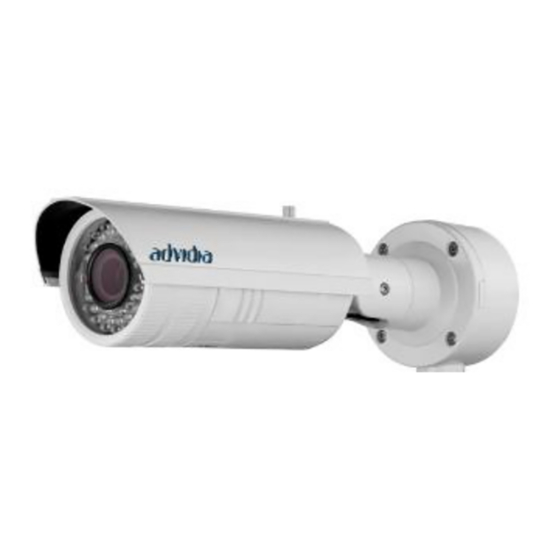

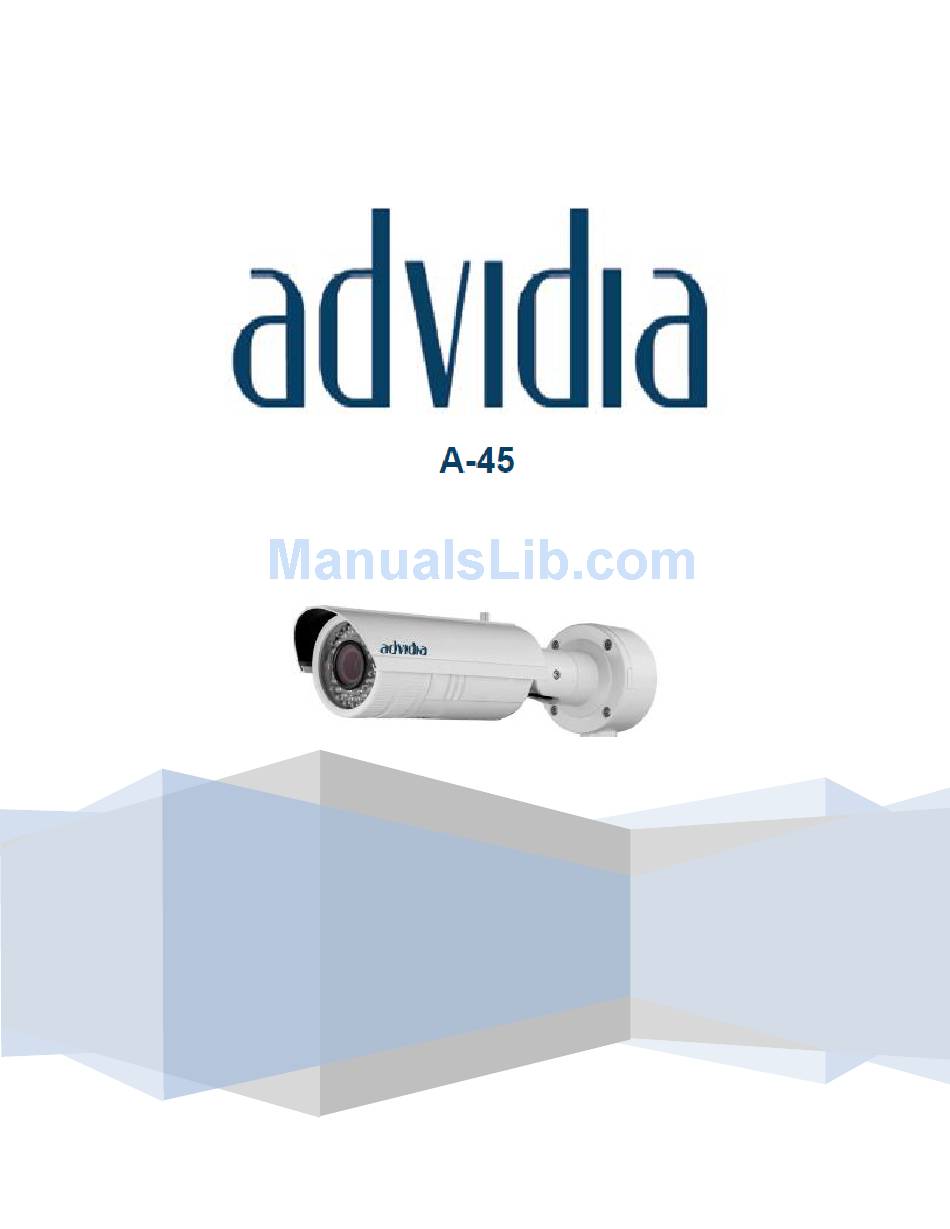

  • Page 1 Quick Setup Guide...

  • Page 2: Table Of Contents

    Advidia A-45 Bullet Camera Table of Contents Physical Camera Description ......................3 Installation ............................5 Search and Modify IP ........................8 Preview via Web Browser....................... 11  Channel Parameters DisplaySetting ................... 14  Channel Parameters Video Settings .................... 15 ...

  • Page 3: Physical Camera Description

    Advidia A-45 Bullet Camera A. Physical Camera Description Note: There are two types of these cameras’ interface as shown in figure 1.1 and figure 1.2. Please choose the right figure as your camera’s reference. Figure 1.1 Figure 1.2 Serial NO.
  • Page 4 Advidia A-45 Bullet Camera Figure 1.3 4/10/2012 Page 4...

  • Page 5: Installation

    Advidia A-45 Bullet Camera B. Installation  Please check if all the items on the package list have been included with your camera.  Read the following contents carefully before the installation.  Make sure that all the related equipment is power-off during the installation.
  • Page 6 Advidia A-45 Bullet Camera Step 2: Use screws to fix the mounting bracket with camera main body to wire hidden box as shown in Figure 2.2. Figure 2.2 Fix the camera Step 3: Adjust the camera to the desired monitoring location and finally tighten the nuts on bracket to fix the camera.
  • Page 7 Advidia A-45 Bullet Camera Figure 2.4 Figure 2.5 Adjust lens Step 5: fix the lens and front cover as shown in Figure 2.6. Figure 2.6 4/10/2012 Page 7...

  • Page 8: Search And Modify Ip

    Advidia A-45 Bullet Camera C. Search and Modify IP SADP (Search Active Devices Protocol) software can automatically search the IP address of network cameras in the same local area network (LAN) with connection diagram as following: Figure 3.1 The operation of searching and modifying IP address is described as following: 1.
  • Page 9 Advidia A-45 Bullet Camera 2. Search IP address. Figure 3.3 4/10/2012 Page 9...
  • Page 10 Advidia A-45 Bullet Camera 3. Modify IP address. 4/10/2012 Page 10...

  • Page 11: Preview Via Web Browser

    Advidia A-45 Bullet Camera D. Preview via Web Browser Note: The default IP of network cameras is ‘192.0.0.64’ with ‘admin’ as the administrator, ‘12345’ as the password, and ‘8000’ as the default port. For monitoring camera images, a computer running the Microsoft Windows Operating System and Internet Explorer (Version 6.0 or later) are required.
  • Page 12 Advidia A-45 Bullet Camera Figure 4.2 2. Input the IP address of the camera and press [Enter], and then click the dialog box that pops Figure 4.3 3. Click [Run] to install the ActiveX control. 4/10/2012 Page 12...
  • Page 13 Advidia A-45 Bullet Camera Figure 4.4 4. Input “Username” (Default: admin), “Password” (Default: 12345) and “Port” (Default: 8000) of the camera, then click [Login] Figure 4.5 5. View the image 4/10/2012 Page 13...

  • Page 14: Channel ParametersDisplaysetting

    Advidia A-45 Bullet Camera E. Web Interface Configuration Channel ParametersDisplaySetting According to different requirements, enable the display of Date&Time and Week by clicking the checkbox. Different date formats can be selected. There are two Time format: 24 hour and 12 hour.

  • Page 15: Channel ParametersVideo Settings

    Advidia A-45 Bullet Camera Channel ParametersVideo Settings Parameter Description Channel Name Input the channel name for your need Encode Parameters Main stream or Sub stream optional Stream Type Video&Audio or Video optional Resolution Select the resolution for your need Image Quality...

  • Page 16: Channel ParametersMotion Detection Setting

    Advidia A-45 Bullet Camera Video Encode Type Select the video encode type for your need Channel ParametersMotion Detection Setting Select the checkbox of Enable motion detection to enable this function. Zone Settings:Click Start draw button to draw motion detection zone by clicking and dragging the mouse in the live video image.

  • Page 17: Channel ParametersFront Para Config

    Advidia A-45 Bullet Camera Channel ParametersFront Para Config In this page, user can adjust the parameters like brightness, contrast, saturation, sharpness, etc. Shutter: User can set the shutter time according to the different camera models. IrisMode:There are two modes: IrisFirst and manual optional.

  • Page 18: Network ParametersNtp Setting

    Advidia A-45 Bullet Camera Network ParametersNTP Setting Click the checkbox of Enable NTP to enable this function. Input the Server Address and Port of NTP. If the public network is applied, please input the NTP Server Address with provision of time sync service, e.g., 210.72.145.44.

  • Page 19: Alarm ParametersAlarm Input Setting

    Advidia A-45 Bullet Camera Alarm ParametersAlarm Input Setting Set the type of Relay Status to NC or Note: Please reboot the network camera to validate the modified parameters. The Linkage can be selected to E-mail link, Trigger alarm output or Trigger recording.

  • Page 20: User Management

    Advidia A-45 Bullet Camera User Management When the current login user is admin, it is allowed to create other users. Up to 15 users can be created. Add User Click Add to enter the settings interface as shown here. Input the user name,...

  • Page 21: Adding Camera To Monitor Station

    Advidia A-45 Bullet Camera F. Adding Camera to Monitor Station Using Auto discovery, enter the default credentials described above and click Start. Using Manual add on, choose to add a camera and select the following from the dropdown: 4/10/2012 Page 21...
  • Page 22 Advidia A-45 Bullet Camera 4/10/2012 Page 22...
