Intelix VGA2-HR Installation Manual page 2

I/O Connections
VGA
Twisted Pair
12V DC Power
Supported Video
Maximum Video Compatibility at 106 m
Input DDC Signal
Input Video Signal
Chassis and Environmental
Enclosure
Dimensions
Shipping Weight
Operating Temperature (Environment)
Operating Temperature (Chassis)
Operating Humidity (Environment)
Storage Temperature (Environment)
Storage Humidity (Environment)
Power, ESD, and Regulatory
Maximum Power Consumption
Power Supply
ESD Protection
Regulatory
Other
Standard Warranty
Diagnostic Indicators
Included Accessories
Technical Specifications
HD15 Female
Shielded RJ45 Female
5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
UXGA (1600 x 1200)
5.0 volts p-p (TTL)
1.2 volts p-p
Painted steel

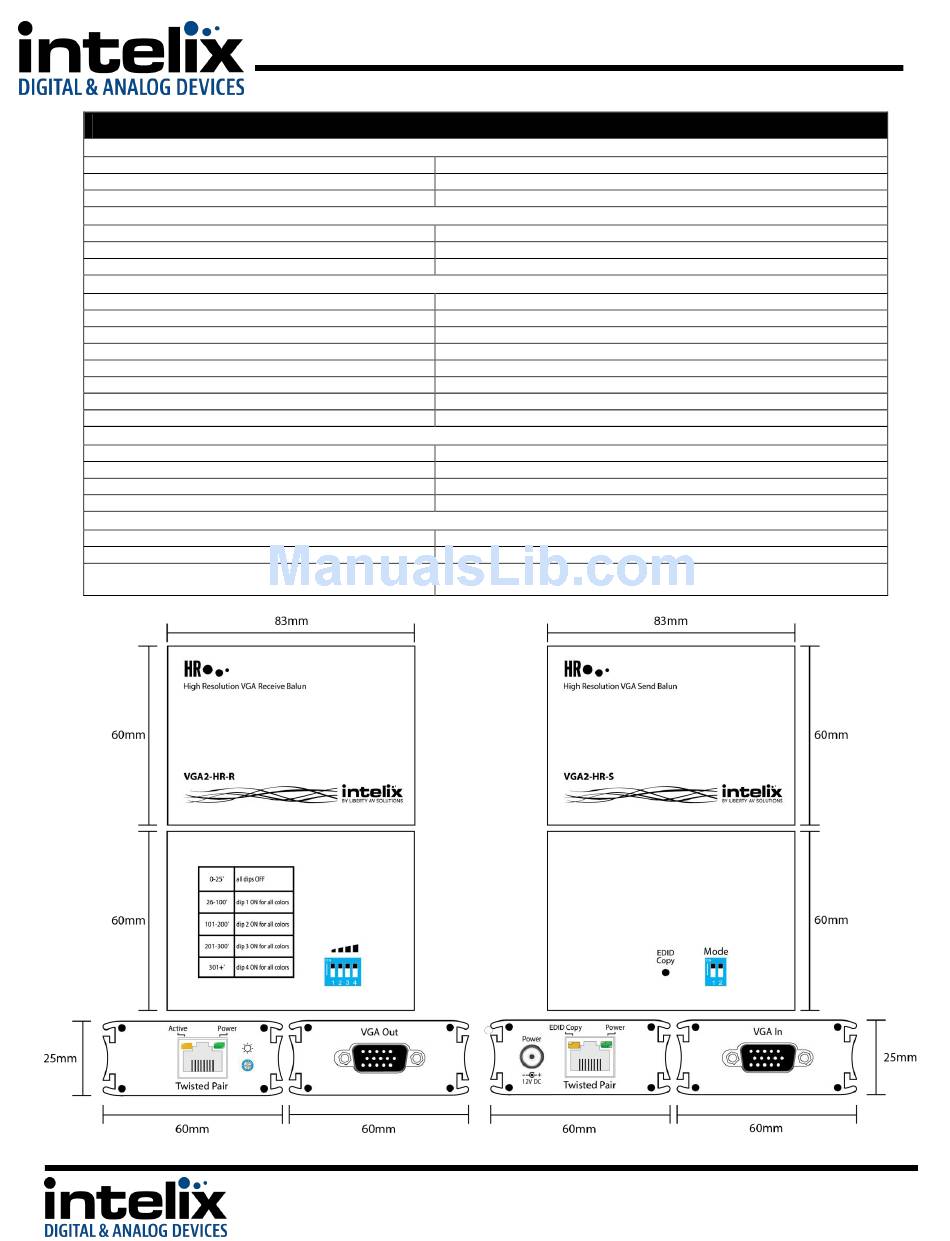

83mm x 60mm x 25mm (3.27 in. x 2.36 in. x 0.98 in.)
0.61kg (1.35 lbs.)
0° to +40° C (+32° to +104° F)
26° C (79° F) (S); 30° C (86° F) (R)
20% to 90%, Non-condensing
-10° to +60° C (+14° to +140° F)
20% to 90%, Non-condensing
2.5 watts
12vDC / 1A
16kV
CE, RoHS
2 Years
Active video signal, EDID copy and power LEDs
VGA cable, Power Supply, Adjustment screwdriver, Mounting brackets and
Installation Guide
