Intelix AVOCat AVO-SVA2-WP Installation Manual

Specifications
Specifications subject to change without notice.
Maximum Distance* 1,000 feet
Maximum Input 1.1 Vp-p
Bandwidth (video) DC to 6 MHz
Bandwidth (audio) 20 Hz to 20 kHz
Impedance (video) 75 ohms
Impedance (audio) 600 ohms minumum
Insertion Loss Less than 2 dB per pair over the frequency range
Return Loss Greater than 15 dB over the frequency range
Common Mode Rejection Greater than 40 dB over the frequency range
Unshielded Twisted Pair Maximum capacitance: 20 pf/foot
Cabling Specifications Impedance: 100 ohms @ 1 MHz
(24 gauge or lower solid Attenuation: 6.6 dB/1000 ft. @ 1 MHz
copper) Cat 5, Cat 5e, Cat 6, Cat 7 compatible
Connectors One (1) female S-Video 4-pin and two (2) RCA to one (1) RJ45
RJ45 Pinout S-Video Luma: 7 & 8, pair 4
S-Video Chroma: 4 & 5, pair 1
Audio 1: 1 & 2, pair 2
Audio 2: 3 & 6, pair 3
Temperature Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
Enclosure Front: standard decora-style wallplate
Rear: metal
Dimensions 4.0" x 1.4" x 1.7"
Weight 0.2 lbs (3.2 oz.)
Ordering Information AVO-SVA2-WP: single AVO-SVA2-WP balun in bulk
packaging
Warranty 2 years
* Distances and picture quality may be affected by cable grade, cable quality, source and
destination equipment, RF and electrical interference, and cable patches. Intelix specifications are
based on straight-through cabling with standard-grade Cat 5.
Contact Information
Intelix
2222 Pleasant View Road
Middleton, WI 53562
Toll-free: 866-4-MATMIX
Phone: 608-831-0880
Fax: 608-831-1833
www.intelix.com
AvoCat

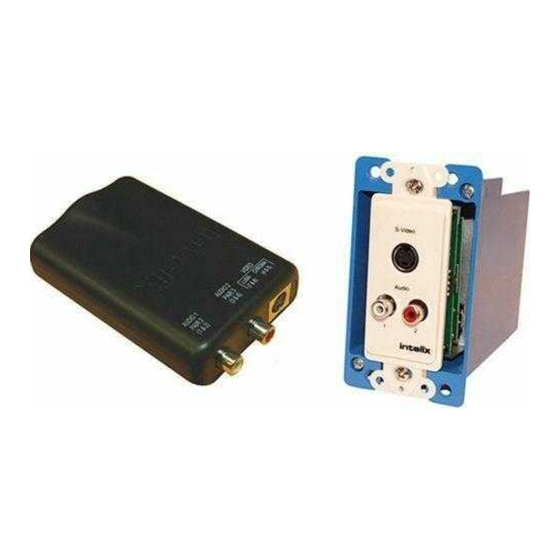

Intelix AVO-SVA2-WP S-Video and Audio Balun
Installation Manual Installation Manual Installation Manual Installation Manual Installation Manual
The Intelix AVO-SVA2-WP wallplate balun transmits an S-Video signal and two
analog audio signals up to 1,000 feet over standard structured cabling, such as
Cat 5. Used in pairs or with the rack-mountable Intelix AVO-SVA2 balun, AVO-
SVA2-WP baluns replace bulky S-Video cable and utilize a building's existing
structured cabling network.
The Intelix AvoCat Series of baluns is the ideal solution for sending audio and
video over structured cabling. When signal quality matters, choose Intelix.
Installation
Caution: Do not attempt to disassemble or alter the balun housing. There are
no user-serviceable parts inside the AVO-SVA2-WP. Modifying the
unit will void your warranty.
To install an AVO-SVA2-WP balun, perform the following steps:
1. Turn off power and disconnect the video equipment by following the
manufacturer'sinstructions.
2. Make certain that outlets and cross connects to which you will connect the AVO-
SVA2-WP are configured properly and labeled appropriately to identify the
circuit.
Caution: Do not connect the AVO-SVA2-WP to a telecommunication outlet
wired to unrelated equipment. Making such a connection may damage
the equipment and/or balun. Please ensure all wiring is "straight-
through."
3. Verify the desired twisted pairs are not being used for other LAN or telephony
equipment.
4. Connect the S-Video and RCA outputs from the source equipment to the AVO-
SVA2-WP. Connect the inputs from the receive device to a second AVO-SVA2-
WP or another compatible Intelix balun, such as the AVO-SVA2.
Caution: Do not mount the balun over equipment ventilation openings.
Covering the openings may cause the equipment to overheat.
5. Connect the two baluns with a structured cable with RJ45 connectors, such as
Cat 5. Verify the cable's pinout conforms to EIA/TIA 568A or 568B pattern
standards.
6. Power on the source and destination equipment and test for correct operation.
