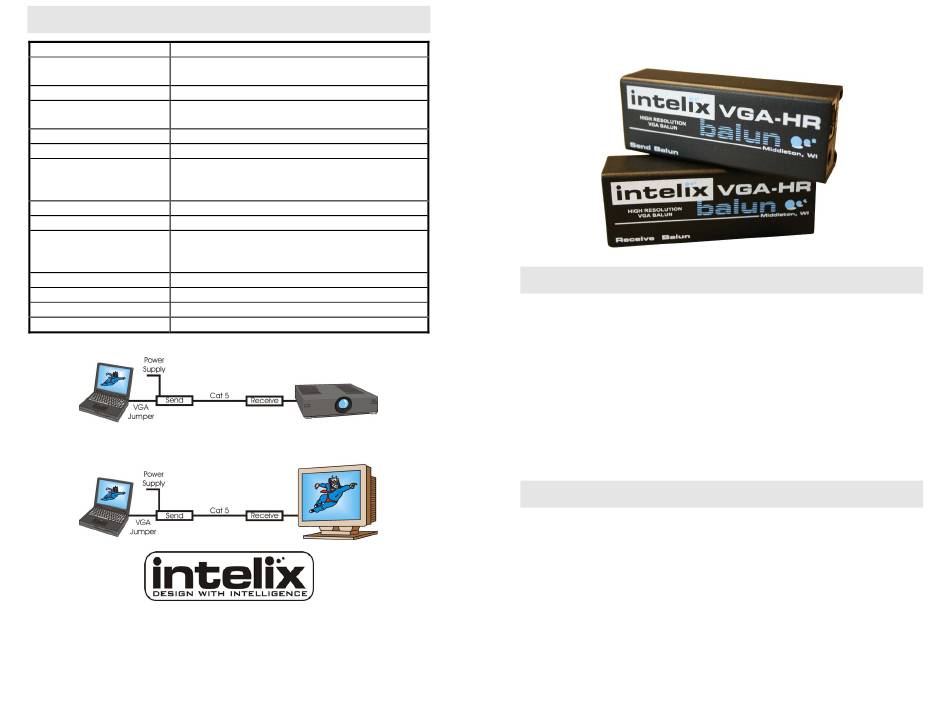

Intelix VGA-HR Installation Manual

Specifications
Environment VGA
Devices VGA monitors, laptops, multimedia projectors,
PCs, flat panel displays
Input Video Signal 1.2 Volts p-p
Video Amplifier 350 MHz
Bandwidth
120 MHz
Actual Bandwidth
Focus 25 to 350 feet
Connectors Video In: HD-15
Video Out: HD-15
Link Connector: RJ45
5 VDC (external)
Power Supply
Power Consumption 1 Amp
Temperature Operating: 0° to 55° C.
Storage: -20° to 85° C.
Humidity: up to 95% non-cond.
Enclosure RF Shielded Metal
Dimensions 1.9"H x 1.6"W x 3.5"D
Shipping Weight 2 lbs
Warranty 2 years
*Specifications subject to change without notice.
2222 Pleasant View Road, Suite #1
Middleton, WI 53562
Tel.: (608) 831-0880
Fax: (608) 831-1833
Toll Free (N.Am): 866-4-MATMIX
E-mail: intelix@intelix.com URL: www.intelix.com
Intelix LLC

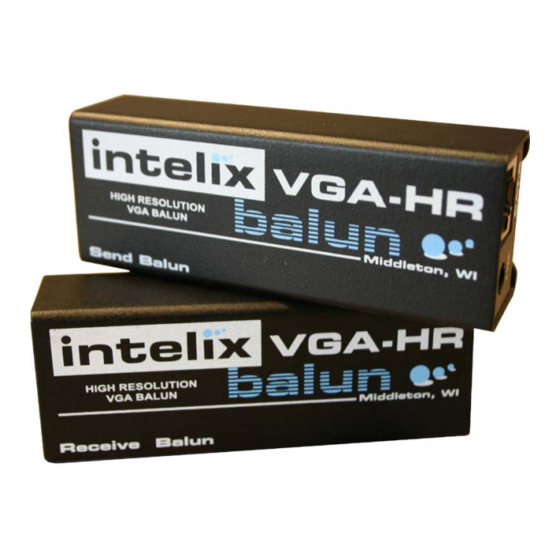

VGA-HR Active VGA Balun
Installation Guide
Introduction
The Intelix VGA-HR Active VGA Balun allows VGA signals to be transmitted up
to 350 feet (UXGA: 1600 x 1200) using standard Cat 5 unshielded twisted pair
cabling.
Features include:
- Up to 350 feet transmission (UXGA: 1600 x 1200)
- RF shielded metal casing
- Included VGA jumper cables and 5 VDC power supply
- Send and receive units
The Intelix VGA-HR is a complete solution for transmitting VGA over Cat 5.
Installation
Before installation, please ensure all necessary components have been included:
- (1) VGA send balun
- (1) VGA receive balun
- (1) 5 VDC power supply
- (1) six foot VGA M-F cable
Note: Please connect all cables between the computer and the VGA-HR baluns
before powering up the unit.
Caution: Do not attempt to open the balun housing. There are no user-serviceable
parts inside the VGA-HR. Opening the unit will void your warranty.
