Intelix VGA2-UHR Installation Manual

VGA2-UHR Installation Guide

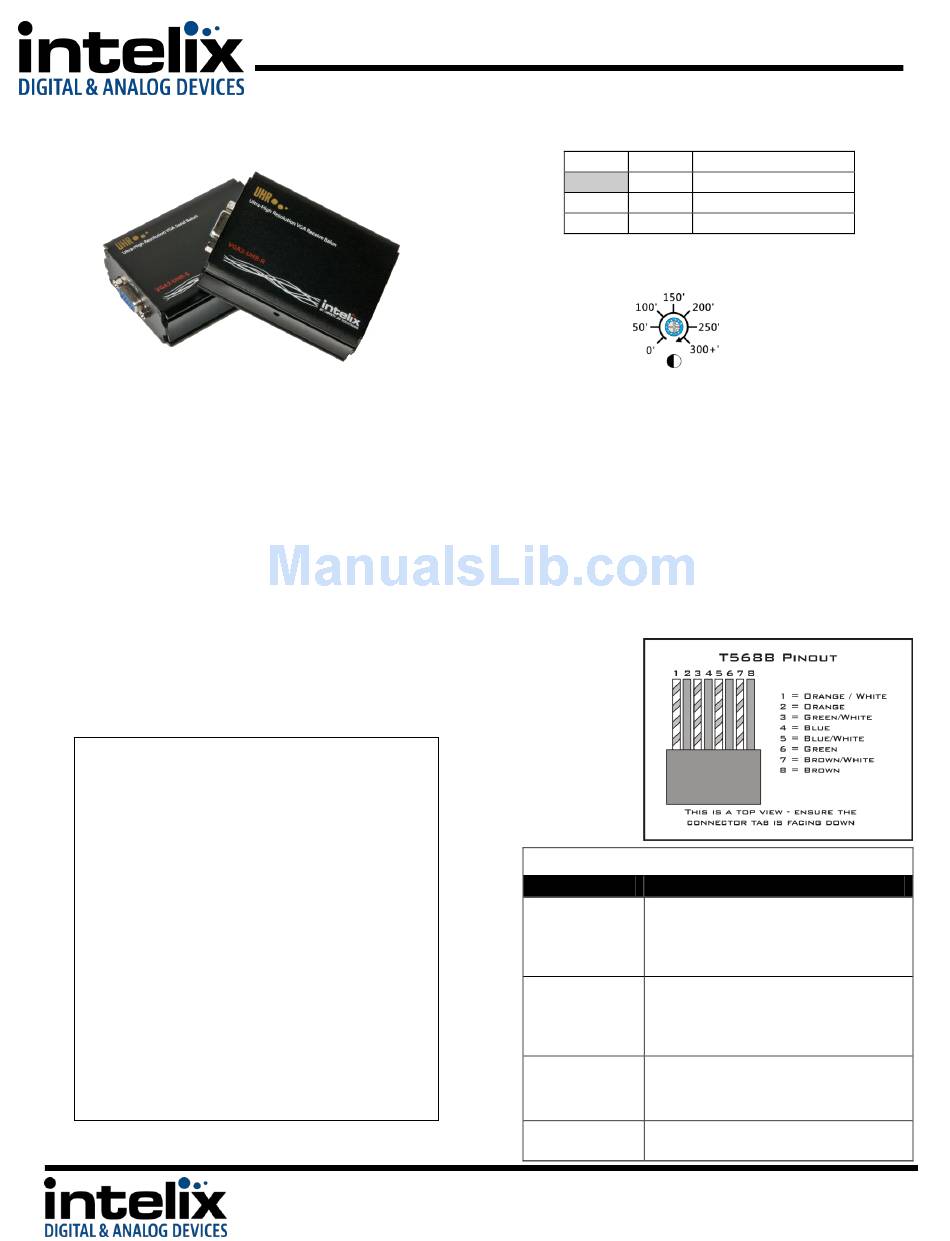

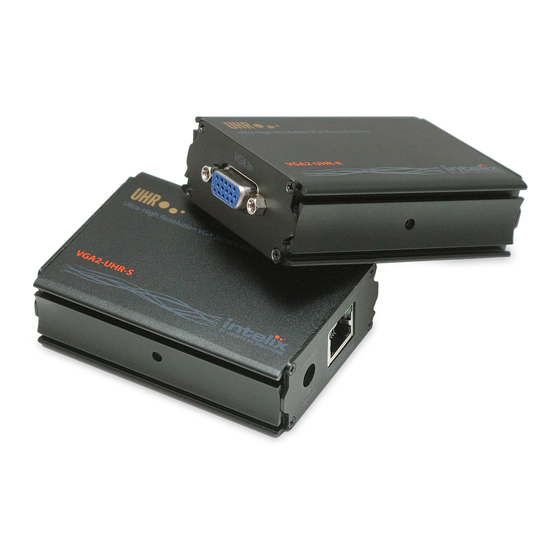

The Intelix VGA2-UHR extends a computer video signal
over a single twisted pair cable. The VGA2-UHR supports
computer video resolutions up to WUXGA (1920 x 1200) to
a maximum distance of 168m (550').
Dipswitches on the Transmit balun allow for Built-in EDID
presets of common resolutions (1024x768 and 1280x800)
and EDID copy mode. In EDID copy mode the Receive
balun transmits the EDID of the remote display back to the
Transmit balun for custom EDID storage.
The Receive balun has trim pots for skew compensation
and brightness.

Installation Instructions

1. Turn off power and disconnect VGA cables
from computer and display.
2. Connect a VGA cable between the display and
the receiver (VGA2-UHR-R).
3. Connect twisted pair cable between the
transmitter (VGA2-UHR-S) and the receiver
(VGA2-UHR-R). Ensure T568B straight-thru
wiring.
4. Connect the included power supply to the
transmitter.
5. Connect a VGA cable between the computer
and the transmitter (VGA2-UHR-S).
6. Power on attached audio/video devices.
Dipswitches
Transmiter (VGA2-UHR-S) – EDID Modes
1
Down
Up
Reciever (VGA2-UHR-R) – Skew Adjustment
Adjust the trim pot to match the length of the UTP.
EDID Copy Instructions
1. Set dipswitch 2 down.
2. Follow "Installation Instructions".
3. Press the EDID copy button.
4. Wait for flashing LED and a "click"
noise. EDID copy is completed.
*Note: The VGA2-UHR will only change EDID
modes after completely disconnecting both
power and VGA cabling.
Twisted Pair
Wiring - Use
T568B wiring for
Cat5e/6
connection
between send
and receive
units.
Symptom
No signal
Active LED is off
No signal
Unusual colors or
blurry video
No EDID copy
8001 Terrace Ave.
Suite #201
Middleton, WI 53562
2 Function Description
Down EDID Copy Mode On
Up 1280 x 800 (WXGA)
Up 1024 x 768 (XGA)

Troubleshooting

Possible Solutions
Verify that both ends of the twisted pair cables use
T568B crimp pattern.
Verify VGA cables and source and destination VGA
ports are operational.
Verify the power supply is connected to the send
balun.
Verify the power LEDs on both the send and
receive units are brightly illuminated.
Adjust for the length of you UTP cable.
Adjust the brightness on the receive balun.
Long cable lengths will cause EDID copy to fail.
Copy the EDID with a short cable then install.
Phone: 608-831-0880
Toll-Free: 866-4-MATMIX
Fax: 608-831-1833
