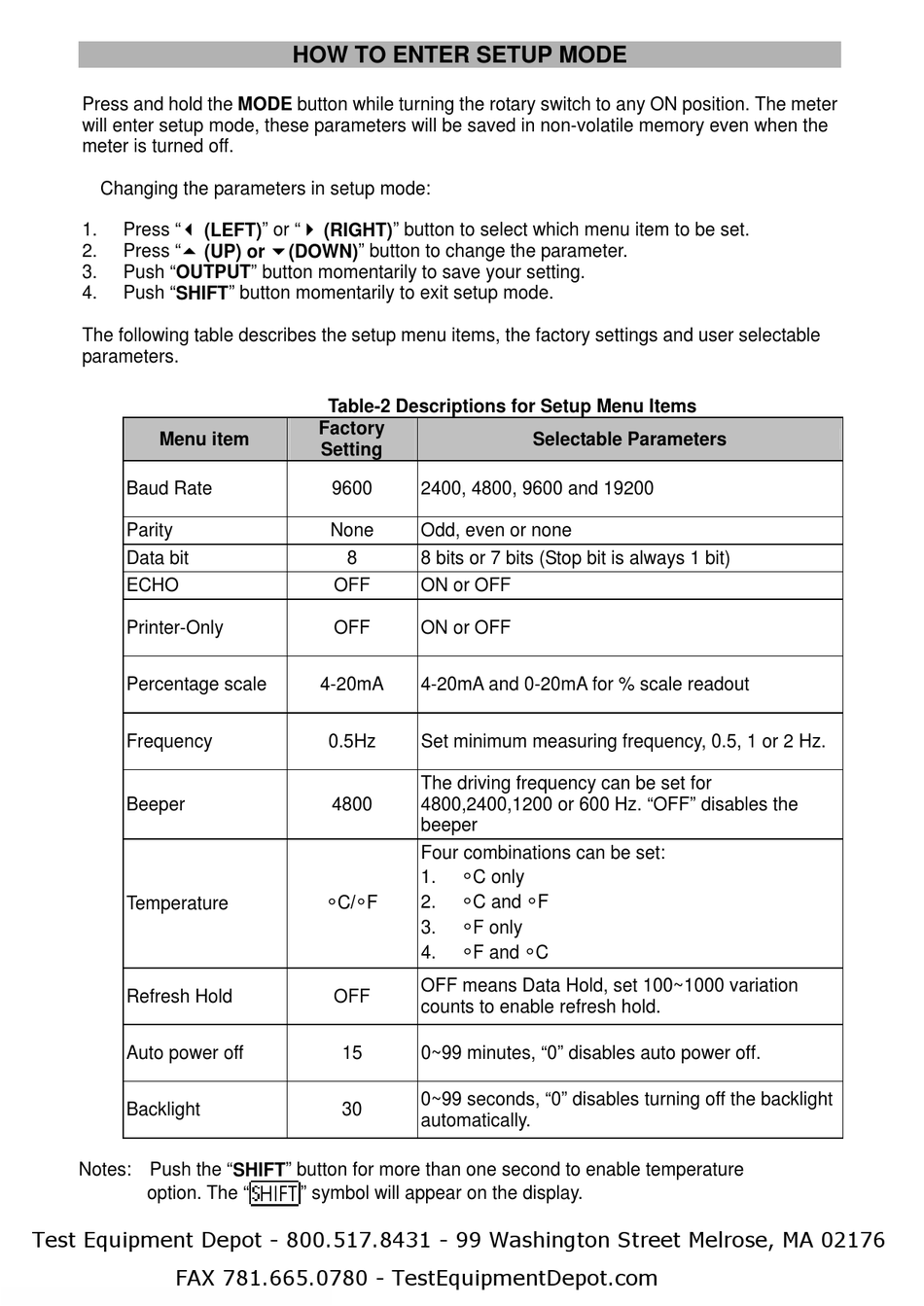

How To Enter Setup Mode - Extech Instruments CMM-17 Quick Start Manual

Press and hold the MODE button while turning the rotary switch to any ON position. The meter
will enter setup mode, these parameters will be saved in non-volatile memory even when the
meter is turned off.
Changing the parameters in setup mode:
Press " 3 (LEFT)" or " 4 (RIGHT)" button to select which menu item to be set.
1.
Press " 5 (UP) or 6 (DOWN)" button to change the parameter.
2.
3. Push "OUTPUT" button momentarily to save your setting.
4. Push "SHIFT" button momentarily to exit setup mode.
The following table describes the setup menu items, the factory settings and user selectable
parameters.
Menu item
Baud Rate
Parity
Data bit
ECHO
Printer-Only
Percentage scale
Frequency
Beeper
Temperature
Refresh Hold
Auto power off
Backlight
Notes: Push the "SHIFT" button for more than one second to enable temperature
option. The "
