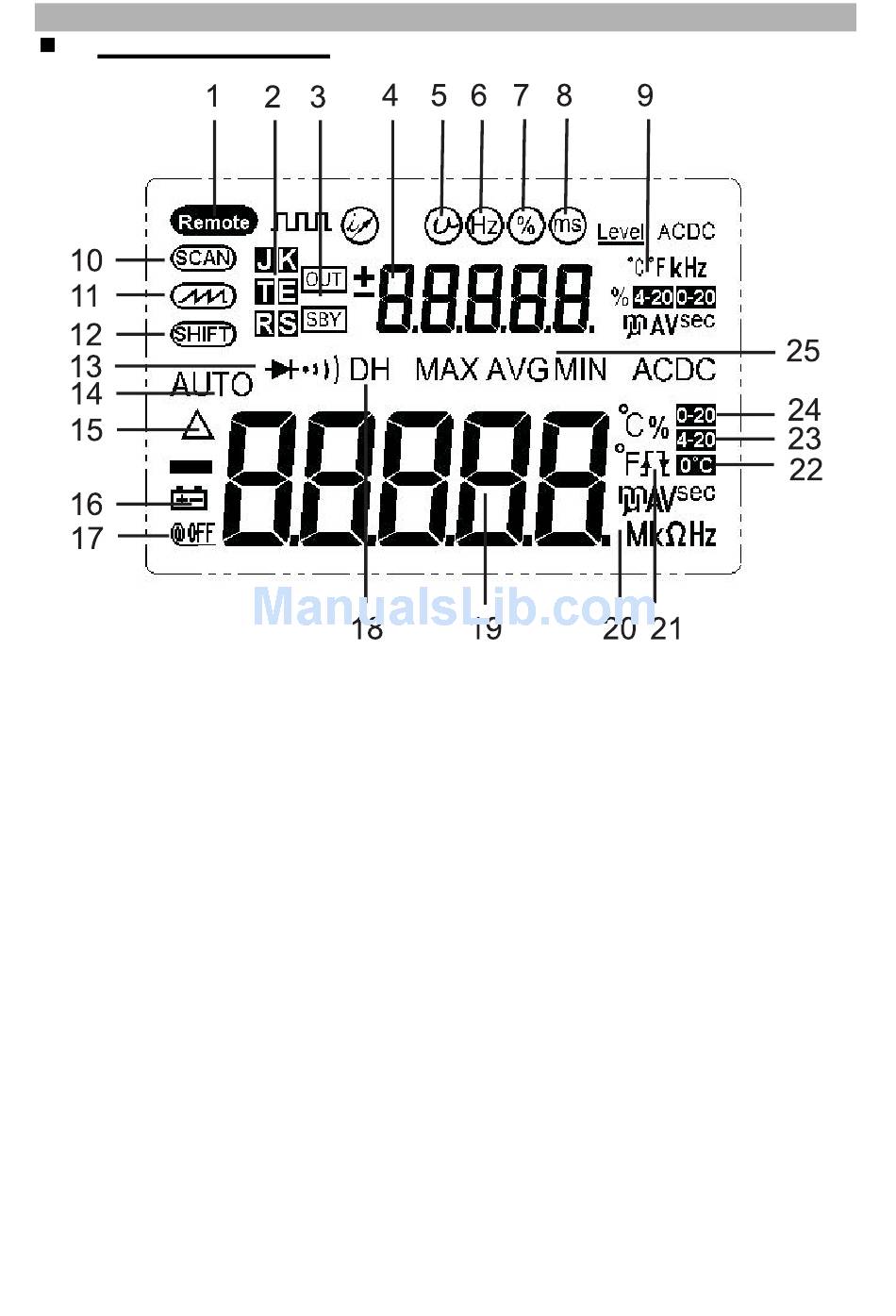

Display Illustration
1.
Remote control
2.
Thermocouple type
3.
Output enable/disable
4.
Secondary display for output and input
5.
Constant voltage output
6.
Square wave output for Hz
7.
Square wave output for %
8.
Square wave output for mS
9.
Output/input units
10. Scan output
11. Ramp output
12. Shift button operation
13. Diode/audible continuity
14. Auto range
15. Relative mode
16. Low battery
17. Auto power off icon
18. Data Hold (manual trigger)
19. Primary display for input
20. Input units
21. Positive/negative trigger slope for % and mS tests
22. Without ambient temperature compensation
23. % 4-20/4-20mA
24. % 0-20/0-20mA
25. Dynamic recording
GETTING STARTED
Figure-3 LCD Display
