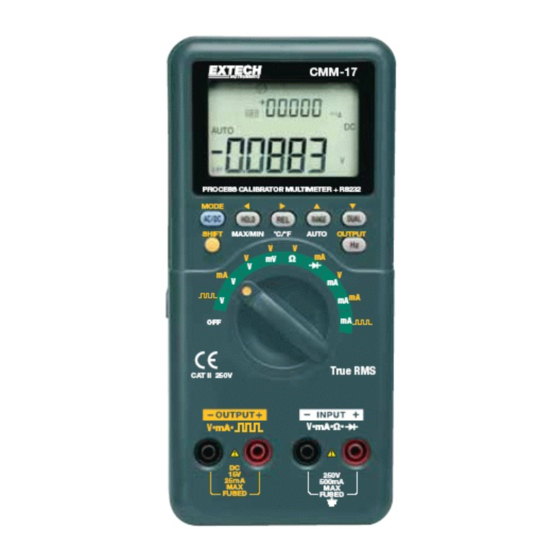

CMM-17 Process Calibrator Multimeter
•
Constant Voltage
•
mA Source
•
Square Wave
•
Auto Scan/Ramp
•
Dual Display Multimeter
•
Rechargeable Batteries
This guide provides an overview of the meter. For more detailed information, refer to the
CMM-17 User's Guide provided with the meter.
ms
Remote
Level ACDC
J K
SCAN
88888
OUT
T E
RS
SBY
SHIFT
MAX AVGMIN ACDC
AUTO
88888
OFF
@
k
Hz
C F
4-20 0-20
µ m
AV
sec
C
0-20
4-20
F
0 C
µ m
µ m
sec
sec
AV
Ù
Mk Hz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Extech Instruments CMM-17
Summary of Contents for Extech Instruments CMM-17

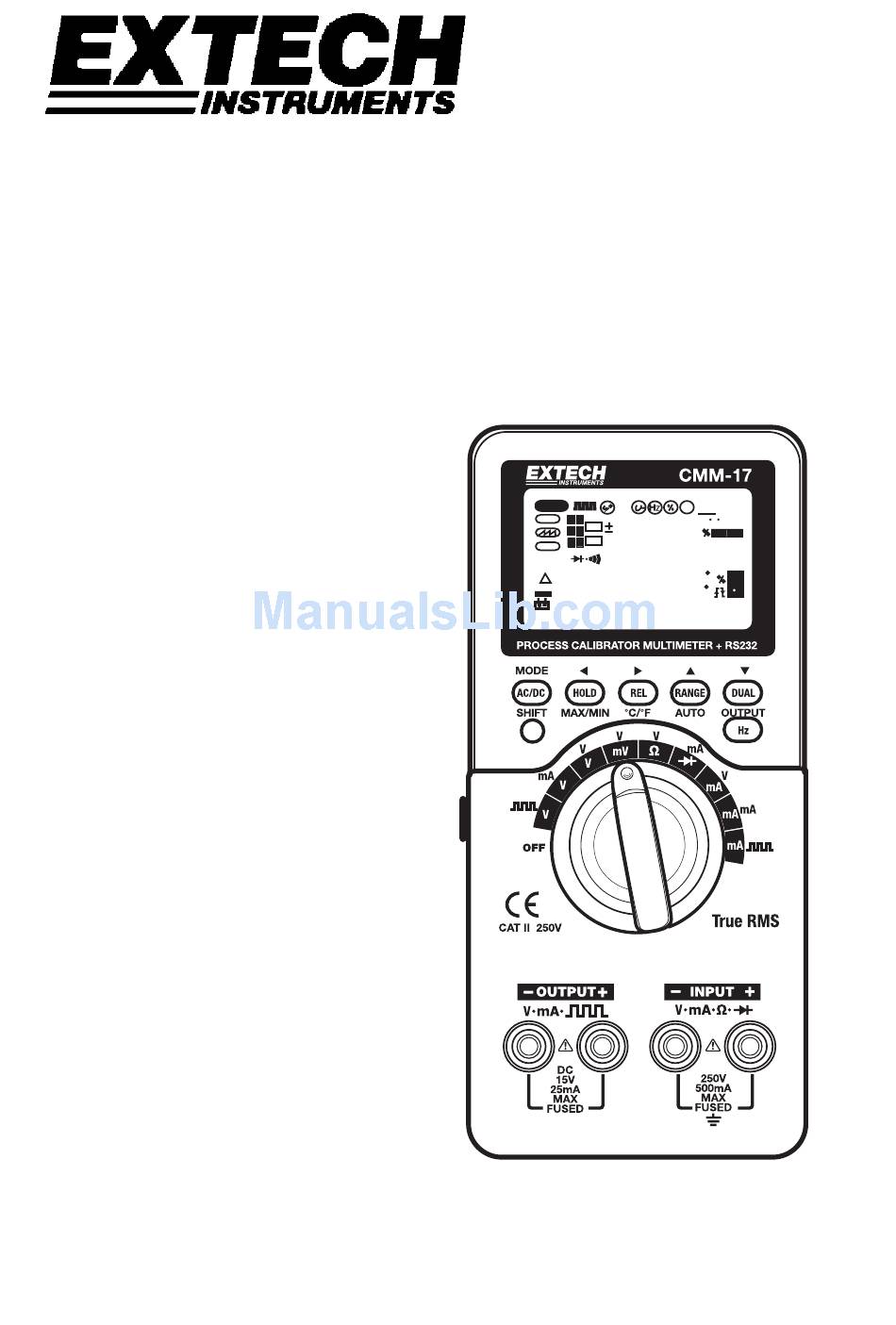

- Page 1 Mk Hz • mA Source • Square Wave • Auto Scan/Ramp • Dual Display Multimeter • Rechargeable Batteries This guide provides an overview of the meter. For more detailed information, refer to the CMM-17 User’s Guide provided with the meter.
-
Page 2: Washington Street
CAT. II 250V standards 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Back to the Extech CMM-17 Product Page Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com... -
Page 3: Safety Information
SAFETY INFORMATION A WARNING identifies conditions and actions that may cause hazard(s) to the user; A CAUTION identifies conditions and actions that may damage this Device. Table-1 International Electrical Symbols AC - Alternating Current DC - Direct Current AC and DC - Alternating and Direct Current Ground Double Insulation See Explanation In The Manual... - Page 4 Setup and Output a process calibration signal WARNING Read "SAFETY INFORMATION" before using this Set the side switch on the left side to the M/S position Turn the function switch to select combined function for the output function required , mA, or V) and related input function will be used simultaneously. Press the “SHIFT”...
- Page 5 INPUT- ACV and Frequency Measurements Set the side switch on the left side to the M or M/S position Turn the rotary switch to select combined function for “V” and the output function ( mA or V) as desired. Press the “AC/DC” button momentarily to select AC voltage measurement. Press the “Dual”...
-
Page 6: Getting Started
GETTING STARTED Display Illustration Figure-3 LCD Display Remote control Thermocouple type Output enable/disable Secondary display for output and input Constant voltage output Square wave output for Hz Square wave output for % Square wave output for mS Output/input units 10. Scan output 11. -
Page 7: Pushbutton Operation
Pushbutton Operation The operation of the push-buttons is shown below. When a button is pressed, a related symbol will be lit, and the beeper will sound. Turning the rotary switch to another position will reset current operation of the push buttons. INPUT BUTTONS REL: Set the value on the display to be subtracted. -
Page 8: Slide Switch
OUTPUT BUTTONS 3 (LEFT)/ 4 (RIGHT): Select which Digits or polarity to be adjusted For voltage and current output, press this button momentarily to select which Digits or polarity to be adjusted. The selected position will flash on the secondary display. ±... -
Page 9: Rotary Switch
50mA and 500 mA Square wave output Output and Input Terminals OUTPUT terminals for Constant INPUT terminals for Voltage, Voltage, Constant Current and Current, Resistance, Diode/ Audible Square wave Output functions Continuity measurements Figure-8 Output/Input Terminals CMM-17 Quick Start V1.2 03/05... -
Page 10: How To Enter Setup Mode
HOW TO ENTER SETUP MODE Press and hold the MODE button while turning the rotary switch to any ON position. The meter will enter setup mode, these parameters will be saved in non-volatile memory even when the meter is turned off. Changing the parameters in setup mode: Press “...
