Summary of Contents for Wincor Nixdorf BA92

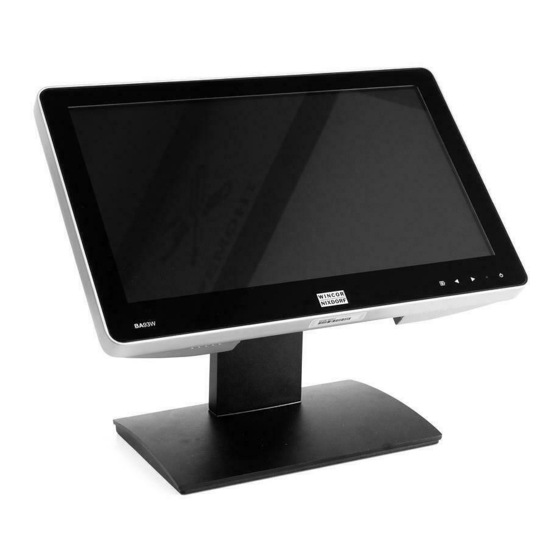

- Page 1 BA92/BA93/BA93W LCD TFT Panel Display User Manual...
- Page 2 Please send us a copy of this page if you have any constructive criticism. We would like to thank you in advance for your comments. With kind regards. Your Opinion: Wincor Nixdorf Pte Ltd Research and Development 151 Lorong Chuan New Tech Park #05-01A/B...
- Page 3 BA92/BA93/BA93W LCD TFT Flat Panel Display User Manual Edition May 2015...
- Page 4 All brand and product names mentioned in this document are trademarks of their respective owners. Copyright © Wincor Nixdorf International GmbH, 2013 The reproduction, transmission or use of this document or its contents is not permitted without express authority. Offenders will be liable for damages.
-
Page 5: Table Of Contents
Introduction ................... 5 From Point-of-Sale To Point-of-Service ..........5 Features at a Glance ............... 6 About This Manual................6 Display Overview ................7 BA92 ....................7 BA93 ....................7 BA93W ................... 8 Touch screen per model ..............8 User Interfaces ................9 Front panel .................. - Page 6 Cleaning Instruction ............. 21 Waiter Lock .................. 21 How To Operate ..............21 Cleaning Instruction ............. 21 RFID/NFC Reader ................22 How to operate ..............22 Cleaning Instruction ............. 22 Mounting Peripherals ..............23 Magnetic Swipe Card Reader, Waiter Lock and RFID/NFC Reader ..............
-
Page 7: Manufacturer's Declaration And Approval
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful inter- ference, and (2) this device must accept any interference, including inter- ference that may cause undesired operation. BA92/BA93/BA93W User Manual... -
Page 8: Tested Safety
Tested Safety The BA92/BA93/BA93W have been awarded the cUL- and UL- symbol. Energy Star The BA92/BA93/BA93W have been awarded the ENERGY STAR symbol. User Information Repair work on the devices should only be carried out by authorized and specially trained personnel. - Page 9 BEETLE or PC should be removed, and the Wincor Nixdorf customer service should be contacted. If the LCD display element is broken and the liquid crystal solution leaks out of the display and onto your hands, clothing etc., wash your hands or clothing immediately with soap or...
-
Page 10: Instructions For Maintenance
Also switch your display off when you take a longer break or finish your work. There are still some parts that are not reusable. Wincor Nixdorf guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified pursuant to ISO 9001 and ISO 14001. -
Page 11: Introduction
Equipped with a sleek modern bezel free design and robust aluminum housing, the BA9x features projected capacitive (BA92, BA93 and BA93W) or resistive (BA92 and BA93) touch technology. There is also a non-touch version available for the BA92 and BA93. -
Page 12: Features At A Glance
BA9x. Same parts of this book require familiarity and experience in working with operating systems and installation and configuration procedures. Notes in the manual are marked by this symbol. This symbol is used for warnings. BA92/BA93/BA93W User Manual... -
Page 13: Display Overview
Application programs should use this resolution. BA93 The TFT LCD flat panel display is a 15-inch flat panel display which is absolutely flicker-free. lt is designed for a resolution of max. 1024 x 768 pixel. Application programs should use this resolution. BA92/BA93/BA93W User Manual... -
Page 14: Ba93W
BA93 15” No Touch, Protective Glass BA93/r-touch 15” Resistive Touch BA93/pc-touch 15” Projected Capacitive Touch BA93W/pc-touch 15.6” Projected Capacitive Touch * This model is not a standard option and will be offered on a project basis only. BA92/BA93/BA93W User Manual... -
Page 15: User Interfaces
LED lights in the standby mode Out of Range ON/OFF Button With this button you can switch the display on or off. The optional devices supported by the USB HUB are electric powered. Only the data transfer is separated. BA92/BA93/BA93W User Manual... -
Page 16: Connector Panel
When the BA92/BA93/BA93W is connected to a BEETLE- system, the but- ton also switches the system on or off, provided that the system supports the feature. OSD and power button Lock/Unlock There are two possible methods: Hardware method When there is no active OSD Menu, press-and-hold Menu button for more than 6 seconds to lock/unlock the OSD function. -
Page 17: Integrated Loudspeaker
Only UL Listed LPS (Limited Power Source) power supplies can be used. By connecting the system's cable the screen will be switched on. Integrated Loudspeaker The integrated loudspeaker is located at the bottom side of the screen. BA92/BA93/BA93W User Manual... -
Page 18: On Screen Display (Osd)
OSD to time-out (saves changes and exit). The adjustments will be saved in each way. There are a number of parameters that can be set via the OSD menu. Please refer to the table on the next page for details. BA92/BA93/BA93W User Manual... -
Page 19: Parameters Set Via The Osd Menu
Sharpness Upgrades the contour of a blurred text by a lower solution. OSD Time Out Adjustment of time interval (scale from 1 up to 16 seconds) for displaying the OSD. Exit Sub-Menu Back to OSD-Menu BA92/BA93/BA93W User Manual... - Page 20 The USB Hub can be enabled/disabled during standby RMT function provided thru PLINK2 option can be enabled/disabled Exit Sub-Menu Back to OSD-Menu Exit OSD-Menu End OSD-Menu Note: Selection available up to Firmware ver 2.0x. Selection available from Firmware ver 2.10 onwards. BA92/BA93/BA93W User Manual...
-
Page 21: Osd Features
Monitor brightness will increase when ambient lighting is brighter, and decrease when ambient lighting gets dimmer. Note: While Ambient Light Sensor is enabled, user setting (manual setting) for Brightness in OSD Menu will be disabled. BA92/BA93/BA93W User Manual... -
Page 22: Presence Sensor
During presence non-detect, brightness will be set to lowest regardless of ALS setting. During presence detect, brightness will be set according to user setting if ALS is OFF. Else if ALS is ON, ALS will take over the brightness control. BA92/BA93/BA93W User Manual... -
Page 23: Touch Technologies
With a circular motion of the fingers the element on the dis- play can be rotated. This function must be supported by either the operating system or by the application. BA92/BA93/BA93W User Manual... -
Page 24: Cleaning Instructions
Because the controller derives both the “X” and “Y” touch coordinates from the stable glass layer, the accuracy and operation of the touch screen is unaffected by damage to the top sheet caused by extended use or neglect. BA92/BA93/BA93W User Manual... -
Page 25: Construction Of The Resistive Touch Screen
Use a soft, fine-meshed cloth to clean the surface. Dampen the cloth slightly and then clean the screen. A wrong maintenance may cause damages to the screen, which are not covered by guarantee or warranty. BA92/BA93/BA93W User Manual... -
Page 26: Modular Options
Swipe cards should not be allowed to come into close contact with a magnetic field. Swipe cards should only be inserted in the top of the specially designed slit of the reading device. If the card is inserted in another place, this could damage the reading head. BA92/BA93/BA93W User Manual... -
Page 27: Cleaning Instruction
In order to guarantee good reading results, the swipe card reader should be cleaned from time to time. This is carried out by using a special cleaning card that can be purchased from Wincor Nixdorf. Waiter Lock Each transaction is correctly assigned to the person- nel by using the magnetic key. -
Page 28: Rfid/Nfc Reader
For guide on software application programming, please refer to BA9x RFID/NFC Reader Programming Manual. For DFU Driver installation, please refer to the BA9x RFID/NFC Reader In- stallation Manual. BA92/BA93/BA93W User Manual... -
Page 29: Mounting Peripherals
The cable is for the left mounting position (seen from the front). Magnetic Swipe Waiter Lock RFID/NFC Reader Card Reader with with holder, cable with holder, cable holder, cable and and two screws and two screws two screws BA92/BA93/BA93W User Manual... -
Page 30: Mounting On The Right Side (Seen From The Front)
3. Remove right side cover at the back of the display, exposing one end of a connecting cable. 4. Release the catch on one side of the peripheral’s holder. 5. Remove the back cover of the holder. BA92/BA93/BA93W User Manual... - Page 31 8. Use the two screws sup- plied to secure the holder to the display. 9. Place in the back cover of the peripheral. The mounting is complete. BA92/BA93/BA93W User Manual...
-
Page 32: Mounting On The Left Side (Seen From The Front)
3. Remove left side cover at the back of the display. 4. Route in the supplied ca- ble as shown. 5. Release the two catches on the side of the periph- eral’s holder. BA92/BA93/BA93W User Manual... - Page 33 7. Locate the holder to the side of the display uncov- ered in step 3. 8. Route the connecting cable mentioned in step 3, into the holder and con- nect to the connector on the holder BA92/BA93/BA93W User Manual...
- Page 34 9. Use the two screws sup- plied to secure the holder to the display. 10. Place in the back cover of the peripheral. The mounting is complete. BA92/BA93/BA93W User Manual...
-
Page 35: Initial Setup
Wincor Nixdorf sales outlet. Transport the device only in its original packaging (to protect it against impact and shock). - Page 36 To avoid damage to the back cover of the stand, be careful of how you would remove it. ✔ ✘ ✘ BA92/BA93/BA93W User Manual...
- Page 37 4. Remove the cable cover at the bottom of the display. 5. Plug in cable. 6. Place back the cable cover at the bottom of the display. 7. Pull the cable through the open- ing of the cable cover. BA92/BA93/BA93W User Manual...
-
Page 38: Installing The Stand
Installing the stand 1. Bring the display into a posi- tion above the stand. 2. Locate the screws (that were previously tightened halfway through) to the four holes on the frame of the stand. BA92/BA93/BA93W User Manual... - Page 39 3. Tighten the four Torx screws to secure the display to the stand. 4. Place in the VESA cover. BA92/BA93/BA93W User Manual...
- Page 40 5. Place in the back cover, routing the cable through the bottom. 6. Place in the base cover. The installation is complete. When uninstalling the stand always make sure that all cables are disconnected. BA92/BA93/BA93W User Manual...
-
Page 41: Connecting The Display
Before connecting cables switch off the system and disconnect it from the main supply. For display mounted on a stand 1. Push down the cable cover to release it and slide it out of the guide (see arrows). The connector panel is now accessible. BA92/BA93/BA93W User Manual... - Page 42 Make sure that cables that are not secured by a lock, are loosely inserted into the strain relief. 3. Replace the cable cover. 4. Remove the small cover on the cable cover. 5. Pull out the cable through the opening. BA92/BA93/BA93W User Manual...
-
Page 43: For Display Mounted On A On Pole
For display mounted on a on pole Pole Mount “bottom mounted” 1. Push down the cable cover to release it and slide it out of the guide (see arrows). The connector panel is now accessible. BA92/BA93/BA93W User Manual... - Page 44 USB-B) and connect the plug. Make sure that cables that are not secured by a lock, are loosely inserted into the strain relief. 3. Insert the lower hooks into the designated position (see arrows). BA92/BA93/BA93W User Manual...
- Page 45 4. Fix the holder with two screws. Pole Mount with VESA Pole Mount 1. Push the cable cover to release it and slide it out of the guide (see arrows). The connector panel is now accessible. strain relief BA92/BA93/BA93W User Manual...
- Page 46 USB-B) and connect the plug. Make sure that cables are not secured by a lock, are loosely inserted into the strain relief. 3. Slide in the cable cover. Ensure that it catches at the sides (see arrows). BA92/BA93/BA93W User Manual...
- Page 47 4. Fix the VESA 100 holder with four screws. The installation of the VESA 100 pole mount is complete. BA92/BA93/BA93W User Manual...
-
Page 48: Ergonomic Terminal Workplace
Position the screen within a 0° preferred and permit ted 40° range of vision, so that you can look vertically onto the 30° screen. 30° preferred range of vision BA92/BA93/BA93W User Manual... -
Page 49: Technical Data
310 cd/ m 270 cd/m Brightness Resistive 335 cd/ m 260 cd/ m Non-Touch 400 cd/ m 310 cd/ m Backlight Power Typical 9.85 W 11.95 W 14.60 W Consumption Maximum 10.50 W 12.80 W 15.50 W BA92/BA93/BA93W User Manual... -
Page 50: Dimensions (Mm)
Dimensions (mm) BA92 BA92/BA93/BA93W User Manual... - Page 51 BA93 BA92/BA93/BA93W User Manual...
- Page 52 BA93W BA92/BA93/BA93W User Manual...
-
Page 53: Projected Capacitive Touch Screen
Waiter Lock (iButton) Module Power supply USB Bus powered Connection USB 2.0 Protocol HID 1.1 (Human Interface Device) Device supported Olitronic GmbH magnetic key, 99-L- 01 (DS1990A) Physical Interface 1-Wire, serial HeightxWidth(Screen mounted)xDepth 125x36x34 mm Weight approx. 107 g BA92/BA93/BA93W User Manual... -
Page 54: Rfid/Nfc Module
0 º C to 40 º C Device Firmware Upgrade Firmware upgradable via DFU interface Middleware support JavaPOS 1.13 Operating Sytems Windows 7, Linux Certification CE & FCC Heightx Width(Screen mounted)xDepth 125x36x34 mm Weight Approx. 102 g BA92/BA93/BA93W User Manual... -
Page 55: Supported Resolution
37.9 kHz Positive 60.3 Hz Positive 1024 x 768 60Hz 48.4 kHz Negative 60.0 Hz Negative 1280 x 720 60Hz 44.8 kHz Negative 59.9 Hz Positive WXGA ** 1360 x 768 60Hz 47.7 kHz Positive 60.0 Hz Positive BA92/BA93/BA93W User Manual... -
Page 56: Abbreviation Index
Super Video Graphics Array Swedish confederation of professional employees Thin Film Transistor Technology (LCD Technology) Universal Serial Bus Underwriters Laboratory (standards) Verband Deutscher Elektrotechniker (German Electricians Association) VESA Video Electronics Standard Association Video Graphics Array Extended Graphics Array BA92/BA93/BA93W User Manual... - Page 57 Wincor Nixdorf Pte Ltd 151 Lorong Chuan New Tech Park #05-01A/B Singapore 556741 Order No. / Bestell-Nr.: 01750256092E...
