Summary of Contents for Wincor Nixdorf BA80

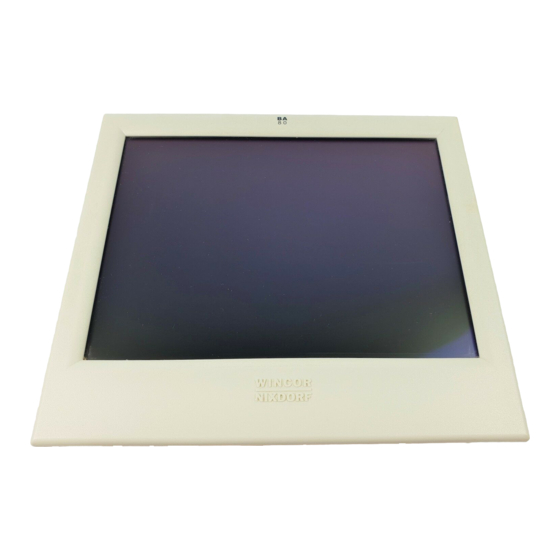

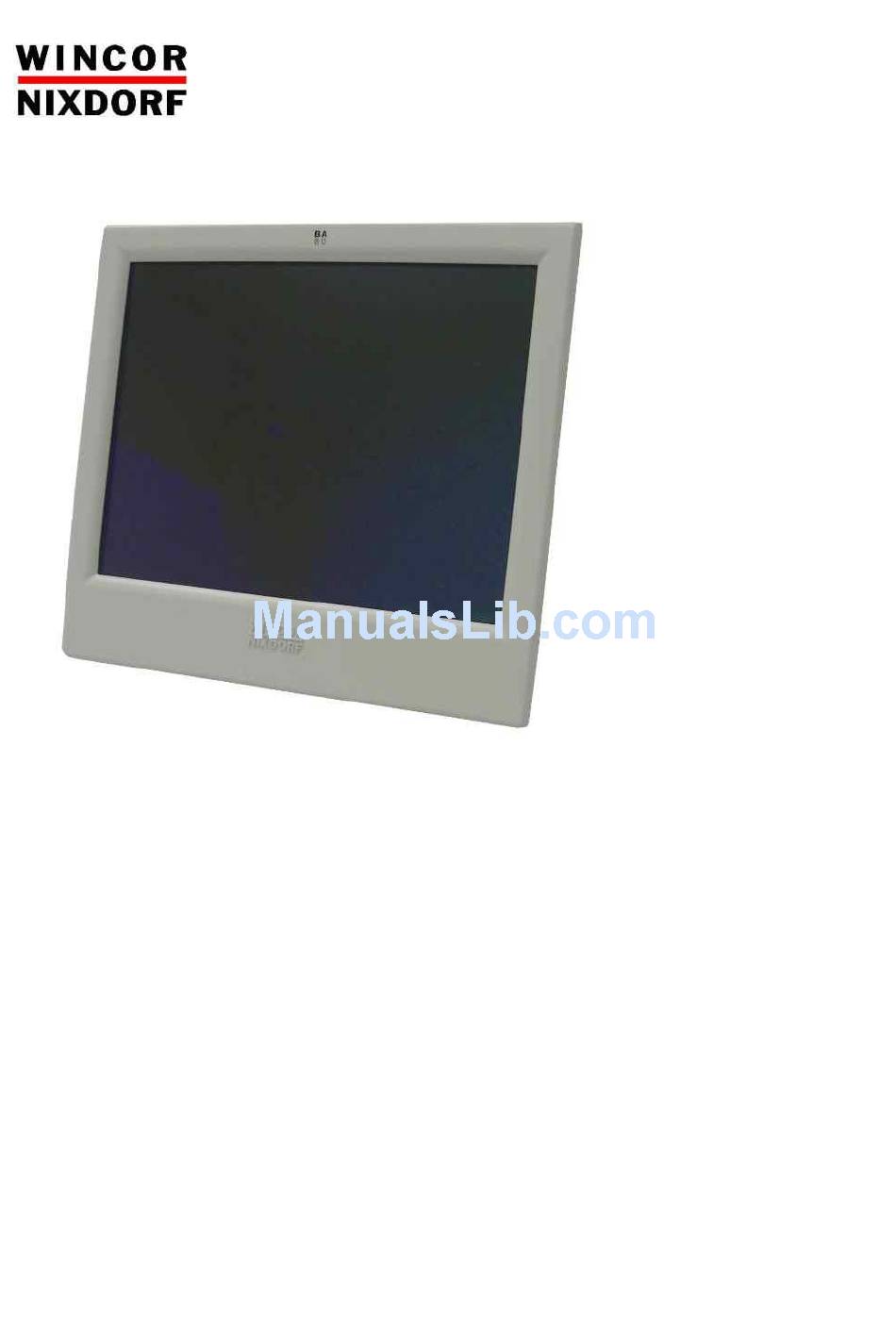

- Page 1 BA80 8.4" TFT LCD Monitor Operating Manual...
- Page 2 Please send us a copy of this page if you have any constructive criticism. We would like to thank you in advance for your comments. With kind regards, Your opinion: Wincor Nixdorf International GmbH Documentation RD HWD01 Rohrdamm 7 D-13629 Berlin E-Mail: retail.documentation@wincor-nixdorf.com...
- Page 3 BA80 8.4” (21,3 cm) TFT LCD Monitor Operating Manual Edition December 2011...
- Page 4 All brand and product names mentioned in this document are trademarks of their respective owners. Copyright © Wincor Nixdorf International GmbH, 2011 The reproduction, transmission or use of this document or its contents is not permitted without express authority. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved.
-
Page 5: Table Of Contents
Dual Display Holder (optional) ................. 8 Mounting the Tube Adapter................9 Installing the Base..................10 Table Mounting..................13 Ergonomical Adjustment of the BA80............. 14 Installation ....................15 Connecting the VGA cable................15 DC12V INPUT....................15 Push Buttons at the Bottom Side ..............16 Status LED Information .................. - Page 6 User Preset ....................23 OSD ....................... 24 H.Position ....................24 V.Position ....................25 OSD Timeout..................... 25 Language....................... 26 Recall......................26 Color Recall....................27 Recall All ....................27 Miscellaneous ....................28 Sharpness ....................28 Display Information..................29 EXIT....................... 29 Technical Data ..................... 30 Dimensions ....................
-
Page 7: Manufacturer's Declaration And Approval
Cet appareil numerique de la classe A est conforme à la norme NMB-003 du Canada. Tested Safety The BA80 has been awarded the symbol of CCC (China Compulsory Certification). The BA80 has also received the BSMI (Bureau of Standards, Metrology and Inspection) symbol. -
Page 8: User Information
Extension boards with electro statically endangered components can be identified with this label. A certain room lighting is required, if the BA80 is also to be used as an office terminal. Daylight has proved to be the best.The brightness of the surrounding area and brightness of the display screen should approximate. -
Page 9: Cleaning The Ba80
In case of emergencies (e.g. damaged housing, liquid or foreign objects getting into the device), the device should be switched off immediately, the mains plug of the BEETLE or the BA80 should be removed, and the Wincor Nixdorf customer service should be contacted. -
Page 10: Recycling
Wincor Nixdorf guarantees the environmentally safe disposal of these parts in a Recycling Centre, which is certified pursuant to ISO 9001. So don’t simply throw your BA80 on the scrap heap when it has served its time, but take advantage of the environmentally smart up-to-date recycling... -
Page 11: Introduction
Introduction The ergonomic and user friendly flat-panel display BA80 can be applied in all trade market segments like specialist retailers, departmental stores, self- service stores, petrol stations or in restaurants. There is indeed a great deal of scope for implementing a BA80. -
Page 12: Contents
VGA cable (1,8 m). VGA cables of 3 m or 5 m length, cables for connecting DVI-I and VGA and the required controller and data cables can be ordered separately. If damage has occurred during shipping or if the package contents do not match the delivery note, promptly inform your Wincor Nixdorf sales outlet. -
Page 13: Ba80 Components
TFT-LCD colour screen. The TFT LCD flat screen is an VGA 8.4” (21,3 cm) that is flicker-free and free of radiation and has only a low heat emission. The BA80 has a native resolution of 800 x 600 pixels. WARNING:... -
Page 14: Dual Display Holder (Optional)
The holder is screwed to a main display (BA82 or BA83) via a hanging (VESA), while the main display is placed on a foot. The second display (here the BA80) is to be hinged and fixed with screws (see installation manual BA8x, «Dual Display Holder»). -
Page 15: Mounting The Tube Adapter
For the mounting you need a Phillips head screwdriver for fixing and loosening/removing the screws. Loosen four screws at the rear side of the BA80 and put them aside. Mount the tube adapter on the rear side of the BA80 and fix it with the previously removed screws. -
Page 16: Installing The Base
Put the display with the adapter on the preinstalled tube (1) and fix it with the screw (2). Installing the Base Take the base and the screen out of the packaging. For installation you do not need any tool to loosen and tighten the screws! To loosen the screws, you may use a coin. - Page 17 Remove the four screws at the rear side of the BA80. Move the bezel out of the guidance of the screen ele- ment. Plug the connector cables. Slide the bezel on again. Install the back panel with four of the delivered screws.
- Page 18 Mind the cable laying. If you are operating the BA80 with a base the handling of the OSD menu buttons (cf. page 17) might be difficult. So, set your preferred OSD values either before mounting the base or remove the BA80 from the base, thus...
-
Page 19: Table Mounting
Table Mounting There are two holes in the BA80 stand (see arrows). The holes can be used to fix the stand on the footprint with appropriated screws. We recommend using screws with a diameter of 4.0 to 5.0 mm. Make sure that the screw type is suitable for the footprint material. -
Page 20: Ergonomical Adjustment Of The Ba80
Ergonomical Adjustment of the BA80 Please observe the following when setting up your terminal workplace: Avoid direct glaring and re- flective glaring. For this display a special luminous environment is recommended. Install the device with a viewing direction that is parallel to the windows. -
Page 21: Installation
DC12V INPUT VGA Connector DC12V INPUT Use the “DC 12V INPUT” cable connection for the power supply of the BA80 via a PSU or via a POS system. You can order Power Supply Units and the appropriate cables at Wincor Nixdorf. -
Page 22: Push Buttons At The Bottom Side
Push Buttons at the Bottom Side Auto Menu (Monitor button) Status LED Information Find the LED is at the bottom side of the monitor. Power On/Off- button Function Display Power ON LED is on Power OFF LED is off No signal The light goes on for 2 seconds and off for one second alternately... -
Page 23: On Screen Display (Osd)
On Screen Display (OSD) The menu of the On Screen Display offers the opportunity to change the pre- set values of the monitor such as brightness, color settings or language to a user defined definition and store them. Via menu buttons you can navigate and select. -
Page 24: Main Menu
Main Menu After starting the OSD the main menu functions will been shown. Auto Adjust Select the auto adjust function by pressing the according button and confirm it by aditionally pressing the menu/select button. The position of the display content will be automatically determined. Luminance Menu to change the predefined values of brightness and contrast. -
Page 25: Submenu Luminance (Brightness)
Submenu Luminance (Brightness) Adjustment by hand. Standard: 90 If the value is set too high, bright surfaces can not be distinguished from very bright surfaces. -
Page 26: Submenu Luminance (Contrast)
Submenu Luminance (Contrast) Adjustment by hand Standard: 90 If the contrast is set too low, the maximum brightness will not be achieved. If contrast is set too high, bright colors can not be distin- guished. Geometry Menu to change the predefined values of screen content position, the pixel clock and the phase. -
Page 27: H.position
H.Position You can shift the horizontal position of the screen contents to the right or to the left. Standard: 51 V.Position You can shift the vertical position of the screen contents upwards or down- wards. Standard: 50... -
Page 28: Pixel Clock
Pixel Clock Menu for adjusting the pixel frequency of the video converter analogue to the lock rate of the video input. Standard: 49 Phase Menu for the adjustment of the exact sampling time within the pixel. Standard: 83... -
Page 29: Color
Color Chose a convenient and ideal display presentation with the settings of the luminance together with the settings for the color. There are three defined settings for the color temperature (measured in Kelvin, K). Choose the value 9300 K for an environment with neon light or daylight. -
Page 30: Osd
The OSD menu gives you the opportunity to set the screen location of the OSD frame and the displaying duration time. H.Position Adjust OSD frame’s horizontal location Adjustment by hand. -
Page 31: V.position
V.Position Adjust OSD frame’s vertical location Adjustment by hand. OSD Timeout For adjusting the time interval (1 to 60 seconds) for displaying the OSD. With time elapsed OSD will be closed automatically. Adjustment by hand. -
Page 32: Language
Language The OSD can be displayed in seven different languages. The default setting is “English”. There is a choice between a traditional or a simplified Chinese font. Take your choice. Recall This menu together with the two submenus can recall the ex works settings. -
Page 33: Color Recall
Color Recall The menu initializes the colour settings to the default values. Recall All With this menu you can simultaneously initialize all settings to the default values. -
Page 34: Miscellaneous
Miscellaneous Menu to adjust the display sharpness and to call up display information. Sharpness Sharpness preserves the eyes. An optimal display presentation must have a efficient sharpness to avoid eyes overstress and a fast eyestrain. Choose a value convenient for yourself. The pre-set value “3”... -
Page 35: Display Information
Display Information Find here information about the installed display solution (pixel) and the refresh rate (Hz). EXIT This function immediately ends the OSD. When time elapsed the predefined OSD time interval the OSD will be closed automatically. -
Page 36: Technical Data
Technical Data Model BA80 Cabinet color Light Grey or Black Display size 8.4" Dimensions (W x H x D in mm) 200 x 180 x 36.4 Active Area 170.4 * 127.8 mm Optimal Resolution 800 * 600 Color Arrangement RGB-stripe Brightness typ. -
Page 37: Dimensions
Dimensions Indications in mm... - Page 38 With Base...
- Page 39 With Tube Adapter...
- Page 40 Wincor Nixdorf International GmbH D-33094 Paderborn Order No.: 01750215139C...
