Summary of Contents for Wincor Nixdorf BA73R

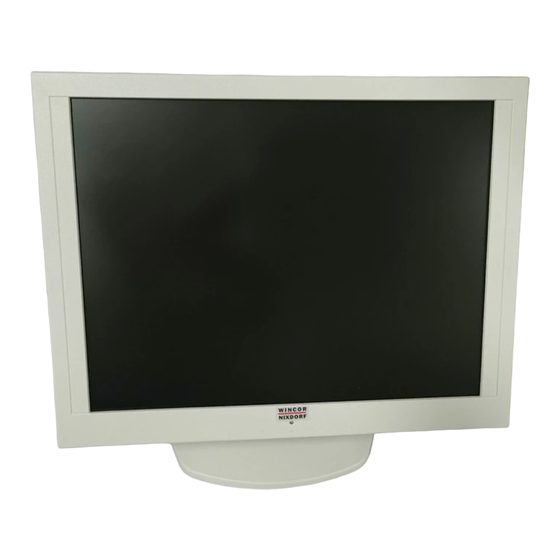

- Page 1 BA73R 15" TFT LCD Monitor Operating Manual...
- Page 2 Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability; technical modifications possible. Copyright© Wincor Nixdorf International GmbH, 2007...
- Page 3 BA73R 15" TFT LCD Monitor Operating Manual Edition Nov 2009...
-
Page 4: Table Of Contents
Resistive Touch Screen (Option)..............15 General ....................15 Construction of the resistive Touch screen...........16 How to Operate ...................16 Cleaning Instructions ................16 Installing the BA73R (Table Top version) ..........17 Securing the screens (Tubular Stand Version) .........19 Adjustable Screen Angle................20 Ergonomic Terminal Workplace ...............21 01750140681 F... - Page 5 Color setting ..................30 Image setting..................32 Tools menu..................33 Audio setting..................35 Exit OSD Menu..................36 Technical Data................37 Models.....................37 Operating Conditions ................38 Touch Screen (optional)................38 Display Specification................39 Display Mode...................41 Interface Definition ..............42 VGA interface ..................42 Touch Interface..................43 BA73R LCD Display – Operating Manual 01750140681 F...
-
Page 7: Manufacturer's Declaration And Approval
Le présent appareil numérique ne produit pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la "classe A" prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. BA73R LCD Display – Operating Manual 01750140681 F... -
Page 8: Tested Safety
The BA73R has been awarded the GS symbol for "Gepruefte Sicherheit" (test safety). BA73R fulfills the requirements for ergonomy according to ISO9241-307 Additionally, the BA73R has also been awarded to cUL- and UL- symbol. User Information Wincor Nixdorf (WN) does not accept responsibility for radio and TV interference and faults that care caused by unauthorized changes that have been made to the devices. -
Page 9: Safety Instructions
BEETLE or PC should be removed, and the Wincor Nixdorf customer service should be contacted. If the LCD display element is broken and the liquid crystal solution... - Page 10 Safety Instructions known as TN-S networks. Do not use PEN conductors! Please also observe the recommendations of the norm DIN VDE 0100, part 540, Appendix C2, as well as EN50174-2, §5.4.3. 01750140681 F BA73R LCD Display – Operating Manual...
-
Page 11: Instructions For Maintenance
Please observe the maintenance and cleaning instructions for each of the BA73R components. These instructions can be found in their respective chapters. Warranty Wincor Nixdorf guarantees a limited warranty engagement for 12 months beginning with the date of delivery. -
Page 12: Recycling
Wincor Nixdorf guarantees the environmentally safe disposal of these parts in a Recycling Center, which is certified pursuant to ISO 9001. So don’t simply throw your BA73R on the scrap heap when it has served its time, but take advantage of the environmentally smart up-to-date... - Page 13 Instructions for Maintenance referat.umweltschutz@wincor-nixdorf.com We look forward for your fax or message. BA73R LCD Display – Operating Manual 01750140681 F...
-
Page 14: Introduction
Introduction Introduction The BA73R is a new addition to our range of flat-panel display. This display features a standard analog RGB interface allowing connection to PC's CRT output. There is no need to add a digital graphics adapter. Using the BA73R provides you with a terminal-orientated, ergonomic and customer-friendly cashier’s workplace. -
Page 15: Advantages At A Glance
If damage has occurred during shipping or if the package contents do not match the delivery note, promptly inform your Wincor Nixdorf sales outlet. Transport the device only in its original packaging (to protect it against impact and shock). -
Page 16: Ba73R Components
The TFT LCD flat screen is an XGA 15” that is flicker-free and free of radiation and has only a low heat emission. The BA73R has a native resolution of 1024 x 768, but it features high-quality advanced auto- scaling display controllers that allow scaling from VGA to XGA. -
Page 17: Power Adapter And Power Cord
Canada Germany Japan Taiwan BSMI China For other countries not mentioned in the above list, please check with the local authority. Cables Standard VGA cable, 1.8m Touch Cable, 1.8m (option) BA73R LCD Display – Operating Manual 01750140681 F... -
Page 18: Capacitive Touch Screen (Option)
“recognized” by the change in capacitance. Because this takes place very quickly - 15 milliseconds after being touched - the Touch Screen is optimally equipped for a number of different requirements and applications. 01750140681 F BA73R LCD Display – Operating Manual... -
Page 19: Touch Screen And Sleep Mode
“waking up”. For these reasons it is not recommended to set the sleep mode. For details please read the chapter “BIOS Setup” in the BEETLE User Guide. BA73R LCD Display – Operating Manual 01750140681 F... -
Page 20: How To Operate
Cleaning with water and isopropyl alcohol is as well possible. Do not use solvents containing acetic acid. Use a soft, fine- meshed cloth to clean the surface. Dampen the cloth slightly and then clean the screen 01750140681 F BA73R LCD Display – Operating Manual... -
Page 21: Resistive Touch Screen (Option)
Because the controller derives both the “X” and “Y” touch coordinates from the stable glass layer, the accuracy and operation of the touch screen is unaffected by damage to the top sheet caused by extended use or neglect. BA73R LCD Display – Operating Manual 01750140681 F... -
Page 22: Construction Of The Resistive Touch Screen
Screen should be cleaned with a water-based solvent or a non-abrasive cleaner. Do not use solvents containing acetic acid or methylene chloride. Use a soft, fine-meshed cloth to clean the surface. Dampen the cloth slightly and then clean the screen. 01750140681 F BA73R LCD Display – Operating Manual... -
Page 23: Installing The Ba73R (Table Top Version)
ARNING The display does not have wall mount function, hence it is not suitable to be wall mounted. Installing the BA73R (Table Top version) Remove the footed stand and screen element from cardboard packaging. - Page 24 Now fasten the screw on the footed stand into place again using the crosstip screw-driver. Ensure that the screw is in the correct position. Ensure that the screw is in the correct position. 01750140681 F BA73R LCD Display – Operating Manual...
-
Page 25: Securing The Screens (Tubular Stand Version)
Insert the joint of the screen element into the mounting stand. Do not remove the connecting part! Tighten the screw using the crosstip screwdriver BA73R LCD Display – Operating Manual 01750140681 F... -
Page 26: Adjustable Screen Angle
BA73R Components Adjustable Screen Angle The BA73R is fitted with a joint on the rear. You can optimize the angle of the screen depending on the viewing and lighting conditions Use a screwdriver to set the twisting force of the BA73R on the adjusting nut 90°... -
Page 27: Ergonomic Terminal Workplace
Avoid reflective glaring caused by electric light sources. Position the screen within a preferred and permitted range of vision, so that you can look vertically into the screen BA73R LCD Display – Operating Manual 01750140681 F... -
Page 28: Installation
VGA connector. Secure it by tightening the thumb-screw Connect the other end of the VGA cable to the similar VGA connector on BA73R. VGA connector Touch Connector DC Input 01750140681 F BA73R LCD Display – Operating Manual... -
Page 29: Connecting The Touch Cable (Option)
PCICOM board. Connect the 9-pin DSUB of the touch cable to the selected COM port of the Beetle system. Secure it by tightening the 2 screws on the DSUB connector. Connect the mini-DIN connector of the touch cable to the BA73R. BA73R LCD Display – Operating Manual 01750140681 F... -
Page 30: Cable Routing
Replace the cable cover in the guide rail. Pay attention to the openings. Slide the cable cover back into place. When you hear a click, the cover is locked into place 01750140681 F BA73R LCD Display – Operating Manual... -
Page 31: Software Installation
Then you can allocate the resources and set the corresponding jumper configuration on the COM board Though the BA73R generally offers good display performance, the types and quality of the display adapter used in the host system can affect the display quality. -
Page 32: On-Screen Display (Osd)
Installation On-Screen Display (OSD) Located on the bottom left side of the BA73R are a set of 4 buttons. Menu Left Right Menu/Select Power Pressing the “Menu” button will activate the OSD. The function of the OSD can be selected by first using the Left or Right button. - Page 33 Left, Right or Select buttons. There are a number of parameters that can set via the OSD menu. The following shows all the selectable parameters that can be set via the various OSD sub-menus. BA73R LCD Display – Operating Manual 01750140681 F...
-
Page 34: Input Source
Installation Input source Analog input Digital input (not applicable for BA73R) Exit sub-menu 01750140681 F BA73R LCD Display – Operating Manual... -
Page 35: Display Setting
Installation Display setting Brightness Contrast Exit sub-menu BA73R LCD Display – Operating Manual 01750140681 F... -
Page 36: Color Setting
Installation Color setting Auto colour sRGB Colour temperature Exit sub-menu 01750140681 F BA73R LCD Display – Operating Manual... - Page 37 Installation Selecting colour temperature When the ‘colour temperature’ option is selected, the following sub- menu options will be available for selection: RGB setting 4200K 5000K 6500K 7500K 9300K Exit sub-menu BA73R LCD Display – Operating Manual 01750140681 F...
-
Page 38: Image Setting
Installation Image setting Auto-adjust Width Phase Horizontal position Vertical position Exit sub-menu 01750140681 F BA73R LCD Display – Operating Manual... -
Page 39: Tools Menu
Installation Tools menu Factory reset Colour reset Position reset Sharpness Overlapped mode Exit sub-menu BA73R LCD Display – Operating Manual 01750140681 F... - Page 40 OSD Direction Exit sub-menu Selecting OSD Direction When the ‘OSD Direction’ is selected, it will prompt for the following sub- menu options for selection: Normal Mirror Left Right Up Down Exit sub-menu 01750140681 F BA73R LCD Display – Operating Manual...
-
Page 41: Audio Setting
Installation Audio setting Volume Volume setting: Buzzer ON Buzzer OFF Exit sub-menu BA73R LCD Display – Operating Manual 01750140681 F... -
Page 42: Exit Osd Menu
Installation Exit OSD Menu Exit sub-menu 01750140681 F BA73R LCD Display – Operating Manual... -
Page 43: Technical Data
Technical Data Technical Data Models The BA73R family of display is available in a several configurations. BA73R-Y /X Where: Y: blank, 1 to n (where n is an incremental number) /X: Blank – with protective glass (no touch) /n – without touch and protective glass... -
Page 44: Operating Conditions
Technical Data Operating Conditions The following operating conditions are valid for a BA73R that is fitted with all the available modules (LCD flat screen, touch screen): Climate class IEC 721 3/3 Class 3K3 Operating C to +40 Temperature 5% - 85% Humidity Absolute humidity 1g/m³... -
Page 45: Display Specification
Type § Dual-lamp, CCFL Lifetime 50,000 hrs The backlight is not part of the warranty or part of a possible service § agreement. Only trained technical personnel is authorized to replace the backlight. BA73R LCD Display – Operating Manual 01750140681 F... - Page 46 15-Dsub to 15-Dsub, shielded, 1.8 metre Touch cable 9-Dsub to 6pin mini-DIN, shielded, 1.8 metre This product is intended to be supplied by a Listed Power Unit and output rated 12 V dc, 3.6A minimum. 01750140681 F BA73R LCD Display – Operating Manual...
-
Page 47: Display Mode
Vertical Pixel Sync Horizontal Frequency Clock Polarity Frequency (Hz) (MHz) (H/V) (KHz) VESA, 640 x 480 31.469 59.940 25.175 VESA, 800 x 600 37.879 60.317 40.000 VESA, 1024 x 48.363 60.004 65.000 BA73R LCD Display – Operating Manual 01750140681 F... -
Page 48: Interface Definition
Interface Definition Interface Definition VGA interface Signal GREEN BLUE GND (Red) GND (Green) GND (Blue) DDC +5V Supply (fused) GND (Sync) HYSNC VSYNC 01750140681 F BA73R LCD Display – Operating Manual... -
Page 49: Touch Interface
Interface Definition Touch Interface Signal (Reference to Touch Controller) Chassis GND RXD (in) TXD (out) BA73R LCD Display – Operating Manual 01750140681 F... - Page 50 Published by Wincor Nixdorf Pte Ltd 2, Kallang Sector Singapore 349277 Part No.: 01750140681 F...
