POLMAR DB-50M Quick Reference Manual

Polmar DB-50M quick reference guide

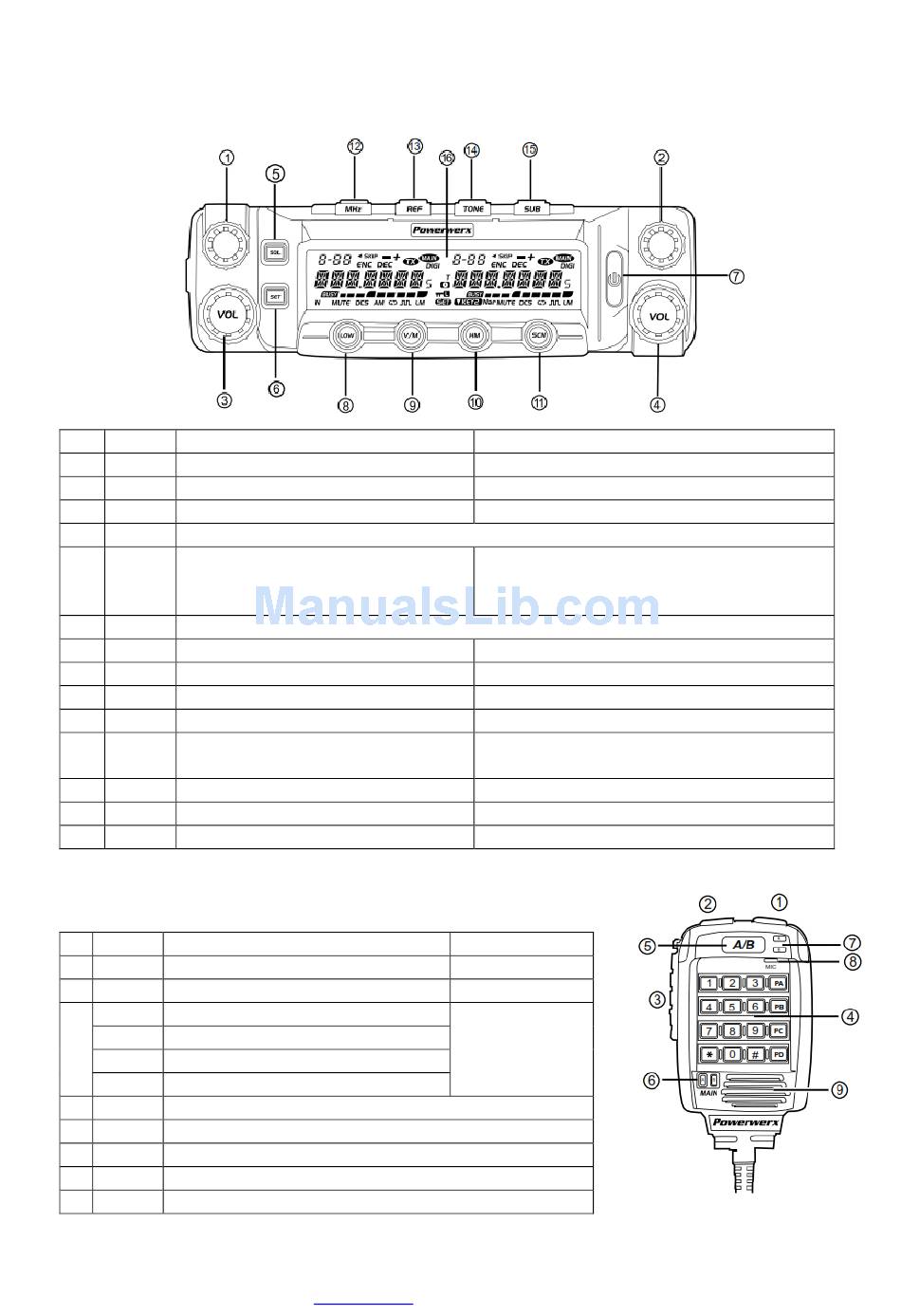

Front panel

1 Dial A R: Change channel/freq/scan dir
2 Dial B R: Change channel/freq/scan dir
3 Vol A R: Adjust volume
4 Vol B R: Adjust volume
5 Sql H: turn Squelch off momentarily, rotate dial to change Squelch level
6 Set P: enter Set menu
7 ɸ H: Power on/off
8 LOW P: Power level Low/Mid2/Mid1/High
9 V/M P: VFO mode <-> Memory mode
10 HM P: Enable Home channel
11 SCN P: Scanning on/off
12 MHZ P: change dial step 1MHz/10 ch
13 REV P: Frequency Reverse on/off
14 TONE P: cycle Tone/CTCSS/DCS
15 SUB P: configure sub band settings
P: = press knob/key once, H: = hold knob/key down for 1 second, R: rotate knob
Microphone
1 UP RX: channel/frequency up
2 DN RX: channel/frequency down
3 PTT Transmit
0..9 RX: input memory ch/frequency
* RX: Squelch on/off
4
# RX: input and store memory freq
PA..PD RX: programmed keys
5 A/B RX: main band A<->B
6 MAIN Main band indicator
7 RT RX/TX indicators
8 MIC Microphone
9 Speaker (when enabled in Menu 55)
RX: = press while in standby, TX: press while transmitting
© 2014 by PC5E/Robert Elsinga,
P: Set as main band/confirm setup
P: Set as main band/confirm setup
H: Delete memory channel (Hold to confirm)
H: Delete memory channel (Hold to confirm)
H: Write/Copy Memory channel (hold Set to
confirm) or Delete Memory channel (hold
Vol to confirm)
H: Additional Signalling 5T/2T/DTMF
H: Channel spacing Wide/Middle/Narrow
H: Dual Watch (VFO+Memory ch) on/off
H: turn Skip on/off for Memory channel
H: Talk Around (RX/TX on repeater output)
on/off
H: Compander on/off
H: CTCSS/DCS scan (when CTCSS/DCS is on)
H: cycle through Scrambler settings
TX: Call Out
TX: TBST
TX: send DTMF
0..9/*/#/A..D
www.pc5e.nl (but distribution permitted when unchanged)
