RicetRasMettitoRe aeRoNaUtico VHF AIR BAND tRANsceIVeR Manuale operativo User’s Manual Importato e distribuito da Polmar srl...
Page 2
Per la soppressione delle interferenze RF, è necessario utilizzare un adattatore CA con nucleo di ferrite. Il ricetrasmettitore Polmar è stato presettato in fabbrica ma, nella gran parte dei casi, il se- gnale audio trasmesso necessita di essere corretto. Per la connessione al sistema elettrico e al microfono/altoparlante è...
SOMMARIO INTRODUZIONE ISTRUZIONI PER L’INSTALLAZIONE CONSIDERAZIONI INERENTI L’INSTALLAZIONE GENERALE 4.1 Alianti 4.2 Aeromobili Ultraleggeri 4.3 Deltaplani a motore/Aeromobili autocostruiti (Homebuilt)/Aviazione generale PRIMA DI INIZIARE L’INSTALLAZIONE 5.1 Identificazione componenti per l’installazione 5.2 Installazione e rimozione del ricetrasmettitore 5.3 Generale 5.4 Connessioni Pin 5.5 Installazione meccanica 5.6 Installazione elettrica 5.7 Installazione Antenna...
Data l’effettiva limitazione di spazio sulla gran parte dei pannelli degli strumenti degli alianti, il pannello frontale da 57 mm del PL-760 costituisce un’ottima scelta là dove lo spazio è limi- tato. Generalmente, la radio è montata sul fondo del pannello, con gli strumenti essenziali in alto.
Con questi motori ci sarà quasi sicuramente un pò di rumore d’accensione di sottofondo, tuttavia il limitatore di rumore del PL-760 eliminerà quasi totalmente la rumorosità (ad eccezione dei livelli intorno ai 5 µV).
5.4 Connessioni Pin N. Pin Funzione Elemento Microfono Collegamento a massa microfono Elemento Microfono Ingresso musica Interfono (collegamento a terra da azionare) Uscita silenziamento (per applicazioni limitate) Tasto PTT microfono (Press to talk) LED retroilluminazione (collegamento a terra da azionare e regolazione luminosità mediante potenziometro) 12V/24 Vcc Positivo 12V/24 Vcc Positivo...
(max 2 amp). NOTA Il PL-760 è dotato di fusibile interno da 10 ampère che non è però sostituibile sul campo. Se la radio si guasta, è necessario inviarla a un centro riparazioni Polmar autorizzato.
5.8 Sintonizzazione Prima di tentare qualsiasi sintonizzazione, è necessario disporre di un misuratore di ROS, che possa rilevare la potenza riflessa dell’antenna. Minore è il valore di lettura ROS (Stan- ding Wave Ratio – Rapporto d’Onda Stazionaria), maggiore è l’uscita e il segnale irradiato. Elevati valori ROS diminuiscono la prestazione e possono causare danni.
6 FUNZIONAMENTO DELL’APPARECCHIATURA 6.1 Generale Leggere attentamente questa sezione per una corretta descrizione e un funzionamento adeguato di questa apparecchiatura. 6.2 Descrizione Comandi Lo schema che segue mostra la posizione dei diversi comandi. 1 Comando Volume e Accensione/Spegnimento (On/Off) Girare completamente in senso antiorario per spegnere. Girare in senso orario per ac- cendere l’apparecchio e regolare il volume.
Page 10
4 Priorità/Emergenza Attivando questo comando si passa alla scansione prioritaria. Serve anche per cancellare i canali in memoria. Premere e mantenere premuto questo tasto per due secondi per attivare la frequenza di emergenza. Se il tasto esterno di memoria viene premuto dopo aver richiamato la memoria priorita- ria, si passa alla scansione prioritaria.
Premere nuovamente il tasto di modalità per accedere al display con i canali in memo- ria. Possono essere visualizzati fino a 32 canali. Girare la scala parlante verso sinistra o verso destra per far scorrere i canali verso l’alto o verso il basso. Per la scansione, usare il tasto freccia, Per arrestare la scansione, premere le frecce o attivare il tasto PTT.
6.5 Funzionamento Interfono Potrebbe essere richiesto di effettuare la regolazione interna del volume durante la tra- smissione, per impostare il livello corretto. In un ambiente rumoroso, potrebbe risultare necessaria anche la riduzione del guadagno del microfono. Non regolare la modulazione! Anche una manica a vento sopra il microfono aiuta a ridurre la rumorosità.
8 SUGGERIMENTI UTILI • Montando un filtro di rete in linea costituito da una rete LC è possibile ridurre il rumore d’accensione più persistente. Si tratta di filtri disponibili in commercio e comunemente utilizzati per eliminare la rumorosità negli impianti stereo. •...
Page 15
Aeromobili certificati: qualsiasi antenna approvata per comunicazioni VHF Terminazione cavo coassiale Terminazione BNC Dimensioni foro per Radio (disegno non in scala)
Page 16
Polmar transceiver has been factory preset and in most cases the transmitted audio should be correct. A 15 pin connector is supplied for connection to the electrical system and mi- crophone/speaker. Notes to the installer/user. This is a 12-24Vdc radio, voltages greater than 33V voltage will severely damage it.
Page 17
TABLE OF CONTENTS INTRODUCTION INSTALLATION INSTALLATION CONSIDERATION GENERAL 4.1 Sailplanes 4.2 Ultralight 4.3 Microlight / Home built / G.A. BEFORE BEGINNING INSTALLATION 5.1 Installation parts identification 5.2 Transceiver installation and removal 5.3 General 5.4 Pin connections 5.5 Mechanical installation 5.6 Electrical installation 5.7 Antenna Installation 5.8 Tuning 5.9 On air testing...
The following section is a guide for individual types of aircraft installations. 4.1 Sailplanes Due to the inherent space restriction on most glider instrument panels the PL-760’s 57- mm front panel makes it an excellent choice for confined spaces. Generally the radio is mounted at the bottom of the panel with essential instruments at the top.
If the s provided as a guide for installation in uncertified aircraft. If the s provided as a guide for installation in uncertified aircraft. If the PL-760 is to be installed in a certified aircraft the installation must be done by a certified repair station.
The FL-760 has an internal 10 amp fusible link which is not field replaceable. If the radio fails it must be returned to a Polmar approved repair facility. RED is POSITIVE! (Pins 9 and 10) GROUND (Pins 11 and 12) It is advisable to connect the power cable through a radio master switch and not direct to the battery.
Page 21
Have someone monitor your signal on another radio. Transmit and speak into the mi- crophone at normal level. If the received signal is quiet then the mike gain control will need to be adjusted. If the signal is loud and distorted then it will need to be turned down. These adjustments should be done using a comm.

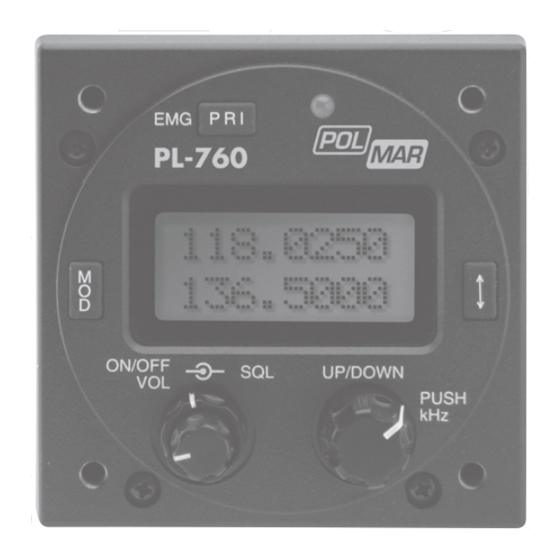

6 OPERATION OF EQUIPMENT 6.1 General Please read this section for the correct description and operation of this equipment. Control Description Following diagram shows the position of the controls. 1 Volume and On/Off control Turn fully anticlockwise to switch off. Turn clockwise to switch on and adjust volume. 2 Squelch (mute) control The outer ring control adjusts the mute threshold.
Page 23
4 Priority/Emergency Activating this control will switch to priority memory. It also doubles as memory channel delete. Press and hold this key for two seconds to activate the emergency frequency. If the external memory button is pushed after the priority memory is called, it becomes a priority scan.
Push the mode button again to access the priority memory channel display. To priority scan, press the arrow key. The unit will now scan between the memory channel and priority channel. Push the mode button again to access the program page. 7 External memory toggle This button alternately replaces an active frequency and the standby frequency.
User setting • You can set the use of this radio. Continuous on of the backlight. Hold down the “MOD” button and power on. Push the “MOD” button and select the LAMP. Push the dial switch and select the OFF or ON. Push the arrow key, enter the backlight function.
SPECIFICATIONS General Frequency range 118.00 to 136.975MHz Channel spacing 25kHz Mode AM (6A3) Number of memory channels 32 Acceptable power supply 11.7 V to 33 VDC (Negative ground only) Usable temp. range 20°C to +60°C Frequency stability +/- 5ppm Current drain TX: 3A(max) RX 0.8A(max) Standby: 300mA Dimensions W61 X D159 X H61 (mm)
8 HELPFUL HINTS • Installing an inline power filter consisting of an LC network may reduce stubborn ignition noise. These are readily available and are commonly used to suppress noise getting into stereo systems. • Use shielded spark plug leads. •...
INFORMAZIONE AGLI UTENTI Ai sensi dell’art. 13 del decreto legislativo 25 luglio 2005, n. 15”Attuazione delle Direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché allo smaltimento dei rifiuti” Il simbolo del cassonetto barrato riportato sull’apparecchiatura indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente dagli altri rifiuti.
Page 31
APPENDICE La procedura di impostazione della sensibilità del VOX è stata migliorata come segue: (pagina 12, 6.6 Impostazione Utente) Procedura migliorata Ci sono due modi per accedere alla modalità di impostazione utente Accendere la radio tenendo il tasto [MOD] premuto o Premere e tenere premuto la manopola [UP/DOWN] per più...
Page 34
Importato e distribuito da Polmar srl polmar.srl@alice.it • www.polmar.biz...
