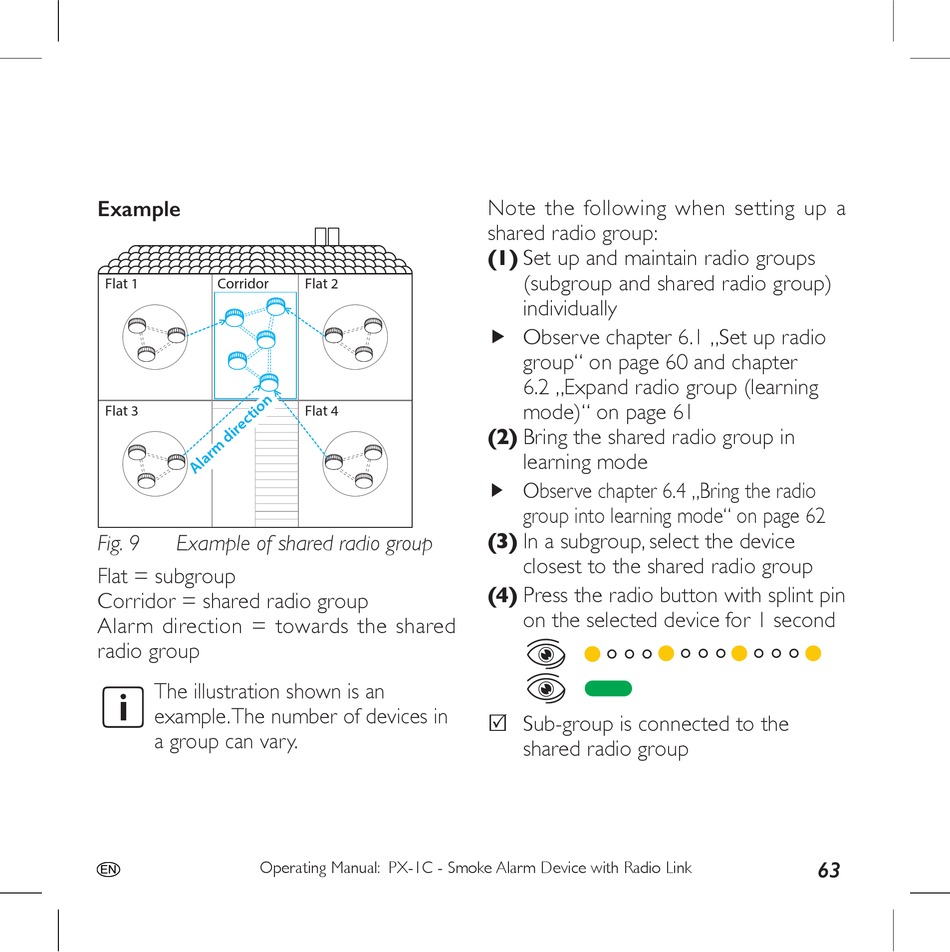

pyrexx PX-1C Operating Manual page 63

Example
Flat 1
Flat 3
Fig. 9 Example of shared radio group
Flat = subgroup
Corridor = shared radio group
Alarm direction = towards the shared
radio group
The illustration shown is an
example. The number of devices in
a group can vary.
EN EN
Corridor Flat 2
Flat 4
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
Note the following when setting up a
shared radio group:
(1) Set up and maintain radio groups
(subgroup and shared radio group)
individually
f Observe chapter 6.1 „Set up radio
group" on page 60 and chapter
6.2 „Expand radio group (learning
mode)" on page 61
(2) Bring the shared radio group in
learning mode
f Observe chapter 6.4 „Bring the radio
group into learning mode" on page 62
(3) In a subgroup, select the device
closest to the shared radio group
(4) Press the radio button with splint pin
on the selected device for 1 second
5 Sub-group is connected to the
shared radio group
63
