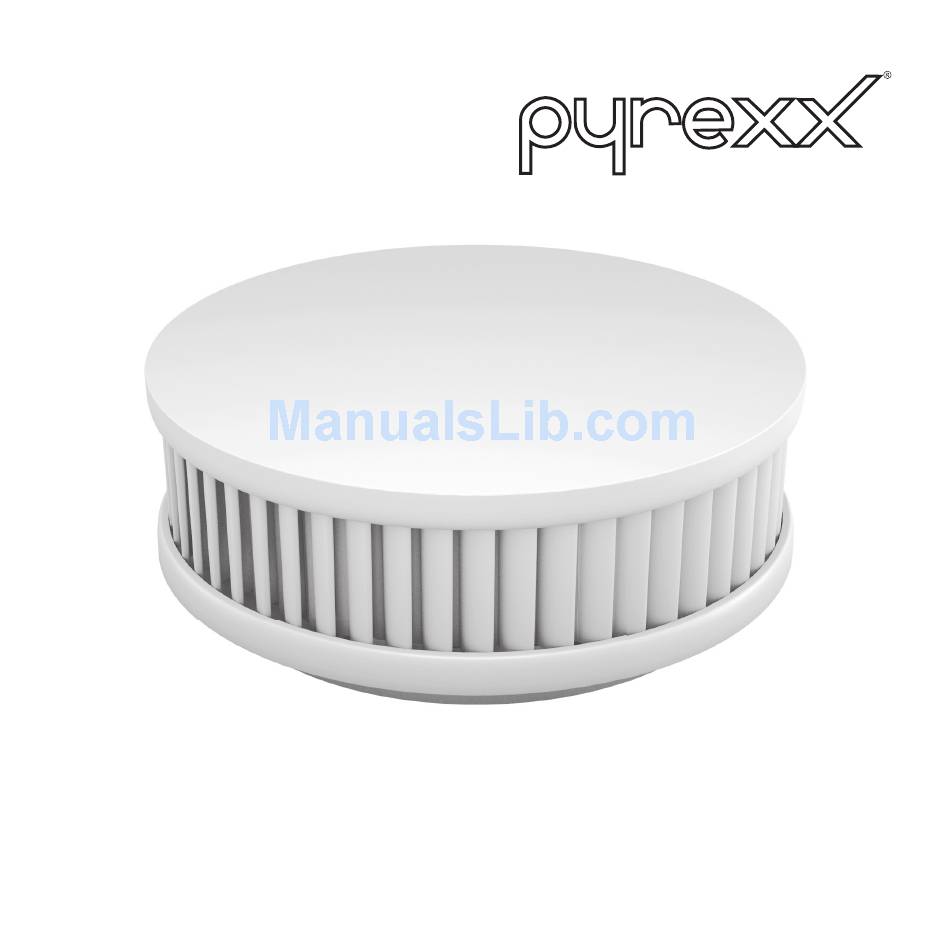

- Page 1 PX-1 Smoke Alarm Device Operating, installation and maintenance manual...
- Page 2 www.pyrexxsmokealarms.co.uk Advisory tones Volume By activation the device a simple tone is emitted (short: beep). By pressing the test/stop button a simple tone is emitted (long: beep).
- Page 3 www.pyrexxsmokealarms.co.uk Cause Activation tone Test tone...
- Page 4 www.pyrexxsmokealarms.co.uk Alarm tones Volume Every second a double tone is emitted (short: beep, long: beep). 0,5 sec Every second a simple tone is emitted (short: beep). 1 sec...
- Page 5 www.pyrexxsmokealarms.co.uk Cause Mute of Alarm tones Smoke Alert Each alarm tone can be tempo- rarily deactivated (Smoke Alert and Temperature Alert: 10 min) by pressing the test/stop button (Fig. 1d). 10 min Temperature Alert...
- Page 6 www.pyrexxsmokealarms.co.uk Advisory tones Volume Every 90 seconds a simple tone is emitted (short: beep). 90 sec Every 90 seconds, there is a double tone (short: beep, short: beep). 90 sec...
- Page 7 www.pyrexxsmokealarms.co.uk Cause Mute of Advisory tones Battery failure signal Each advisory tone can be temporarily deactivated (Battery failure signal and Contamination Alert: 24 hrs) by pressing the test/stop button (Fig. 1d). 24 h Contamination of Device Signal Important: The device has to be replaced (see “Low Battery Signal / Contamination Signal”).
- Page 8 www.pyrexxsmokealarms.co.uk Warranty and European legal guarantee void if broken! Do not immerse the system in water ! No battery exchange (see “General safety information”) Closed system, only cover is changeable...
- Page 9 www.pyrexxsmokealarms.co.uk How to Deactivate the system Push cover to turn the signal off Open the cover Push red activation button to power off...
- Page 10 www.pyrexxsmokealarms.co.uk...
- Page 11 www.pyrexxsmokealarms.co.uk...
- Page 12 Stay calm. Warn everyone at the residence. Help children, the disabled, the elderly and persons suffering from illness. Close all windows and doors behind you. Get out of the house immediately. Do not use elevators. Alert the fire department. www.pyrexxsmokealarms.co.uk...
-
Page 13: Installation With Adhesive
www.pyrexxsmokealarms.co.uk Installation Installation with adhesive The smoke alarm device is kept in place Means of anchorage (magnetic holder by a magnetic holder (Fig. 1b). There are with self-adhesive coating on reverse two ways described below to fasten side) acc. to EN 14604: 2005/AC: 2008 the holder to the ceiling. -
Page 14: Installation With Screw Anchor
www.pyrexxsmokealarms.co.uk Installation with screw anchor Please leave the adhesive on the mag- tive sheet from the adhesive applied netic holder even when installing with on the magnets. Press the magnetic screw and anchor. Drill a hole at the installation site and insert the screw to the location chosen for installation. -
Page 15: Testing And Maintenance
www.pyrexxsmokealarms.co.uk Testing and maintenance The smoke alarm device monitors itself objects. If the acoustic signal is not emit- ted when you test the alarm, then the automatically once a minute to check if it is operational. This device also auto- device has to be replaced. -
Page 16: Low Battery Signal / Contamination Signal
www.pyrexxsmokealarms.co.uk Low Battery Signal / Possible causes for an Contamination Signal the cause If the energy supply of the smoke alarm • In some rooms, there is ususally more device is low or the optical detection dust than in others. A bedroom is often system becomes so soiled that automat- one such room. - Page 17 www.pyrexxsmokealarms.co.uk Carefully cleaning the device regularly always ventilate the rooms well. An with a vacuum cleaner helps avoid a alarm due to soiling can be turned off false alarm due to soiling. by gently pressing the test/stop button (Fig. 1d) and prevented by ventilating the rooms well.
-
Page 18: General Safety Information
www.pyrexxsmokealarms.co.uk General safety information quence that the device can and must no longer be used as intended! Please do not ever open the device due the risk of injury! Smoke alarm devices emit an alarm when Changing the batter y is neither there is a hazard due to fumes and to call required and nor even possible. - Page 19 www.pyrexxsmoskealarms.co.uk Decoration Please always observe the following: The smoke alarm devices test/stop but- Only when the device is located at ton (Fig. 1d) is removable (Fig. 3) and its intended installation site, unsoiled, can be decorated to match the design undamaged and activated is it able to of the room.
-
Page 20: Intended Use
www.pyrexxsmokealarms.co.uk Intended use Service life of the device Use this device exclusively for the After 12 years at most, the end of the purpose it was designed and built for! service life of the device will have been Any other application is not as intended! reached. - Page 21 Service CE conformity The PX-1 is produced by Pyrexx This product has been tested and cer- Technologies GmbH. P r o d u c t s R e g u l a t i o n ( E U ) N o 305/2011 (CPR) under the terms of pyrexx.com/en/suppor t...
- Page 22 www.pyrexxsmokealarms.co.uk Disposal According to the EU’s Restriction of Hazardous Substances Directive, this product may not be disposed of in household garbage. Please send the de- vice back to the manufacturer for recy- cling or give it to the waste management company responsible for this in your area.
- Page 23 12 years limited warranty Warranty exclusion criteria Pyrexx Technologies GmbH provides a warran- ty to the original buyer only, for the duration of 12 years starting from the date of purchase, Soiling: that this product, which was either purchased...
- Page 24 www.pyrexxsmokealarms.co.uk claim. Paints and similar substances on the sur- exposure to excessive humidity (e.g. steam/ face of the device and inside the casing/sensor cooking vapor) drains the battery on the one system of the smoke alarm device are consid- ered contamination. In addition, adhesions such ity can damage the electronics of the smoke deposits, which have led to the obvious dis- alarm device by causing corrosion.
-
Page 25: Limitation Of Liability
Pyrexx Technologies GmbH is limited to the purchase price of the product.
