5.2 Drilling installation
As an alternative to adhesive mounting,
you can also screw the magnetic carrier
on the mounting surface.
Even with the drilling installation, the ad-
hesive pad must remain on the magnetic
carrier and must not be removed.
When performing the drilling installation,
proceed as follows:

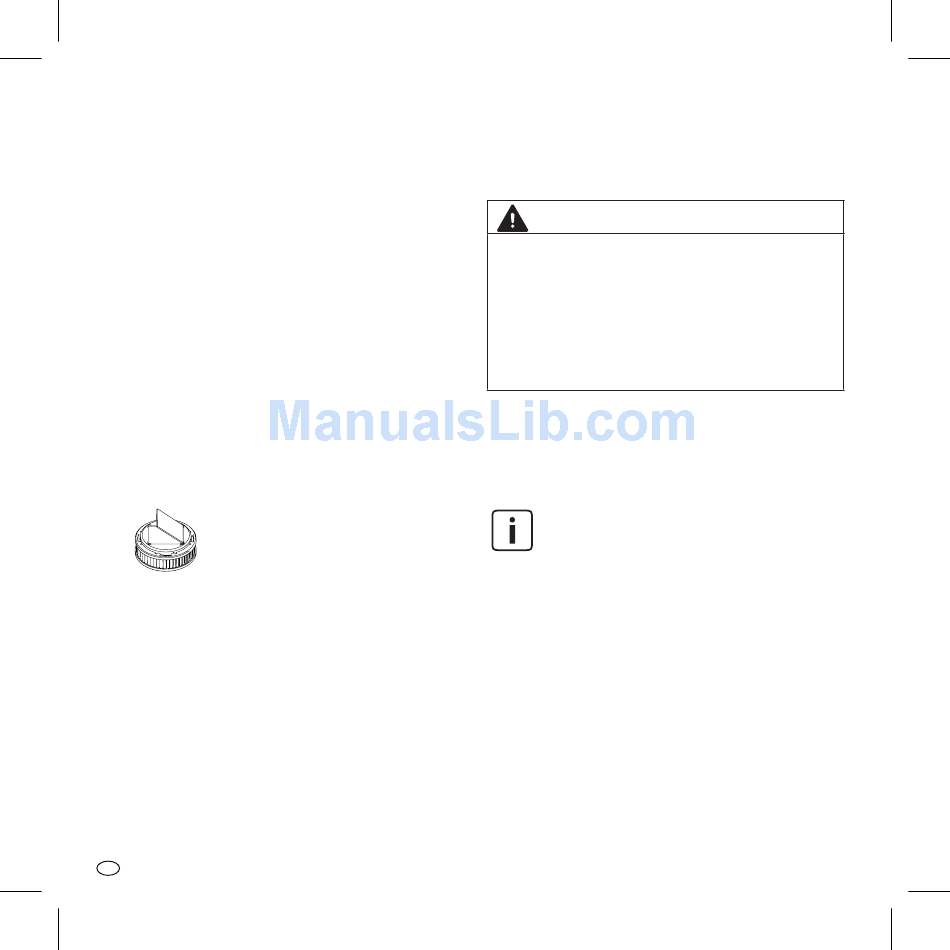

(1) Remove magnetic carrier from
the device
f To do this, tilt the magnetic carrier
(2) Drill a hole on the mounting posi-
tion in the mounting surface
(3) Insert the dowel into the drill hole
(4) Tighten the screw in the
magnetic carrier
(5) Position the magnetic carrier above
the dowel
EN EN
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
CAUTION
Possible property damage!
Over-tightening the screw may deform
the magnetic carrier.
f Tighten the screw only so deep
that the magnetic carrier is not
deformed or bulged.
(6) To ensure a safe hold of the device,
tighten the screw deep into the
dowel so that it closes flush with the
magnetic carrier
Also in a drilling installation, you
can create an adhesive com-
pound using additional adhesive
film, according to vfdb 14/01 (Q)
(see chapter „Adhesive mount-
ing according to EN 14604:2005/
AC:2008 and vfdb 14/01 (Q)" on
page 57).
