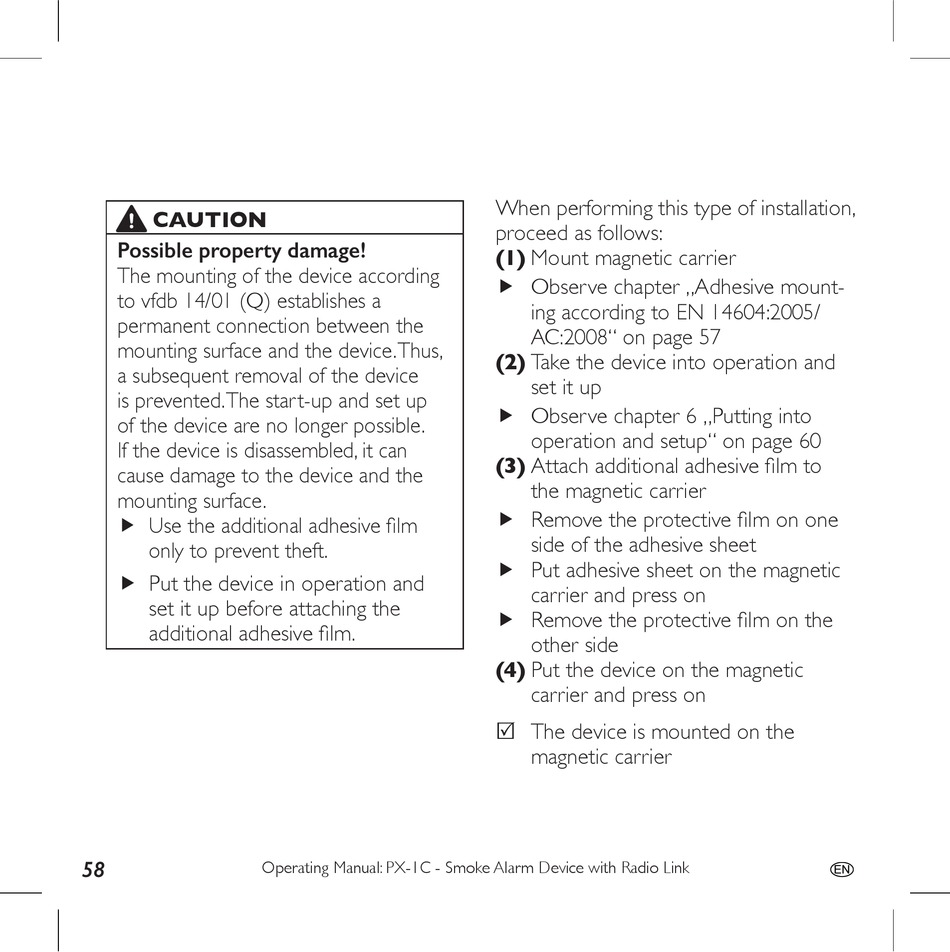

pyrexx PX-1C Operating Manual page 58

CAUTION
Possible property damage!
The mounting of the device according
to vfdb 14/01 (Q) establishes a
permanent connection between the
mounting surface and the device. Thus,
a subsequent removal of the device
is prevented. The start-up and set up
of the device are no longer possible.
If the device is disassembled, it can
cause damage to the device and the
mounting surface.
f Use the additional adhesive film
only to prevent theft.
f Put the device in operation and
set it up before attaching the
additional adhesive film.
58
Operating Manual: PX-1C - Smoke Alarm Device with Radio Link
When performing this type of installation,
proceed as follows:
(1) Mount magnetic carrier
f Observe chapter „Adhesive mount-
ing according to EN 14604:2005/
AC:2008" on page 57
(2) Take the device into operation and
set it up
f Observe chapter 6 „Putting into
operation and setup" on page 60
(3) Attach additional adhesive film to
the magnetic carrier
f Remove the protective film on one
side of the adhesive sheet
f Put adhesive sheet on the magnetic
carrier and press on
f Remove the protective film on the
other side
(4) Put the device on the magnetic
carrier and press on
5 The device is mounted on the
magnetic carrier
EN EN
