Summary of Contents for IP Camera CL-15BMX

  • Page 1: User Manual

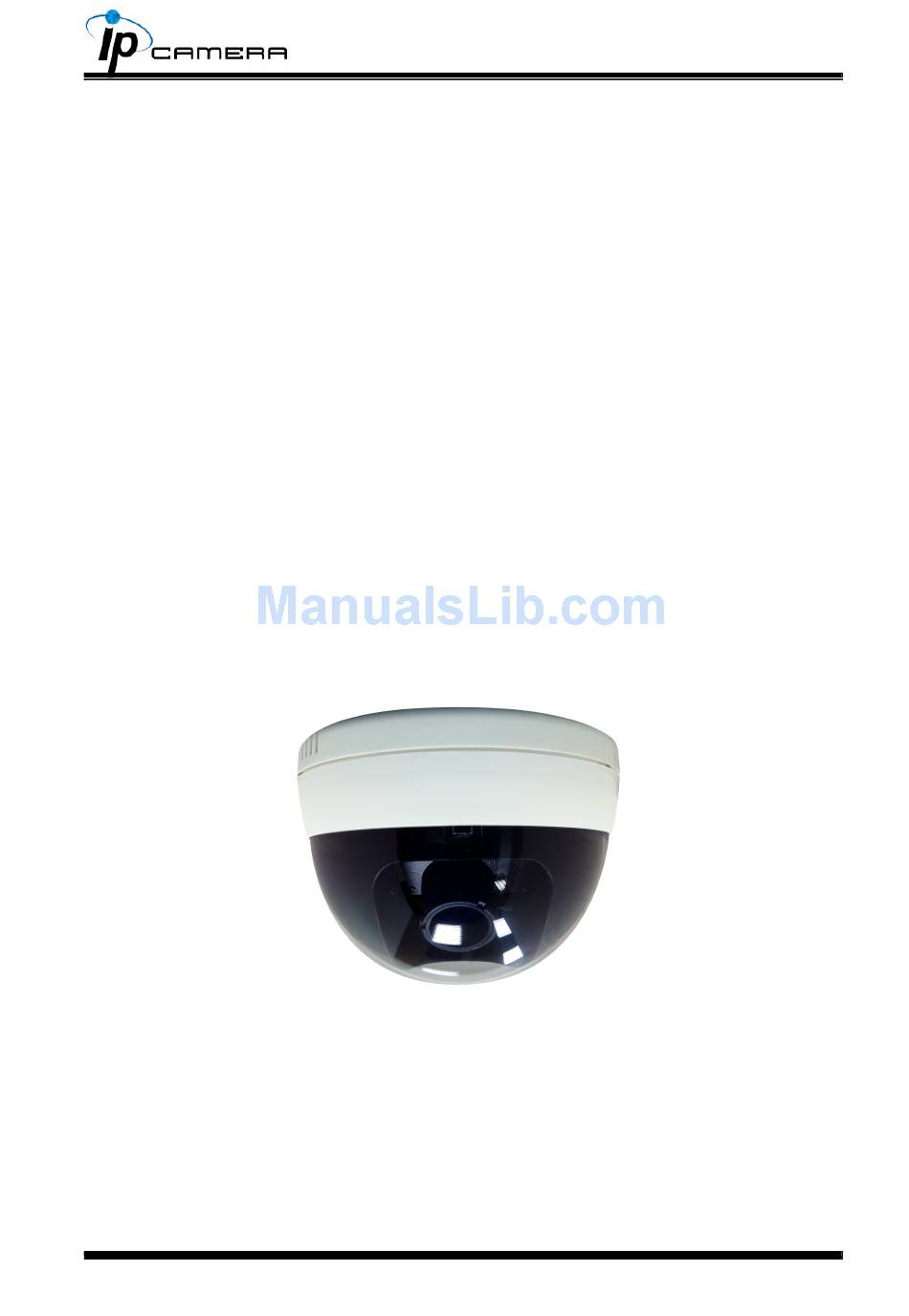

    User Manual INDOOR DOME IP CAMERA...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).
  • Page 3: Table Of Contents

    CONTENT Preface Product Specifications IIII Product Installation Monitor Setting Hardware Installation IP Assignment Install ActiveX control Live Video IP Camera Configuration System Network A/V Setting Event List Network Configuration IIII I/O Configuration IIIII Factory Default Universal Password Package Contents Micro SD Card Compatibility...
  • Page 4: Preface

    Preface This IP Camera is a 1.3 megapixel dome IP camera with the web server built in. User can view real-time video via IE browser. IP Camera supports simultane- ously H.264, Motion JPEG & MPEG4 video compression and dual streaming which provides smooth and high video quality.
  • Page 5 1 DI / 1 DO Audio G.711(64K) and G.726(32K,24K) audio compression Input : External Mic in Output: External Audio out Power over Ethernet Max Power 12V DC : 2.4W 12V DC: Consumption PoE : 2.88W DC:4.32W(IR 3.24W(IR On); On); 2.76W(IR 2.76W(IR Off) Off) PoE:...
  • Page 6 Compression Format H.264/ M-JPEG/ MPEG4 Video Bitrates Adjust CBR, VBR Motion Detection Yes, 3 different areas Triggered Action Mail, FTP, Save to Micro SD card, SAMBA, DO Pre/ Post Alarm Yes, configurable Security Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP Firmware Upgrade...
  • Page 7 Audio G.711(64Kbps)/ G.726(24Kbps/32Kbps) audio compression Input : External Mic in Output: External Audio out Power over Ethernet Max Power Consumption 12V DC: 2.4W 12V DC : 4.08W (IR On); PoE: 2.88W 2.52W(IR Off) Operating Temperature 0°C ~ 45°C Dimensions 131.2mm (∅) x 94.3mm (H) IR LEDs (Option) LEDs 18 LEDs, 850nM,...
  • Page 8 Security Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP Firmware Upgrade HTTP mode, can be upgraded remotely Simultaneous Connection Up to 10 Micro SD card management Recording Trigger Motion Detection, IP check, Network break down (wire only),Schedule, DI Video Format AVI, JPEG...
  • Page 9: Iiii Product Installation

    IIII Product Installation Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit).
  • Page 10: Bi Hardware Installation

    Connector Instruction Connect power adaptor first, then connect the IP Camera to PC or network, and set up the network configurations according to the network environment. About I/O setting, please refer to chapter VII in User Manual: "I/...
  • Page 11 PoE ( Power Over Ethernet)(Optional) 802.3af PoE Switch is recommended Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP phone or a network camera, using the same cable as that used for network connection.
  • Page 12: Ci Ip Assignment

    IP Assignment You can use the software“IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. There are two language versions of IP installer. Choose one as your need: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version There are 3 kinds of IP configuration.
  • Page 13 Click one of the IP Camera listed on the left side. The network configuration of this IP camera shows on the right side. You may change the “name” of the IP Camera as your preference (eg: Office, warehouse). Change the parameter and click “Submit”...
  • Page 14: Di Install Activex Control

    If you link to the IP Camera successgully, there pops a box asking you to log in. Please key in the default user name"admin" and password"admin" when you link to the IP Camera for the first time. You can revise the user name and password later. Please refer to Chapter V: "A.2.
  • Page 15 When popup the following dialogue box, click “Yes”.
  • Page 16 You can choose another way. Go to: IE→Tools → Internet Options… → Security Tab → Trusted sites → Add the IP address and click "OK". In the site list you can key one single IP address or a LAN address. For example, if you add "192.168.21.*", all the IP address under .21 LAN will be regarded as trusted sites.
  • Page 17 Use Non-IE Web Browser If you use firefox or google chrome to access the IP camera but fail to watch the live video, please follow the steps to install necessary tools: (the following pictures are based on chrome.) You may see the prompt message as the picture below. First, Click the link: "Firstly, please install Microsoft Visual C++ 2010 Redistributable Package...
  • Page 18 (iii) After fininshing downloading, execute the two files respectively to install them.The windows may ask you to reboot the PC when the installation finished. Then, Click the second link "Please click here to download the installation program which does not support IE browser." to download Setup ActiveX. After fininshing downloading, execute the files to install ActiveX.
  • Page 19 If you execute the steps above but still cannot see the live video normally, please try the solution: Search for the file "np_hoem_x.dll" in your system disk. For Windows XP users, please go to "Start" → "Search" → Search for "All files and folders"...
  • Page 20: Live Video

    Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 21 The "mute" botton does not affect the playback recording video. As long as the "IP Camera to PC" option in the audio setting is enabled, all the audio will be recorded into the playback video even you click "mute" in the live page.
  • Page 22: Ip Camera Configuration

    IP Camera Configuration Click to get into the administration page as below. Click to back to the live video page.
  • Page 23: Ai System

    System System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. (ii) Select language: There are 11 languages to choose from. When you change the language, it will show the following dialogue box for confirmation.
  • Page 24 Server time setting: Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. • Server Time: It shows current IPCam server time. • Date Format: Select the date display format. •...
  • Page 25 2. User Management IP CAMERA supports three different users, administrator, general user, and anonymous user. Anonymous User Login: Select “Yes”, then anyone access the camera can watch the live video without username and password. However, If you try to enter the configuration page, the camera will ask you to key in the username and passwork to log in.
  • Page 26 Reboot system:re-start the IP camera Factory default:delete all the settings in this IP camera. Setting Management:User may download the current setting to PC, or upgrade from previous saved setting.
  • Page 27: Bi Network

    Network IP Setting IP Assignment IP Camera supports DHCP and static IP. DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. (ii) Static IP: Please type in IP address, subnet mask, gateway, and DNS manually. IPv6 Assignment IPv6 is a newer numbering system that provides a much larger address pool than IPv4, which accounts for most of today’s Internet traffic.
  • Page 28 IP camera. This virtual IPv6 address cannot use on WAN. To use IPv6 address to access the IP camera, please open the web browser, and key in [IPv6 address] in address bar. The [ ] parentheses mark is necessary.
  • Page 29 • The IP device icon will be added to “MY Network Places” • User may double click the IP device icon to access IE browser <Approach 2> • Open "My Network Space", and click "Show icons for networked UPnP devises" in the tasks column on the left of the page. Windows may ask your confirmation for enabling the components.
  • Page 30 RTSP setting If you have a media player that supports RTSP protocal, you can use it to receive the video streaming from IP camera. The RTSP address can be set for two streamings respectively. Please jump to Chapter V-C:"Video Setting". There're setting field for RTSP address of two streamings.
  • Page 31 Bonjour This function enable MAC systems to link to this IP camera. Key in the name here. The web browser "Safari" also has Bonjour function. Tick "Include Bonjour" in the bookmark setting, and you can see the IP camera appearing under the bonjour category.
  • Page 32 LLTD If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position(like IP address) of this IP Camera in the network map. In the computer running Windows Vista or Windows 7, you can find LLTD through the path: Call out the Control Panel →...
  • Page 33 Advanced Https (Hypertext Transfer Protocol Secure) When the users access cameras via Https protocol, the transmitted information will be encrypted so that the security level is arisen. You can select the connection type. • Http: user can access the camera via Http path but cannot via Https path.
  • Page 34 (ii) Created Request: Fill in the following form and click “apply”. (iii) After you generate a certificate request, if you choose to turn it to the trusted third-party to verify, please click “Content” and copy all the request content. (iv) According to the certificate source, there are two ways to install the...
  • Page 35 certificate. If you had sent the certificate request to do sign and received a signed certificate, please click” browse” and find the certificate file in your computer. Click “Apply” to install it. If you choose to generate a self-signed certificate, fill in the following forms and set validity day, click “Apply”...
  • Page 36 SNMP(Simple Network Management Protocol) SNMP provides a simple framework for administering networked hardware. To manage the IP camera, you have to prepare a MIB browser or similar tools first. SNMPv1, SNMPv2c, and SNMPv3 can be enabled simultaneously. The following examples are based on MG-SOFT MIB Browser.
  • Page 37 SNMPv3. The user has to give not only the security name(similar with "community name" in v1&v2c) but the password in order to access the IP camera. Please set security name, authentication type, authentication password, encryption type, encryption password of write and read respectively.
  • Page 38 Trap Address, which is usually the manager's IP address. Trap Community means the community that can receive the trap message. Note: Trap Address must be under the same LAN with IP camera.
  • Page 39 SD Insert / Remove: A Micro SD card is inserted or removed. • Example: Open the MIB Browser. Use SNMPv1 or SNMPv2 to access the camera. When the SNMP setting is edited, Manager’s MIB Browser(192.168.40.159) will receive the trap message of “setting change“ from IP Camera (192.168.40.21).
  • Page 40 You can deny an IP address or a range of IP address so that they cannot access the IP camera. Tick the "enable" box, key in the IP address you want to deny, select"deny" then click"Add" to add it to the list.
  • Page 41 QoS/DSCP(Quality of Server/Differentiated Services Code-point) DSCP specifies a simple mechanism for classifying and managing network traffic and provide QoS on IP networks. DSCP is a 6-bit in the IP header for packet classification purpose. Set up instruction: The number 0~63 for Live Stream, Event / Alarm, and Management represent the ratio that the bandwidth is divided.
  • Page 42 IEEE 802.1x IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to device wishing to attach to a LAN or WLAN. To use this function, you need a device to build IEEE 802.1x LAN at first. The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment.
  • Page 43 PPPoE & DDNS PPPoE: Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to Server settings.
  • Page 44 (vi) DDNS Status • Updating: Information update • Idle: Stop service • DDNS registration successful, can now log by http://<username>. ddns.camddns.com: Register successfully. • Update Failed, the name is already registered: The user name has already been used. Please change it. •...
  • Page 45 Server setting The settings of Email, FTP and SAMBA are used when the event happens, schedule snapshot executes, or the alarm input is triggered. Select the item to display the detailed configuration options. You can configure either one or all of them. Mail Setting: Set up the server address and account information of your e-mail.
  • Page 46 connection. A message box will tell you “OK!” if it works, and a test file will be uploaded to FTP space. In PORT mode, the FTP server builds the connection to the user's data port actively. However, from the user-side firewall's standpoint, the action of connecting from FTP server is often considered to be dangerous and should be blocked.
  • Page 47: Ci A/V Setting

    A/V Setting Image Setting For the security and privacy purpose, there are three areas can be setup for privacy mask. Click Area button first and drag an area on the above image, and remember to save your setting. The masked area will not show on both the live view and recording.
  • Page 48 under dim light, but the level of noise may also increase. Shutter Time: Choose as the location of your camera or fixed shutter time. The shorter the shutter time is, the less light the camera receives and the image becomes darker. Sense-Up: This function increases the sensitivity of camera to get brighter image at night.
  • Page 49 Note: When you select a number in "Shutter Time", actually the shutter time varies in a range and controlled by camera automatically. Following table shows the shutter time option and corresponding range. Option Shutter Time Range (sec.) Outdoor 1/10000 ~ Selected number in "Sense-up" Indoor NTSC: 1/125 ~ Selected number in "Sense-up"...
  • Page 50 2. Video Setting Video System Setting: Choose the input resolution, the option affects the max value of video frame rate. Choose the Video System, NTSC or PAL. Basic Mode of Streaming 1 and Streaming 2: Resolution: If “1280x1024 @20fps” is selected in Input Resolution op- tion, you can select 1280x1024, 640x480, 320x240,or 176x144 here.
  • Page 51 Advanced Mode of Streaming 1 and Streaming 2: Resolution: If “1280x1024 @20fps” is selected in Input Resolution op- tion, you can select 1280x1024, 640x480, 320x240,or 176x144 here. If “1280x800 @30fps” is selected in Input Resolution, you can select 1280x800, 1280x720, 640x480, 320x240, or 176x144 here. (ii) Bitrate Control Mode: In CBR(Constant Bit Rate) mode, the bitrate keeps consistent all over the video.
  • Page 52 3GPP Streaming mode: To receive video via 3gpp, please remember to enable rtsp server in the "IP Setting" page. 3GPP mode fixed setting: 176x144 resolution, 5FPS, Video compression: MPEG4, Audio compression: AMR. Enable or Disable 3GPP Streaming (ii) 3GPP Path: 3GPP output connecting route. If the IP address of your camera is 192.168.40.150, and you key in "3g"...
  • Page 53 Audio: IP Camera supports 2-way audio. Audio can be receive by the mic connected with the IP camera and transmitted to remote PC. User can also send audio from remote PC mic to IP Camera’s external speaker. IP Camera to PC To receive Audio from IP camera, select “Enable”...
  • Page 54: Di Event List

    Event List IP Camera provides multiple event settings. Event Setting Motion Detection To enable motion detection, please tick "Area 1/2/3". Click "Area 1/2/3" in Area Setting, and draw an area on the preview screen. When motion in the area is detected, "Motion!" word will be marked on the live screen, and the camera can send video or snapshot to specific mail addresses, trigger the output devise, or save video to FTP/ Micro SD card/ Samba.
  • Page 55 B, and send alarm when it found that the lens is uncovered. Record File When a event happens, the IP camera can record a video clip or take snapshot, and then send to mail/ FTP/ Samba. Select what format you want to save.
  • Page 56 Record Time Setting. Record Time Setting When a event happens, the IP camera can record a video clip or take snapshot, and then send to mail/ FTP/ Samba. Select the video recording length before and after event happens.
  • Page 57 Network IP check The same with "Network Dis-connected" function, Network IP chech is designed for avoiding video loss. Even when the Ethernet cable is plugged, the network might be sometimes not stable. Key in the target IP address and interval. The camera checks once in a while according to the setting interval time that if itself can access the target IP address.
  • Page 58 Schedule Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup. Snapshot: After enable the snapshot function, user can select the storage position of snapshot file, the interval time of snapshot and the reserved file name of snapshot.
  • Page 59 I/O Setting Input Setting: IP Camera supports input and output. When the input condition is triggered, it can trigger the relay out, send the video to mail addresses /FTP server / SAMBA. • Intervel: For example, if you select "10 sec" here, once the input alarm is detected and action is triggered, it cannot be triggered again within 10 seconds.
  • Page 60 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure.
  • Page 61 2012/11/19 5:00AM ~ 2012/11/21 5:00AM. The oldest file will be deleted if the SD card is full. Note : The use of the SD card will affect the operation of the IP Camera slightly, such as affecting the frame rate of the video.
  • Page 62 You can insert the Micro SD card to PC and read the files directly, or use FlashGet instead to download the files from IP camera. (In this way you do not need to pull out Micro SD card from the camera.)
  • Page 63 (iv) Click OK to start download. • FlashGet is a free software that can be downloaded from FlashGet official website. The example above is based on FlashGet ver.1.9.6.
  • Page 64: Network Configuration

    IP address: More than one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: Switch Hub For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE.
  • Page 65 • Configuration 3: Internet Access: ADSL or Cable Modem IP address: one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: IP sharing Use virtual IP, set up port forwarding in IP sharing.
  • Page 66: Iiii I/O Configuration

    IIII I/O Configuration I/O Connection Please connect the GND & DO pin to the external relay (buzzer) device. Please connect the GND & DI pin to the external trigger device. When no event happens, DO output is 5V (DO and GND are disconnected). When the camera detects event happening and triggers external alarm, DO output is 0V (DO and GND are connected).
  • Page 67 and then camera will execute the action user has set, for example, send snapshot to E-mail address. I/O PIN definition • GND (Ground): Initial state is LOW • DO (Digital Output): DC 5V • DI (Digital Input): Max. 50mA, DC 5V I/O Setup Click I/O Setting from the system setup page via IE, and check “Out1”...
  • Page 68 (ii) Time Switch mode: Click "Pulse", the camera will trigger the external output devise for several seconds, The duration length is according to the "interval" setting in Output Setting.
  • Page 69: Iiiii Factory Default

    If you forget your password, please follow the steps to revert back to default value. • Remove the power adapter and the ethernet cable. Press and hold the button in the IP CAMERA. • Connect the power to the camera. Don’t release the button during the system booting.
  • Page 70: Iii Universal Password

    III Universal Password If you forgot the password of your IP camera, you can reset the camera to fac- tory default, or follow the procedure below to generate a universal password. Note: Universal password will be valid only when you enable the function in User Management.
  • Page 71 Key in the camera IP address in “IP Adder.” column and MAC in “MAC” column, and then click “encoder”. You will see a set of username and password appear, as below: The universal username and password are generated from the IP address and MAC you key in, so if you change the camera IP address, the universal password changes, too.
  • Page 73: Package Contents

    Package Contents IP Camera Adaptor Quick Installation Guide Screws x3 • Adaptor: AC100-240V DC12V/1A • The CD includes User manual and software tools.
  • Page 74: Micro Sd Card Compatibility

    IIII Micro SD Card Compatibility The following is the Micro SD Card recommended: Transcend SDHC class4 16GB SDHC class4 32GB class4 16GB class4 32GB SDHC class6 SDHC class6 SDHC class6 16GB class6 class6 class6 16GB SDHC class10 4GB SDHC class10 8GB SDHC class10 16GB SanDisk...
