IP Camera User Manual

3-axis indoor dome
Hide thumbs Also See for Ip camera:
Table of Contents

Advertisement

Quick Links

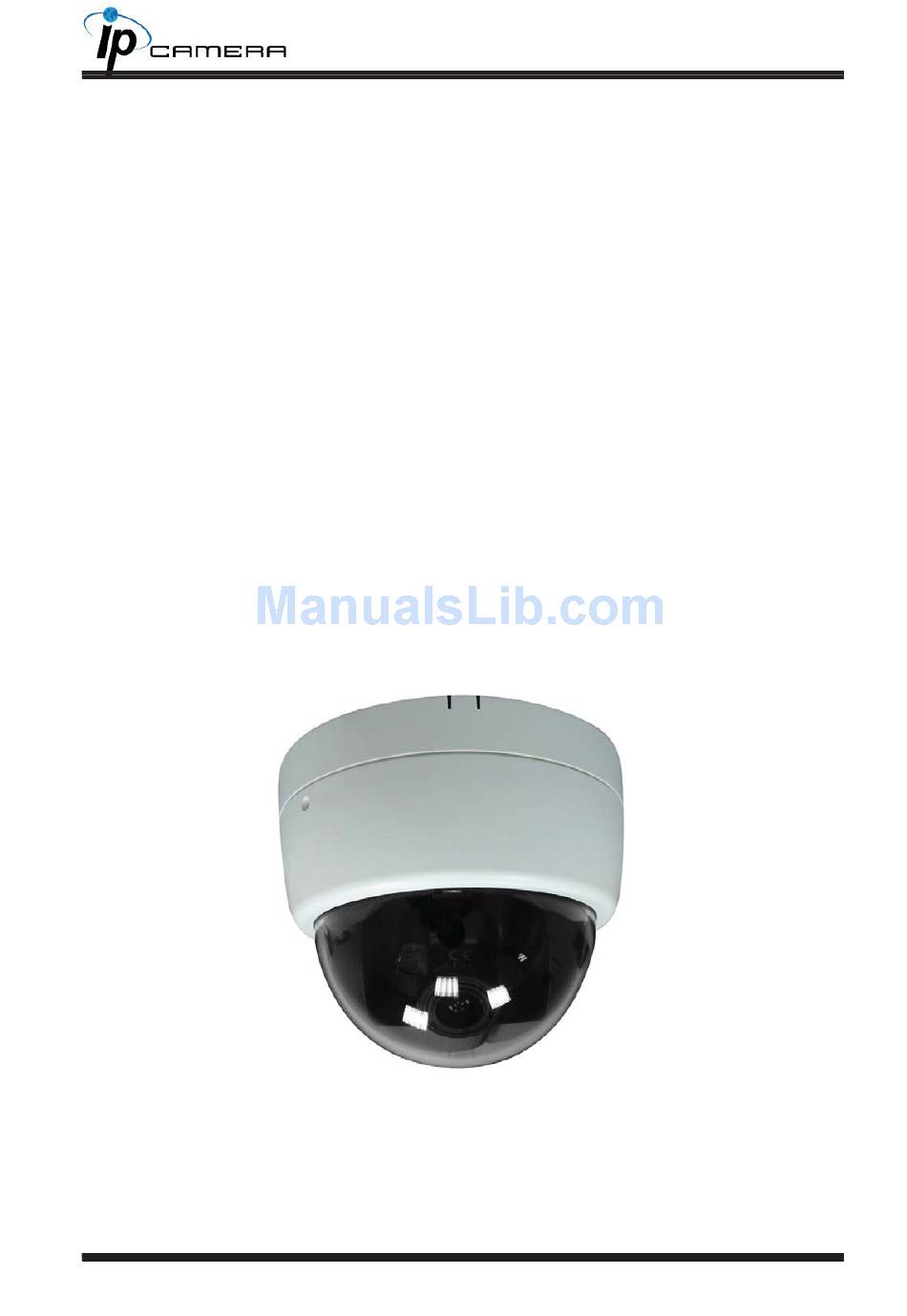

User Manual

3-AXIS INDOOR DOME
IP CAMERA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ip camera and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IP Camera Ip camera

Summary of Contents for IP Camera Ip camera

  • Page 1: User Manual

    User Manual 3-AXIS INDOOR DOME IP CAMERA...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    CONTENT Preface Product Specifications Product Installation III. Monitor Setting Hardware Installation IP Assignment Install ActiveX control Live Video IP Camera Configuration System Network A/V Setting Event List Network Configuration I/O Configuration VII. Factory Default VIII. Package Contents SD Card Compatibility...

  • Page 4: Preface

    Preface This IP Camera is a Full HD 3-Axis Dome IP camera with the web server built in. User can view real-time video via IE browser. IP Camera supports simultaneously H.264, Motion JPEG & MPEG4 video compression and dual streaming which provides smooth and high video quality. The video can be stored in the SD card and played back remotely.
  • Page 5 Video output 3-Axis Gimbal Pan: 175 Adjustments Angle Tilt: 30 ~ 90 Rotation: 172 Audio G.711(64K) and G.726(32K,24K) audio compression Input : External Mic In Output: External Audio Out Power over Ethernet Power consumption DC12V Power consumption Max 4.92W (IR on) / 3.24W (IR off) PoE Power consumption Max 6.24W (IR on) / 4.32W (IR off)
  • Page 6 Simultaneous connection Up to 10 SD card management Recording trigger Motion Detection, IP check, Network break down (wire only), Schedule, DI Video format AVI, JPEG Video playback Delete files Client System requirement Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above, Chrome, Safari, Firefox Mobile Support iOS 4.3 or above, Android 1.6 or above.

  • Page 7: Product Installation

    Product Installation III. Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit).

  • Page 8: Hardware Installation

    Hardware Installation Dome Installation Steps Use screws to lock the bottom of camera to the ceiling or the wall. Use 3-Axis to adjust the lens angle. Close the dome cover. Tighten the screw on the cover to fix it. 3-Axis Diagram Use the 3-Axis bracket to adjust the camera to appropriate angle.
  • Page 9 Connector Instruction The Cable and connector is as below. Connect power adaptor first, then connect the IP Camera to PC or network, and set up the network configurations according to the network environment. About I/O setting, please refer to chapter VII in User Manual: "I/O...

  • Page 10: Ip Assignment

    IP Assignment You can use the software“IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. There are two language versions of IP installer. Choose one as your need: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version There are 3 kinds of IP configuration.
  • Page 11 Click one of the IP Camera listed on the left side. The network configuration of this IP camera shows on the right side. You may change the “name” of the IP Camera as your preference (eg: Office, warehouse). Change the parameter and click “Submit”...

  • Page 12: Install Activex Control

    If you link to the IP Camera successgully, there pops a box asking you to log in. Please key in the default user name"admin" and password"admin" when you link to the IP Camera for the first time. You can revise the user name and password later. Please refer to Chapter V: "A.2.
  • Page 13 When popup the following dialogue box, click “Yes”.

  • Page 14: Live Video

    Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 15 The "mute" botton does not affect the playback recording video. As long as the "IP Camera to PC" option in the audio setting is enabled, all the audio will be recorded into the playback video even you click "mute" in the live page.

  • Page 16: Ip Camera Configuration

    IP Camera Configuration Click to get into the administration page as below. Click to back to the live video page.

  • Page 17: System

    System System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. (ii) Select language: There are 11 languages to choose from. When you change the language, it will show the following dialogue box for confirmation.
  • Page 18 Server time setting: Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. Note: To synchronize with the NTP Server, please set the IP camera up on the WAN instead of LAN.
  • Page 19 Anonymous User Login: Yes: anonymous login is allowed No: Username & password are required to access this IP camera Add user: Type the user name and password, then click “Add/Set”.The guest user can only browse the live video page and is not allowed to enter the configuration page.
  • Page 20 Reboot system:re-start the IP camera Factory default:delete all the settings in this IP camera. Setting Management:User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 21: Network

    Network IP Setting IP Assignment IP Camera supports DHCP and static IP. DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. (ii) Static IP: Please type in IP address, subnet mask, gateway, and DNS manually. IPv6 Assignment IPv6 is a newer numbering system that provides a much larger address pool than IPv4, which accounts for most of today’s Internet traffic.
  • Page 22 HTTP Port:setup HTTPS connecting port (Default:443) UPnP (Universal Plug and play) This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.”...
  • Page 23 Windows may ask your confirmation for enabling the components. Click "Yes". • Now you can see the IP devise under the LAN. Double-click the icon to access the camera via web browser. To disable the UPnP, click "Hide icons for networked UPnP devises" in the tasks column.
  • Page 24 RTSP setting If you have a media player that supports RTSP protocal, you can use it to receive the video streaming from IP camera. The RTSP address can be set for two streamings respectively. Please jump to Chapter V-C:"Video Setting". There're setting field for RTSP address of two streamings.
  • Page 25 Bonjour This function enable MAC systems to link to this IP camera. Key in the name here. The web browser "Safari" also has Bonjour function. Tick "Include Bonjour" in the bookmark setting, and you can see the IP camera appearing...
  • Page 26 LLTD If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position(like IP address) of this IP Camera in the network map. In the computer running Windows Vista or Windows 7, you can find LLTD through the path: Call out the Control Panel →...
  • Page 27 Advanced Https (Hypertext Transfer Protocol Secure): Https can help protect streaming data transmission over the internal on the higher security level. You can select the connection type. "Https" means user cannot connect the camera via Http protocal. The Https path will be: "https://(IP address)/". If you select "Http &...
  • Page 28 The term "Community name" in SNMPv1 and SNMPv2c can be roughly regarded as key. The person who has the community name has the authority to read or edit the information of IP camera via SNMP. Tick the box to enable SNMPv1 or SNMPv2c protocal, and specify the community name for write(read and write) and read(read-only).
  • Page 29 "community name" in v1&v2c, or sometimes we call it "context name") but the password in order to access the IP camera. Please set security name, authentication type, authentication password, encryption type, encryption password of write and read respectively.
  • Page 30 You can deny a IP address or a range of IP address so that they cannot access the IP camera. Tick the "enable" box, key in the IP address you want to deny, select"deny" then click"Add" to add it to the list.
  • Page 31 192.168.50.159 can access. Note: In the list "allow" condition must be ranked before "deny" condition. For example, if we exchange the sequense, set "Deny: 192.168.50.151~192.168.50.161" for the first item and "Allow: 192.168.50.159" for the second item in the list, the IP "192.168.50.159" turns out to be denied by the camera because the "deny"...
  • Page 32 IEEE 802.1x IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to device wishing to attach to a LAN or WLAN. The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment. Please check what version of the authenticator and authentication server support.
  • Page 33 PPPoE & DDNS PPPoE: Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to Server settings.
  • Page 34 (vi) DDNS Status • Updating: Information update • Idle: Stop service • DDNS registration successful, can now log by http://<username>. ddns.camddns.com: Register successfully. • Update Failed, the name is already registered: The user name has already been used. Please change it. •...
  • Page 35 Server setting The settings of Email, FTP and SAMBA are used when the event happens, schedule snapshot executes, or the alarm input is triggered. Select the item to display the detailed configuration options. You can configure either one or all of them. Mail Setting: Set up the server address and account information of your e-mail.
  • Page 36 connection. A message box will tell you “OK!” if it works, and a test file will be uploaded to FTP space. In PORT mode, the FTP server builds the connection to the user's data port actively. However, from the user-side firewall's standpoint, the action of connecting from FTP server is often considered to be dangerous and should be blocked.

  • Page 37: A/V Setting

    A/V Setting Image Setting For the security and privacy purpose, there are three areas can be setup for privacy mask. Click Area button first and drag an area on the above image, and remember to save your setting. The masked area will not show on both the live view and recording.
  • Page 38 the level of noise may also increase. Shutter Time: Choose as the location of your camera or fixed shutter time. The shorter the shutter time is, the less light the camera receives and the image becomes darker. Sense-Up: This function increases the sensitivity of camera to get brighter image at night.
  • Page 39 Video Setting Video System Setting: Choose the Video System (digital signal) and TV Output (analog signal). b. Basic Mode of Streaming 1 and Streaming 2: Resolution: 1920x1080,1280x720 , 640x480, 320x240, or 176x144 (ii) Profile: Profiles are different compression way of H.264. High profile provides better coding efficiency.
  • Page 40 Advanced Mode of Streaming 1 and Streaming 2: Resolution: 1920x1080,1280x720 , 640x480, 320x240, or 176x144 (ii) Profile: High profile provides better coding efficiency. Note that some devises do not support every profile. For example, iPhone4 only supports Main profile. (iii) Bitrate Control Mode: In CBR(Constant Bit Rate) mode, the bitrate keeps consistent all over the video.
  • Page 41 better the quality is. (viii) Video Format: H.264 or M-JPEG (ix) RTSP Path: RTSP output connecting route 3GPP Streaming mode: 3GPP Streaming is designed for mobile viewing. Please lower the resolution, bitrate, or frame rate if the image flow isn't smooth when you use the mobile phone.
  • Page 42 Audio: IP Camera supports 2-way audio. Audio can be receive by the built-in mic in the IP camera and transmitted to remote PC. User can also send audio from remote PC mic to IP Camera’s external speaker. IP Camera to PC To receive Audio from IP camera, select “Enable”...

  • Page 43: Event List

    Event Setting Motion Detection IP CAMERA allows 3 areas motion detection. When motion is detected, it can send video to some specific mail addresses, trigger the output devise, or save video to remote FTP / Micro SD card / Samba. To set up the motion area, click “Area Setting”.
  • Page 44 Record File Choose one of the format, AVI or JPEG . Record Time Setting Set up the video recording time for Pre Alarm and Post Alarm when motion is detected, I/O, or other devices is triggered. Note: Pre/Post Alarm record time is base on record time setting and restricted to IP Cam built-in Ram memory.
  • Page 45 Schedule Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup. Snapshot: After enable the snapshot function, user can select the storage position of snapshot file, the interval time of snapshot and the reserved file name of snapshot.
  • Page 46 I/O Setting Input Setting: IP Camera supports input and output. When the input condition is triggered, it can trigger the relay, send the video to mail addresses /FTP server / SAMBA. • Intervel: For example, if you select "10 sec" here, once the motion is detected and action is triggered, it cannot be triggered again within 10 seconds.
  • Page 47 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure.
  • Page 48 five o’clock yesterday to five o’clock today. The oldest file will be deleted if the SD card is full. Note The use of the SD card will affect the operation of the IP Camera slightly, such as affecting the frame rate of the video.

  • Page 49: Network Configuration

    IP address: More than one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: Switch Hub For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE.
  • Page 50 • Configuration 3: Internet Access: ADSL or Cable Modem IP address: one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: IP sharing Use virtual IP, set up port forwarding in IP sharing.

  • Page 51: Vii. I/O Configuration

    VII. I/O Configuration I/O Connection Please connect the GND & DO pin to the external relay (buzzer) device. Please connect the GND & DI pin to the external trigger device. I/O PIN definition • GND (Ground): Initial state is LOW •...
  • Page 52 "Relay Out" bottom on the live video page to test if DO / Relay Out works. OnOff Switch mode: Click "ON", the camera will trigger the external output devise for 10 seconds. For example, your alarm buzzer will continuously ring for 10 seconds.

  • Page 53: Factory Default

    Factory Default VIII. If you forget your password, please follow the steps to revert back to default value. • Remove the power and ethernet cable. Open the dome cover, and press and hold the button as the picture below. • Connect power to the camera again, and do not release the button during the system booting.

  • Page 54: Package Contents

    Package Contents IP Camera Adaptor Quick Installation Guide Wall Plug x4 Screws x5 • Adaptor: AC100-240V DC12V/1A • One of the screw is for locking dome cover, the other four screws are for the camera base. • The CD includes User manual and software tools.

  • Page 55: Sd Card Compatibility

    SD Card Compatibility The following is the compatible SD Card, and those in red are especially recommended: SD CARD ADATA 4G SanDisk 512M ADATA 512M SanDisk 8G Blast 128M SiliconPower 128M GiGATEK 128M SiliconPower 256M Kingmax 256M TEKQ 128M Kingston 128M TEKQ 256M Kingston 1G Toshiba 128M...
