  • Page 1: User Manual

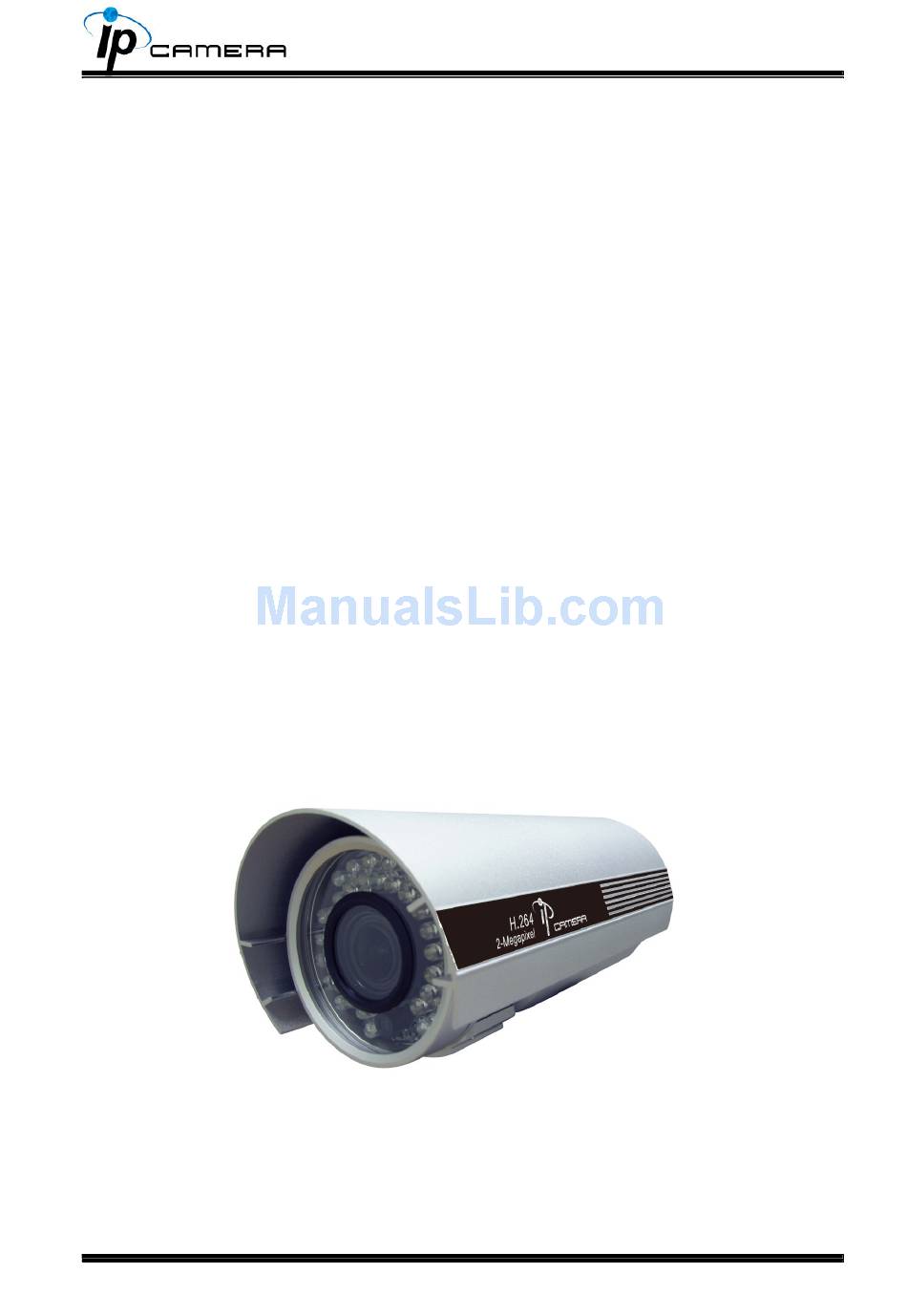

    User Manual WATERPROOF IR IP CAMERA...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).
  • Page 3: Table Of Contents

    CONTENT Preface Product Specifications IIII Product Installation Monitor Setting Hardware Installation IP Assignment Install ActiveX control Live Video IP Camera Configuration System Network A/V Setting Event List Network Configuration IIII I/O Configuration IIIII Factory Default Package Contents SD Card Compatibility...
  • Page 4: Preface

    Preface This IP Camera is a 2 Megapixle CMOS IP camera with the web server built in. User can view real-time video via IE browser. IP Camera supports simultaneously H.264, Motion JPEG & MPEG4 video compression and dual streaming which provides smooth and high video quality. The video can be stored in the SD card and played back remotely.
  • Page 5 Mechanism IR cut Filter Built-in 35 IR LED IR Distance-20M 1 in/ 1 Relay Out Video Out Audio In Audio Out Power over Ethernet Yes (Optional) Power Consumption DC 12V Power consumption :IR on 6.5W, IR 0ff 4.8W POE Power consumption: IR on 9.3W, IR off 6.9W Dimensions ∮...
  • Page 6 Video Playback Delete Files Client System requirement Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above Hardware Suggested Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB *SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 7: Iiii Product Installation

    IIII Product Installation Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit).
  • Page 8: Bi Hardware Installation

    Connector Instruction The Cable and connector is as below. Connect power adaptor first, then connect the IP Camera to PC or network, and set up the network configurations according to the network environment. About I/O setting, please refer to chapter VII in User Manual: "I/O...
  • Page 9 device, such as an IP phone or a network camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations and enables easier application of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days a week operation.
  • Page 10: Ci Ip Assignment

    IP Assignment You can use the software“IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. There are two language versions of IP installer. Choose one as your need: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version There are 3 kinds of IP configuration.
  • Page 11 Click one of the IP Camera listed on the left side. The network configuration of this IP camera shows on the right side. You may change the “name” of the IP Camera as your preference (eg: Office, warehouse). Change the parameter and click “Submit”...
  • Page 12: Di Install Activex Control

    If you link to the IP Camera successgully, there pops a box asking you to log in. Please key in the default user name"admin" and password"admin" when you link to the IP Camera for the first time. You can revise the user name and password later. Please refer to Chapter V: "A.2.
  • Page 13 When popup the following dialogue box, click “Yes”.
  • Page 14: Live Video

    Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 15 The "mute" botton does not affect the playback recording video. As long as the "IP Camera to PC" option in the audio setting is enabled, all the audio will be recorded into the playback video even you click "mute" in the live page.
  • Page 16: Ip Camera Configuration

    IP Camera Configuration Click to get into the administration page as below. Click to back to the live video page.
  • Page 17: Ai System

    System System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. (ii) Select language: There are 11 languages to choose from. When you change the language, it will show the following dialogue box for confirmation.
  • Page 18 Server time setting: Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. Note: To synchronize with the NTP Server, please set the IP camera up on the WAN instead of LAN.
  • Page 19 Anonymous User Login: Yes: anonymous login is allowed No: Username & password are required to access this IP camera Add user: Type the user name and password, then click “Add/Set”.The guest user can only browse the live video page and is not allowed to enter the configuration page.
  • Page 20 Reboot system: Re-start the IP camera Factory default: Delete all the settings in this IP camera. Setting Management: User may download the current setting to PC, or upgrade from previous saved setting.
  • Page 21: Bi Network

    Web Page Port: setup web page connecting port and video transmitting port (Default: 80) UPnP (Universal Plug and play) This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.”...
  • Page 22 Forwarding to let the router open ports so that the video streams can be sent out from a LAN. Set Web Port and RTSP port, and make sure your router supports UPnPTM and the function has been activated. (ii) Note: UPnP must be enabled on your computer. Please follow the procedure to activate UPnP.
  • Page 23 RTSP setting If you have a media player that supports RTSP protocal, you can use it to receive the video streaming from IP camera. The RTSP address can be set for two streamings respectively. Please jump to Chapter V-C:"Video Setting". There're setting field for RTSP address of two streamings.
  • Page 24 Multicast Setting (Based on the RTSP Server) Multicast is a bandwidth conservation technology. This function allow several user to share the same packet sent from IP camera. To use Multicast, appoint IP Address and port here. TTL means the life time of packet, The larger the value is, the more user can receive the packet.
  • Page 25 PPPoE PPPoE Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connecting to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to Server settings.
  • Page 26 DDNS: The camera supports DDNS (Dynamic DNS) service. Enable this service (ii) Key-in the DynDNS account host name, user name, and password that you had applied to the service provider . (If you choose to use Camddns, just key in any user name as you like.) (iii) Set up the IP Schedule update refreshing rate.
  • Page 27 Server setting The settings of Email, FTP and SAMBA are used when the event happens, schedule snapshot executes, or the alarm input is triggered. Select the item to display the detailed configuration options. You can configure either one or all of them. Mail Setting: Set up the server address and account information of your e-mail.
  • Page 28 connection. A message box will tell you “OK!” if it works, and a test file will be uploaded to FTP space. In PORT mode, the FTP server builds the connection to the user's data port actively. However, from the user-side firewall's standpoint, the action of connecting from FTP server is often considered to be dangerous and should be blocked.
  • Page 29: Ci A/V Setting

    A/V Setting Image Setting Privacy Mask: For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and drag an area on the above image. Finally, click Save button to reserve the setting. Brightness, Contrast, and Sharpness can be adjusted here.
  • Page 30 subjects might be blurred. Day & Night: The camera can detect the light level of environment. If you choose "Light Sensor Mode", the image will be turned to black and white at night in order to keep clear. To set light sensor mode, appoint a lux stantard of switching D/N here.
  • Page 31 Video Setting Video System Setting: The Input resolution affects the video resolution and the frame rate options. Choose the Video System (digital signal) and TV Output (analog signal). b. Basic Mode of Streaming 1 and Streaming 2: Resolution: 1600x1200, 1280x1024, 1280x960, 1280x720, 800x592, 640x480, 320x240, or 176x144 (ii) Quality: The higher the quality is, the bigger the file size is.
  • Page 32 Advanced Mode of Streaming 1 and Streaming 2: Resolution: 1600x1200, 1280x1024, 1280x960, 1280x720, 800x592, 640x480, 320x240, or 176x144 (ii) Bitrate Control Mode: In CBR(Constant Bit Rate) mode, the bitrate keeps consistent all over the video. In VBR(Variable Bit Rate) mode, the bitrate changes with the complexity extent of the video data.
  • Page 33 3GPP Streaming mode: The rtsp here is seperated from the rtsp setting in the "IP SETTING". 3GPP Streaming can still work even you select "disabled" in the rtsp server option of IP Setting. 3GPP mode fixed setting: 176x144 resolution, 5FPS, Video compression: MPEG4, Audio compression: AMR.
  • Page 34 Audio: IP Camera supports 2-way audio. Audio can be receive by the built-in mic in the IP camera and transmitted to remote PC. User can also send audio from remote PC mic to IP Camera’s external speaker. IP Camera to PC To receive Audio from IP camera, select “Enable”.
  • Page 35: Di Event List

    Motion Detection Motion Detection Area: IP CAMERA allows 3 areas motion detection. When motion is detected, it can send video to specific mail addresses, trigger the output devise, or save video to remote FTP / SD card / Samba. To set up the motion area, click “Area Setting”.
  • Page 36 (ii) Intervel: For example, if you select "10 sec" here, once the motion is detected and action is triggered, it cannot be triggered again within 10 seconds. (iii) Based on the schedule: When the option box is ticked, only during the selected schedule time the motion detection is enabled.
  • Page 37 Network IP check: Key in the target IP address and interval. The camera checks once in a while according to the setting interval time that if itself can linked to the target IP address. If connection failed, the camera starts to save the video to SD card.
  • Page 38 Schedule Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup. Snapshot: After enable the snapshot function, user can select the storage position of snapshot file, the interval time of snapshot and the reserved file name of snapshot.
  • Page 39 I/O Setting Input Setting: IP Camera supports input and output. When the input condition is triggered, it can trigger the relay, send the video to mail addresses /FTP server / SAMBA. • Intervel: For example, if you select "10 sec" here, once the motion is detected and action is triggered, it cannot be triggered again within 10 seconds.
  • Page 40 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure.
  • Page 41 The oldest file will be deleted if the SD card is full. Note : The use of the SD card will affect the operation of the IP Camera slightly, such as affecting the frame rate of the video.
  • Page 42: Network Configuration

    IP address: More than one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: Switch Hub For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE.
  • Page 43 • Configuration 3: Internet Access: ADSL or Cable Modem IP address: one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: IP sharing Use virtual IP, set up port forwarding in IP sharing.
  • Page 44: Iiii I/O Configuration

    IIII I/O Configuration I/O Connection Please connect the the external output device (ex.siren) to N.O & COM or N.C & COM. (Depends on the output devise) Please connect the GND & ALARM pin to the external trigger device. I/O PIN definition •...
  • Page 45 Output Test After the external input and output hardware is installed, you can use the "Relay Out" bottom on the live video page to test if DO / Relay Out works. OnOff Switch mode: Click "ON", the camera will trigger the external output devise for 10 seconds.
  • Page 46: Iiiii Factory Default

    IIIII Factory Default If you forget your password, please follow the steps to revert back to default value. • Remove the power and ethernet cable. • Plugging the pink "default wire” into “GND” as the picture below. • Connect power to the camera again. It takes around 30 seconds to boot the camera.
  • Page 47: Package Contents

    Package Contents IP Camera Bracket Quick Installation Guide Adapter RJ45 Female to Female Connector • Adapter: AC100-240V DC12V/1A • The CD includes User manual and software tools.
  • Page 48: Sd Card Compatibility

    SD Card Compatibility The following is the compatible SD Card, and those in red are especially recommended: SD CARD ADATA 4G SanDisk 512M ADATA 512M SanDisk 8G Blast 128M SiliconPower 128M GiGATEK 128M SiliconPower 256M Kingmax 256M TEKQ 128M Kingston 128M TEKQ 256M Kingston 1G Toshiba 128M...
