IP Camera HLC-830 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
v.1.6
HLC-830 series
1/27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLC-830 Series and is the answer not in the manual?

Questions and answers

Related Manuals for IP Camera HLC-830 Series

Summary of Contents for IP Camera HLC-830 Series

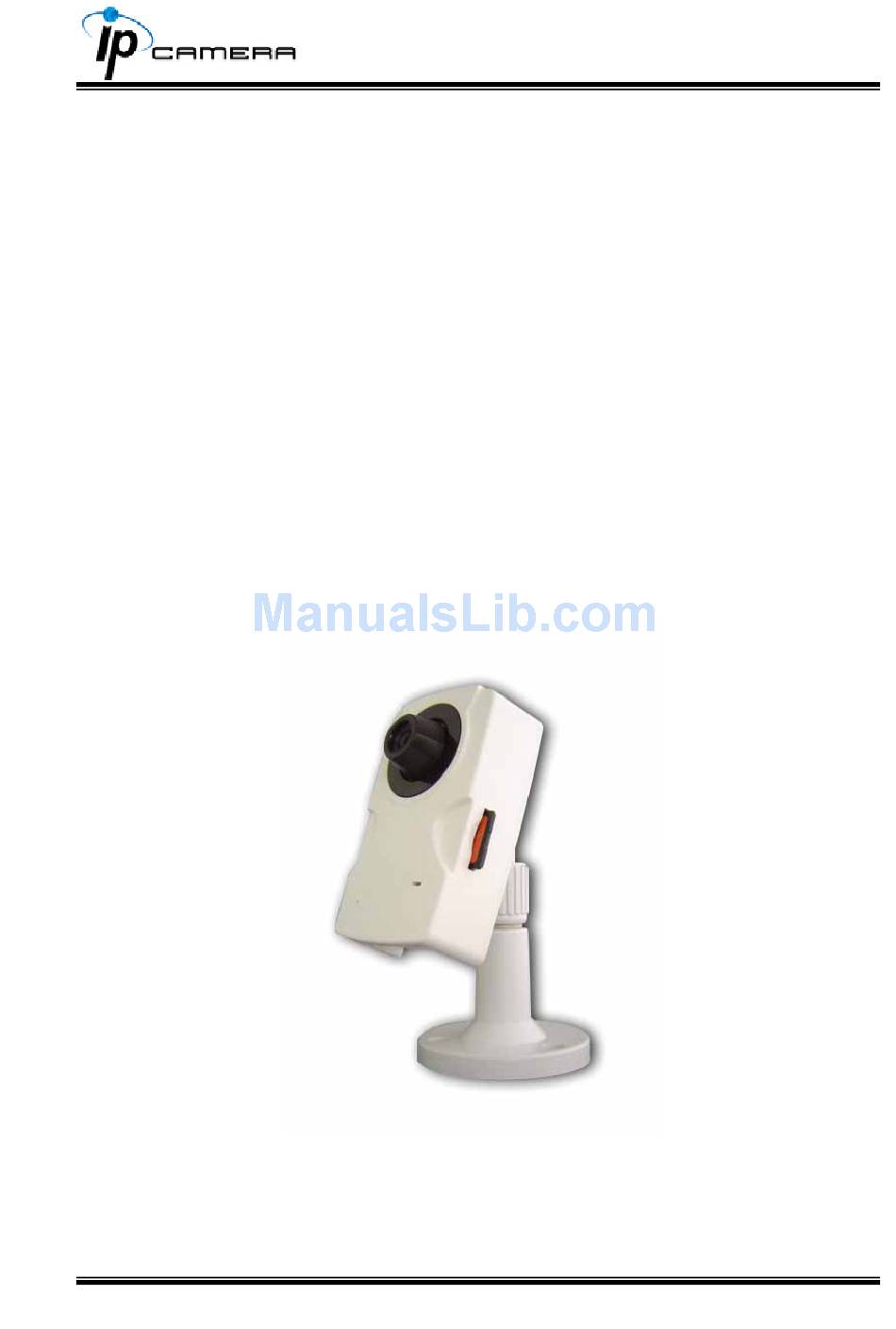

  • Page 1 User Manual v.1.6 HLC-830 series 1/27...

  • Page 2: Table Of Contents

    Content PREFACE............................3 PRODUCT SPECIFICATIONS ....................... 3 III. PRODUCT INSTALLATION....................... 5 ......................5 ARDWARE NSTALLATION IP A ..........................5 SSIGNMENT ........................7 ONITOR ETTING : ......................8 NSTALL CTIVE CONTROL LIVE VIDEO ..........................10 HLC-830 CONFIGURATION ......................11 ............................. 12 YSTEM ..........................

  • Page 3: Preface

    I. Preface HLC-830 is a CMOS IP camera. It builds in web server. User views real-time video via IE browser. HLC-830 supports MPEG-4 video compression which provides smooth and high quality video. The video can be stored in the SD card, and can be playback remotely.
  • Page 4 Hardware ARM 9 ,32 bit RISC 64MB Image sensor 1/4” CMOS Microphone Built-in Network Ethernet 10/ 100 Base-T Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP Wireless (Optional) Wireless 802.11b/g 64/ 128 bit System Video Resolution 640x480, 320x240, 160x120 Video adjust Brightness, Contrast, Saturation, Hue Image snapshot...

  • Page 5: Product Installation

    III. Product Installation A. Hardware Installation Connect power adaptor Connect ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for HLC-830”. B. IP Assignment Use the software, “IP Installer” to assign the IP address of HLC-830. The software is in the attached software CD.
  • Page 6 IP Installer searches all the IP cameras which connect to the intranet and lists on the left side of the IP Installer. Just click the “Search Device” to re-search again. viii. Click one of the IP camera listed on the left side. The network 6/27...

  • Page 7: Monitor Setting

    IP camera will show on the right side. Change the parameter and click “Submit”. The following dialogue box will show. Just click “OK”. It will the change the IP and reboot the camera. Click “Search Device” to research the IP camera. Double click the IP camera listed on the left side.

  • Page 8: Install Active Xcontrol

    D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options… Security Tab Custom Level…...
  • Page 9 When popup the following dialogue box, click “Yes”. 9/27...

  • Page 10: Live Video

    IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.

  • Page 11: Hlc-830 Configuration

    : Get into the administration page : Video Snapshot Shows how many people connect to this IP camera Show system time, video resolution, and video refreshing rate HLC-830 supports 2-way audio. Click the “Chatting” check box. The you can use microphone which connect to the PC to talk to server side, which is HLC-830 side.

  • Page 12: Ystem

    A.System i、 System Information Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. Select language: There are English, Traditional Chinese, and Simple Chinese to select.
  • Page 13 HLC-830 supports three different users, administrator, general user, and anonymous user. Anonymous User Login: Yes: Allow anonymous login No: Need user name & password to access this IP camera Add user: Type the user name and password, then click “Add/Set”. 13/27...

  • Page 14: Network

    To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to the procedure. Reboot system: re-start the IP camera Factory default: delete all the settings in this IP camera. B.Network i、 IP Setting HLC-830 supports DHCP and static IP.
  • Page 15 Static IP：Type IP address, subnet mask, gateway, and DNS manually. DHCP：Using DHCP, HLC-830 will get all the network parameters automatically. 1.1.1 PPPoE: Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account.
  • Page 16 DynDNS； Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP refreshing rate. Click “Apply” Camddns service: Key-in user name. Click “Apply”. DDNS Status 16/27...
  • Page 17 Updating: Information update Idle: Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com: Register successfully. Update Failed, the name is already registered: The user name has already been used. Please change it. Update Failed, please check your internet connection: Network connection failed.

  • Page 18: Multimedia

    C.Multimedia i、 Image Setting Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” and “AE Reference” to get clear video. 18/27...
  • Page 19 It will get clear vision in low light condition, when “Night Mode” is enabled. The frame rate will slow down when the “Night mode” is opened. ii、 Video Setting Basic Mode: Resoultion: There are 3 resolutions to choose. VGA – 640X480 CIF –...
  • Page 20 Video System: Please select 60 (Hz) if you are in America, Taiwan… Please select 50 (Hz) if you are in Europe, China… iii、 Audio: HLC-830 supports 2-way audio. For IP camera to local PC, select “Enable” to start this function. 20/27...

  • Page 21: Event

    For local PC to IP camera, check “chatting” in the browsing page. The Audio will not be smooth when enable SD card recording function simultaneously. D.Event HLC-830 provides multiple event settings. i、 Event Setting Motion Detection 21/27...
  • Page 22 HLC-830 allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, and save video to local SD card. To set up the motion area, click “Area Setting”. Using mouse to drag the area.
  • Page 23 ii、 Mail & FTP To send out the video via mail of ftp, please set up the configuration first. iii、 SD card Please Insert SD card before use it. Make sure pushing SD card into the slot completely. Note: The use of the SD card will affect the operation of the HLC-830 slightly, such as affecting the frame rate of the video.

  • Page 24: Network Configuration

    this page. It will show the list of the video. The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, then click Del. When the SD card is full, it will remove the oldest video automatically. Record Setting The Pre/ Post Alarm are adjustable in HLC-830.
  • Page 25 Internet Access: ADSL or Cable Modem IP address: One real IP or one dynamic IP Only HLC-830 connects to the internet For fixed real IP, set up the IP into HLC-830. For dynamic IP, start PPPoE. Configuration 2: Internet Access: ADSL or Cable Modem IP address: More than one real IP or one dynamic IP HLC-830 and PC connect to the internet Device needed: Switch Hub...

  • Page 26: Factory Default

    Internet Access: ADSL or Cable Modem IP address: one real IP or one dynamic IP HLC-830 and PC connect to the internet Device needed: IP sharing Use virtual IP, set up port forwarding in IP sharing. VII. Factory Default To recover the default IP address and password, please follow the following steps.

  • Page 27: Package Contents

    name (admin), password (admin). VIII. Package contents HLC-830 Network Camera Adaptor Ethernet Cable CD title (User manual, IP installation Utility) 27/27...
