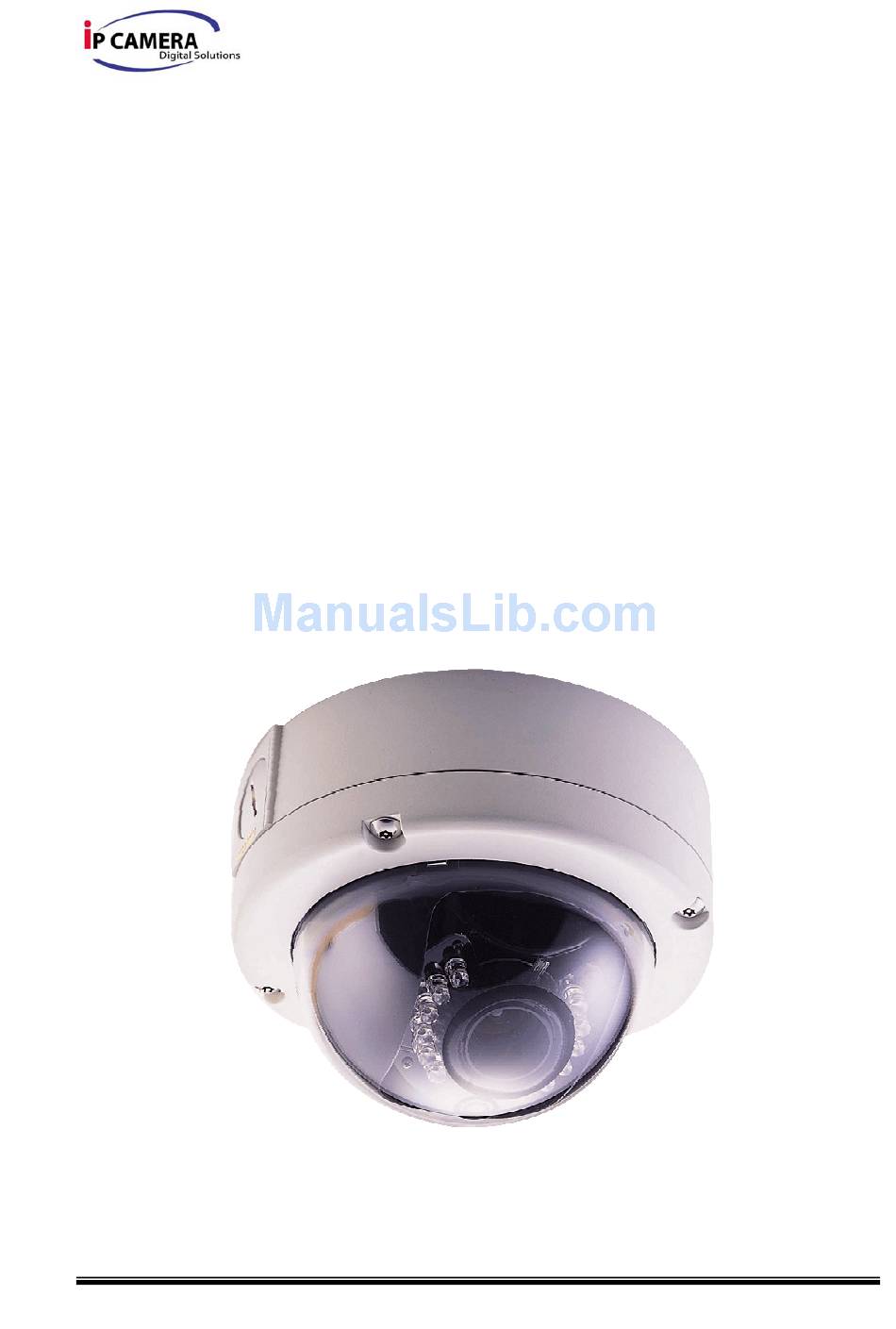

User Manual

3-AXIS
IP Dome Camera
1/40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-IRDNHRWD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IP Camera IP-IRDNHRWD

Summary of Contents for IP Camera IP-IRDNHRWD

  • Page 1: User Manual

    User Manual 3-AXIS IP Dome Camera 1/40...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE............................4 PRODUCT SPECIFICATIONS ....................... 4 III. PRODUCT INSTALLATION ......................6 ............................. 6 ONITOR ETTING I/O P ................7 ARDWARE NSTALLATION AND SSIGNMENT IP A ............................11 SSIGNMENT :........................13 NSTALL CTIVE CONTROL LIVE VIDEO..........................15 CONFIGURATION........................17 ..............................18 YSTEM ..............................

  • Page 4: Preface

    H.264/JPEG/ MPEG4 (3GPP Only) video compression with CCD Sensor which provides smooth and high video quality. The video can be stored in the SD card, and can be playback remotely. 3-Axis IP Dome is an easy-to-use IP Camera which is designed for security application. II. Product Specifications...
  • Page 5 Built-in 18 IR LED (optional) IR Distance-12M (Optional) 1 in/ 1 Relay Out Video Out Audio In Audio Out Power over Ethernet Yes (Optional) Power Consumption DC 12V 470mA Pan: 175∘ 3-Axis Gimbal Tilt 75∘ Adjustments Angle Rotation 180∘ ∮132 * H 108.4 Dimensions Network Ethernet...

  • Page 6: Product Installation

    Connection Audio Yes, 2-way SD card management Recording Trigger Motion Detection, IP check, Network break down (wire only),schedule, alarm Video Format AVI, JPEG Video Playback Delete Files Web browsing requirement Windows 2000, XP, 2003, Microsoft IE 6.0 or above Hardware Suggested Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB...

  • Page 7: Hardware Installation And I/O Pin Assignment

    B. Hardware Installation and I/O Pin Assignment Connect a power adapter and IP Camera to PC or local network I/O Control Instruction I/O terminal connector – used in application, for e.g., motion detection, event triggering, alarm notifications. It provides the interface to: 1 Digital Input (GND+Alarm) –...
  • Page 8 and the input becomes active. Relay output (COM +N.O.) / (COM+N.C.) – An output to Relay switch, for example: LEDs, Sirens, etc iii. Digital Input Alarm Input 1. GND (Ground) : Initial state is LOW 2. Alarm : Max. 50mA, DC 3.3V Relay Output 1.
  • Page 9 2. Relay Output Connection ALARM N.C. N.O. ALARM N.C. N.O. 9/40...
  • Page 10 (UPS) to ensure 24 hours a day, 7 days a week operation. Ethernet PoE IP Camera PoE Switch Ethernet Cable Ethernet Cable PoE IP Camera...

  • Page 11: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP CAMERA. The software is in the attached software CD. IP installer supports two languages IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration.
  • Page 12 Properties Internet Protocol (TCP/IP) Properties Please make sure your IP Camera and PC have the same Subnet. If not, please change IP Camera subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list”...

  • Page 13: Install Active Xcontrol

    Then, please key in the default “user name: admin” and “password: admin”. D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options…...
  • Page 14 When popup the following dialogue box, click “Yes”. 14/40...

  • Page 15: Live Video

    IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 16 (When streaming 2 setting in『Video Setting』 is closed, this function will not display) IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connects to the PC to talk to server side, which is IP Camera side Control the relay which is connected to this camera.

  • Page 17: Configuration

    V. Configuration Click to get into the administration page. Click to go back to the live video page. 17/40...

  • Page 18: Ystem

    A.System i、 System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 19 IP CAMERA supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP camera Add user： Type the user name and password, then click “Add/Set”. Click “edit” or “delete” to modify the user.
  • Page 20 20/40...
  • Page 21 To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP camera Factory default：delete all the settings in this IP camera. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 22: Network

    B.Network i、 IP Setting IP Camera supports DHCP and static IP. DHCP：Using DHCP, IP Camera will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 23 This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.” Note: UPnP must be enabled on your computer. Please follow the procedure to activate UPnP...
  • Page 24 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 25 Camddns service： Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.

  • Page 26: A/V Setting

    Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. Moreover, IP CAMERA supports “Back Light Compensation”, “Night Mode” and “Video Orientation”. Among CCD Setting, user can adjust “Electronic Shutter”, “IRIS Level”...
  • Page 27 ii、 Video Setting User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode (Max Video Frame Rate for both streaming combined is 30 FPS) Streaming 1 Basic Mode： Resolution：...
  • Page 28 Streaming 1 Advanced Mode： Resolution： There are 4 resolutions can be chosen. D1 – 720 x 480 4CIF – 704 x 480 CIF – 352 x 240 QCIF – 176 x 144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use.
  • Page 29 Streaming 2 Basic Mode： Resolution： There are 4 resolutions can be chosen. D1 – 720 x 480 4CIF – 704 x 480 CIF – 352 x 240 QCIF – 176 x 144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is.
  • Page 30 There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate： The video refreshing rate per second. Video Format：H.264 or JPEG RTSP Path: RTSP output name 3GPP Streaming mode: 3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format...
  • Page 31 Camera Built-in mic to remote PC; User can also send audio from remote PC to IP Camera’s external speaker. Audio from IP camera built-in mic to local PC: select “Enable” to start this function. Audio from local PC to IP Camera: Check “chatting” in the browsing page.

  • Page 32: Event List

    IP CAMERA provides multiple event settings. i、 Event Setting Motion Detection： IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 33 When motion/alarm is triggered, there are 3 different types of record mode. AVI File (With Record File Setting ) Multi-JPEG (With Record File Setting), only with JPEG compression format. Single JPEG (Single File with Interval Setting) Record Time Setting： Pre Alarm and Post Alarm setups for video start and end time when motion detected, I/O, or other devices got triggered.
  • Page 34 I/O Setting IP CAMERA supports 1 input/ 1 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 35 Trigger a normal off (Normal Open) alarm siren on when event/motion occur at COM: 9PIN D-SUB WEB SERVER / IP CAMERA GPIO INSTALLATION EXAMPLE 2 Trigger the normal on (Normal Close) indoor illumination off when event / motion occur at COM:...
  • Page 36 iv、 Mail & FTP To send out the video via mail of ftp, please set up the configuration first. v、 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. vi、...
  • Page 37 slot completely. Note：The use of the SD card will affect the operation of the IP CAMERA slightly, such as affecting the frame rate of the video. Playback： It will show the capacity of the SD card. Click the date listed on this page.

  • Page 38: Network Configuration

    IP address：More than one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed：Switch Hub For fixed real IP, set up the IP into IP CAMERA and PC. For dynamic IP, start PPPoE. 38/40...
  • Page 39 Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. 39/40...

  • Page 40: Factory Default

    To recover the default IP address and password, please follow the following steps. ii、 Remove power, and press and hold the button in the back of IP CAMERA. Factory Default iii、 Power on the camera. Don’t release the button during the system booting.
