User Manual

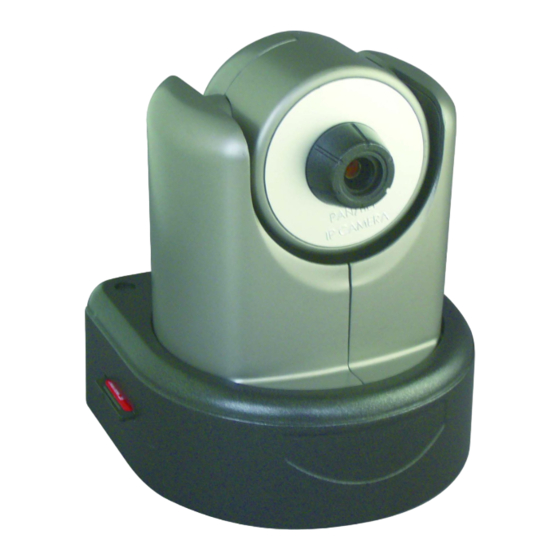

Pan-Tilt Zoom IP Camera
1/37

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pan-Tilt and is the answer not in the manual?

Questions and answers

Related Manuals for IP Camera Pan-Tilt

Summary of Contents for IP Camera Pan-Tilt

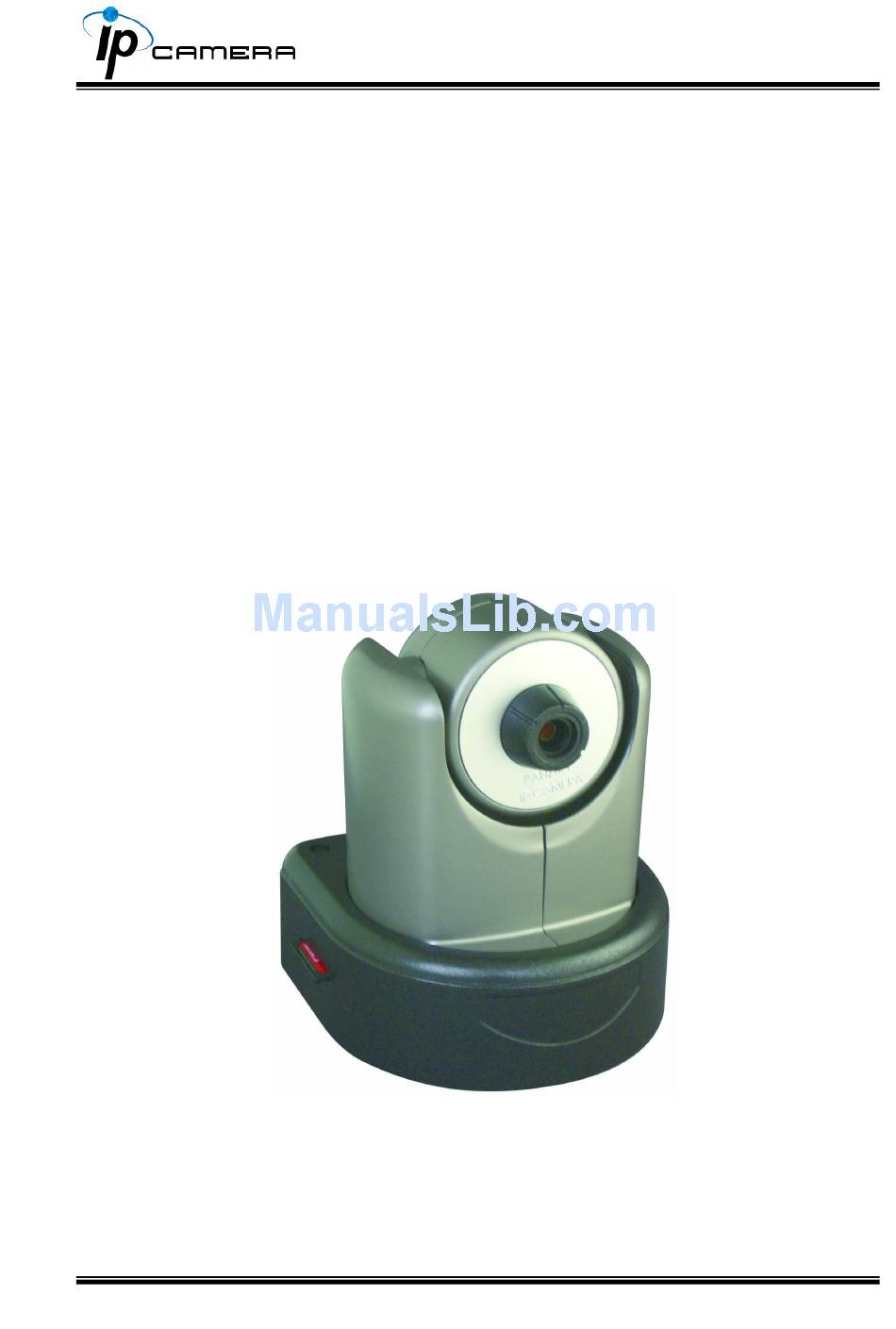

  • Page 1: User Manual

    User Manual Pan-Tilt Zoom IP Camera 1/37...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).
  • Page 3 ........................8 ARDWARE NSTALLATION IP A ............................9 SSIGNMENT :........................12 NSTALL CTIVE CONTROL LIVE VIDEO..........................14 IP CAMERA CONFIGURATION....................16 ..............................17 YSTEM ..............................20 ETWORK A/V S ............................25 ETTING .............................. 31 VENT NETWORK CONFIGURATION ....................34 VII. I/O CONFIGURATION........................35 VIII.

  • Page 4: I. Preface

    I. Preface This IP Camera is a Pan-Tilt IP camera. It has the web server built in. User can view real-time video via IE browser. IP Camera supports simultaneously MPEG-4&JPEG video compression and dual streaming which provides smooth and high video quality. The Pan-Tilt function can be controlled remotely. The video can be stored in the SD card, and playback remotely.
  • Page 5 270° Pan angle 120° Tilt angle Power Consumption LAN: 5V, 1.3A / WLAN: 5V, 1.5A Dimensions (W×H×D) 105x128.6x105 mm Network Ethernet 10/ 100 Base-T Wireless 802.11b/g (Optional) 64/ 128 bit Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, 3GPP, UPnP System NTSC：720x480, 704x480, 352x240, 176x120 Video Resolution...

  • Page 6: Iii. Product Installation

    Delete files Web browsing requirement Windows 2000, XP, 2003, IE 6 or above Suggested Intel-C 2.0G, RAM：512MB, Graphic card：64MB Hardware Intel-C 1.6G, RAM：256MB, Graphic card：32MB Minimum III. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit). 6/37...
  • Page 7 7/37...
  • Page 8 B. Hardware Installation Connect power adaptor Connect IP Camera to PC or network with Ethernet cable iii. Connect IP Camera to PC or network Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP Camera”.
  • Page 9 Ethernet Cable Ethernet Cable PoE IP Camera C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. There are two languages for the IP installer IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version...
  • Page 10 “Search Device” to search again. viii. Click one of the IP Camera listed on the left side. The network configuration of this IP camera will show on the right side. You may change the “name” of the IP Camera to your preference (eg: Office, warehouse).
  • Page 11 Properties Internet Protocol (TCP/IP) Properties Please make sure your IP Camera and PC have the same Subnet. If not, please change IP Camera subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list”...

  • Page 12: X Control

    D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options… Security Tab Custom Level…...
  • Page 13 When popup the following dialogue box, click “Yes”. 13/37...

  • Page 14: Iv. Live Video

    IV. Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 15 (When streaming 2 setting in『Video Setting』 is closed, this function will not display) IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connect to the PC to talk to server side, which is IP Camera side.

  • Page 16: V. Ip Camera Configuration

    V. IP Camera Configuration Click to get into the administration page. Click to back to the live video page. 16/37...
  • Page 17 A. System i、 System Information Server Information：Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simple Chinese to select.
  • Page 18 IP Camera supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP camera Add user： Type the user name and password, then click “Add/Set”. Click “edit” or “delete” to modify the user.
  • Page 19 To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP camera Factory default：delete all the settings in this IP camera. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 20: B. Network

    B. Network i、 IP Setting IP Camera supports DHCP and static IP. DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. Static IP: Please type in IP address, subnet mask, gateway, and DNS manually. Port assignment: Web Page Port: setup web page connecting port and video...
  • Page 21 Send mail after dialed：When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP” settings. iii、 DDNS： IP Camera supports DDNS (Dynamic DNS) service. DynDNS： 21/37...
  • Page 22 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 23 iv、 Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice：Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed. Status of Wireless Networks： scan all wireless services.
  • Page 24 SSID：Based on AP setting. Channel ： This is used only when the user selects Ad-hoc mode in order to avoid conflict. Security：It supports “None”, “WEP”, “WPA-PSK” security encryption based on the setting of the Router. WEP: Authentication：There are Open System and Shared Keys, it is based on different encryptions.
  • Page 25 C. A/V Setting Image Setting Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. Video Setting User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode (Max Video Frame Rate for both streaming combined is 30 FPS) Streaming 1 Basic Mode：...
  • Page 26 Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Format：MPEG4 or JPEG Video Orientation：Flip or Mirror...
  • Page 27 Video Frame Rate The video refreshing rate per second. GOP Size It means "Group of Pictures". The higher the GOP is, the better the quality is. Video Format：MPEG4 or JPEG Video Orientation：Flip or Mirror Access Name: RTSP output connecting route Streaming 2 Basic Mode：...
  • Page 28 Streaming 2 Advanced Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use.
  • Page 29 3GPP: 3GPP output name iii. Audio： IP Camera supports 2-way audio. User can send audio from IP Camera Built-in mic to remote PC; User can also send audio from remote PC mic to IP Camera’s external speaker. Audio from IP camera built-in mic to local PC: select “Enable” to start this function.
  • Page 30 Audio from local PC mic to IP camera, check “chatting” in the browsing page. The Audio will not be smooth when enable SD card recording function simultaneously. 30/37...

  • Page 31: D. Event List

    IP Camera provides multiple event settings. Event Setting Motion Detection: IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send video to some specific mail addresses, transmit the video to remote ftp server, and save video to local SD card.
  • Page 32 The interval of two video files recorded on SD card is fixed with 30 seconds. I/O Setting IP Camera supports 1 Input/ 1 Output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 33 SD card Please Insert SD card before use it. Make sure pushing SD card into the slot completely. Note：The use of the SD card will affect the operation of the IP Camera slightly, such as affecting the frame rate of the video. Playback: It will show the capacity of the SD card.

  • Page 34: Vi. Network Configuration

    IP address：More than one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed：Switch Hub For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE. 34/37...

  • Page 35: Vii. I/O Configuration

    Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. VII. I/O Configuration i、...
  • Page 36 ii、 I/O Setup： Click I/O Setting from the system setup page via IE, and check “Out1” to enable I/O signal. Click ON/OFF from the setup main page via IE to control relay out signal. 36/37...

  • Page 37: Viii. Factory Default

    To recover the default IP address and password, please follow the following steps. ii、 Remove power, and press and hold the button in the back of IP Camera. iii、 Power on the camera. Don’t release the button during the system booting.
