  • Page 1: User Manual

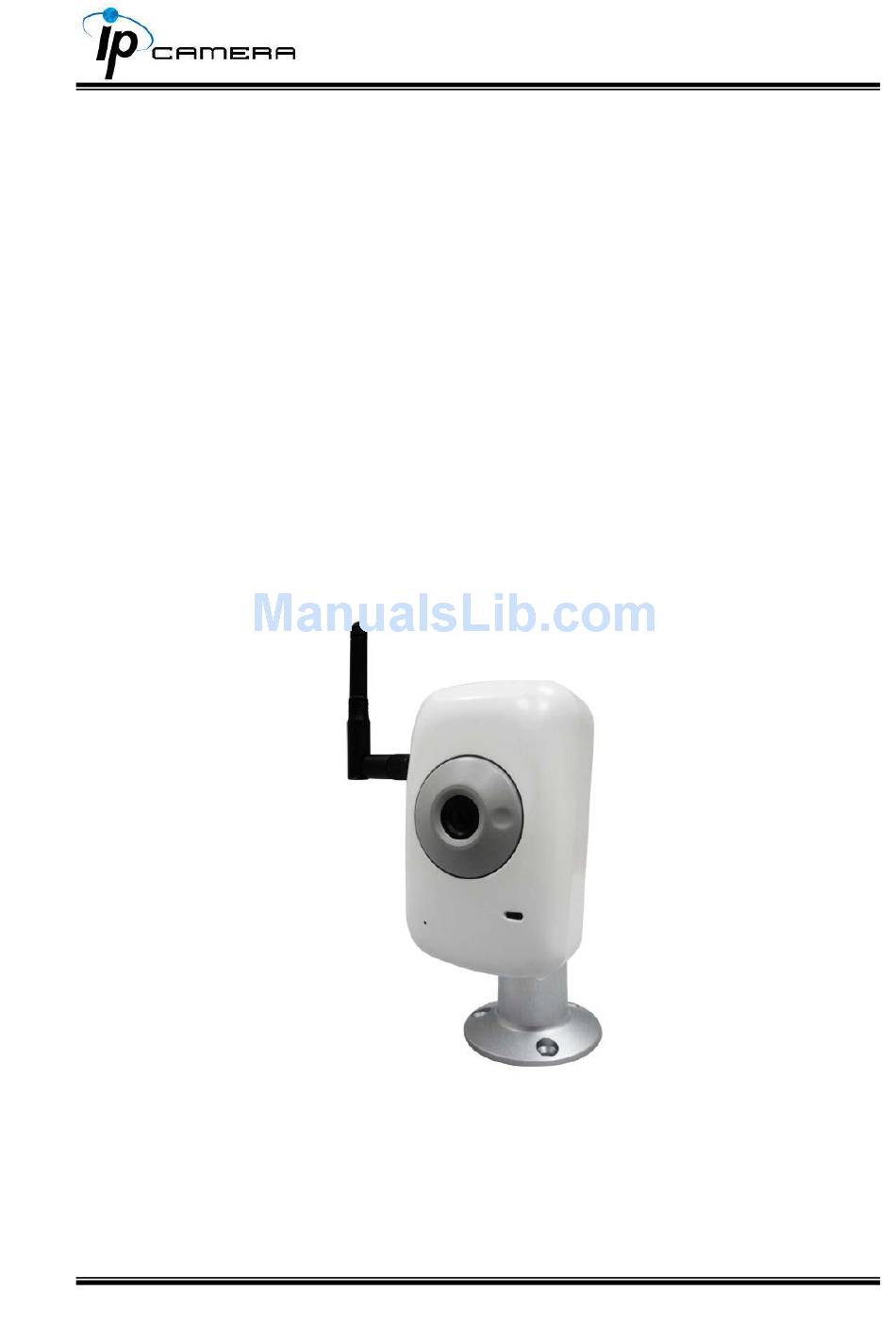

    User Manual IP CAMERA 1/37...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE ..........................4 PRODUCT SPECIFICATIONS ....................4 III. PRODUCT INSTALLATION ....................... 6 ..........................6 ONITOR ETTING ....................7 ARDWARE NSTALLATION SSIGNMENT IP A ........................... 8 SSIGNMENT : ......................10 NSTALL CTIVE CONTROL LIVE VIDEO ..........................12 CONFIGURATION ........................14 .............................15 YSTEM ............................19 ETWORK A/V S .............................26...

  • Page 4: Preface

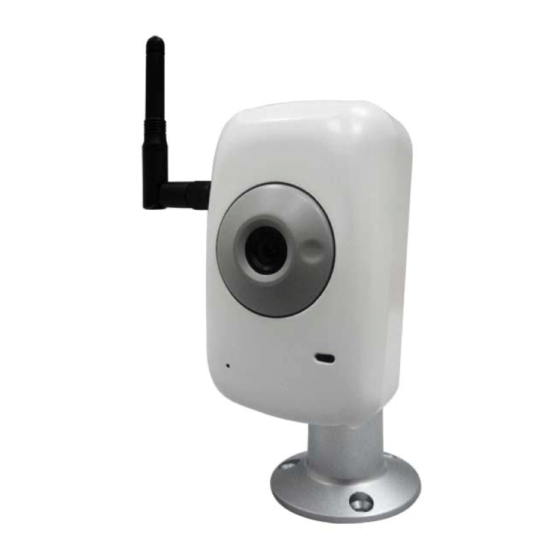

    I. Preface This is a 1/4’’ CMOS 1.3MegaPixel IP camera with the web server built in. User can view real-time video via IE browser. It supports H.264, JPEG and MPEG4(3GPP Only) video compression which provides smooth and high video quality. The video can be stored in the SD card and playback remotely.
  • Page 5 Network Ethernet 10/ 100 Base-T Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP Wireless (Optional) Wireless 802.11b/g Security WEP,WPA-PSK,WPA2-PSK System 1280x1024, 1280x960,1280x720, Video Resolution 800x600,640x480, 320x240, 176x144 Triple Streaming CMOS setting Brightness, Contrast, Saturation, Exposure, Sharpness, BLC, AGC, BLC, Night Mode, Flip, Mirror, Outdoor, Indoor Image snapshot...

  • Page 6: Product Installation

    Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB III. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit). 6/37...

  • Page 7: Hardware Installation Assignment

    Connect IP Cam to PC or network with Ethernet cable. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP CAMERA”. PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is...

  • Page 8: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP CAMERA. The software is in the attached software CD. IP installer supports two languages IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration.
  • Page 9 Connection PropertiesInternet Protocol (TCP/IP) Properties Please make sure your IP Camera and PC have the same Subnet. If not, please change IP Camera subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list”...

  • Page 10: Install Active Xcontrol

    Then, please key in the default “user name: admin” and “password: admin”. D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. IE ...
  • Page 11 When popup the following dialogue box, click “Yes”. 11/37...

  • Page 12: Live Video

    IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 13 (When streaming 2 setting in『Video Setting』 is closed, this function will not display) IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connects to the PC to talk to server side, which is IP...

  • Page 14: Configuration

    V. Configuration Click to get into the administration page. Click to go back to the live video page. 14/37...

  • Page 15: System

    System i、 System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 16 IP CAMERA supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP camera Add user： Type the user name and password, then click “Add/Set”. Click “edit” or “delete” to modify the user.
  • Page 17 17/37...
  • Page 18 To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP camera Factory default：delete all the settings in this IP camera. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 19: Network

    B.Network i、 IP Setting IP Camera supports DHCP and static IP. DHCP：Using DHCP, IP Camera will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 20 UPnP This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.” Note: UPnP must be enabled on your computer. Please follow the procedure to activate UPnP...
  • Page 21 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 22 Camddns service： Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.
  • Page 23 iv、 Mail & FTP To send out the video via mail of ftp, please set up the configuration first. v、 Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice：Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed.
  • Page 24 Status of Wireless Networks； scan all wireless services. Wireless Setting： Mode：There are Infrastructure and Ad-hoc. Infrastructure is for connecting with the router. Ad-hoc is for connecting with PC. There is “Channel” to select only when user uses Ad-hoc mode. e.g. If one PC’s channel is 1, the other’s channel has to 1, too. SSID：Based on AP setting.
  • Page 25 WEP：  Authentication：There are Open System and Shared Keys, it is based on different encryptions. This has to be the same as the Router’s setting.  Encryption：There are 64 bits and 128 bits. This is based on Key Type based on the Router’s setting. ...

  • Page 26: A/V Setting

    Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Sharpness” to get clear video. Adjust “Brightness”, “Contrast”, “Saturation” , “Exposure”, “Sharpness” to get clear video. Moreover, IP CAMERA supports “AGC”, “Night Mode” and “Video Orientation”. 26/37...
  • Page 27 ii、 Video Setting User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode (Max Video Frame Rate for both streaming combined is 30 FPS) Streaming 1 Basic Mode： Resolution：...
  • Page 28 Streaming 1 Advanced Mode： Resolution： There are 6 resolutions can be chosen. 1280x1024, 1280x960, 800x592, 640x480, 320x240, 176x144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use. CBR：32Kbps~8Mbps (the higher the CBR is, the better the video quality is) VBR：1(Low)~10(High) –...
  • Page 29 Streaming 2 Basic Mode： Resolution： There are 6 resolutions can be chosen. 1280x1024, 1280x960, 800x592, 640x480, 320x240, 176x144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate：The video refreshing rate per second.
  • Page 30 good for internet transmitting Video Frame Rate：The video refreshing rate per second. Video Format：H.264 or JPEG RTSP Path: RTSP output connecting route 3GPP Streaming mode: 3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format Enable or Disable 3GPP Streaming 3GPP: 3GPP output name 30/37...
  • Page 31 Camera Built-in mic to remote PC; User can also send audio from remote PC to IP Camera’s external speaker. Audio from IP camera built-in mic to local PC: select “Enable” to start this function. Audio from local PC to IP Camera: Check “chatting” in the browsing page.

  • Page 32: Event List

    IP CAMERA provides multiple event settings. i、 Event Setting Motion Detection： IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 33 compression format. Single JPEG (Single File with Interval Setting) Record Time Setting： Pre Alarm and Post Alarm setups for video start and end time when motion detected, I/O, or other devices got triggered. Note: Pre/Post Alarm record time is base on record time setting and IP Cam built-in Ram memory.
  • Page 34 iii、 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. 34/37...

  • Page 35: Network Configuration

    IP address：More than one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed：Switch Hub For fixed real IP, set up the IP into IP CAMERA and PC. For dynamic IP, start PPPoE. 35/37...
  • Page 36 Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. 36/37...

  • Page 37: Factory Default

    To recover the default IP address and password, please follow the following steps. ii、 Remove power, and press and hold the button in the back of IP CAMERA. Factory Default iii、 Power on the camera. Don’t release the button during the system booting.
