IP Camera IP Vandal Dome User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

User Manual

IP Vandal Dome
1/39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP Vandal Dome and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IP Camera IP Vandal Dome

Summary of Contents for IP Camera IP Vandal Dome

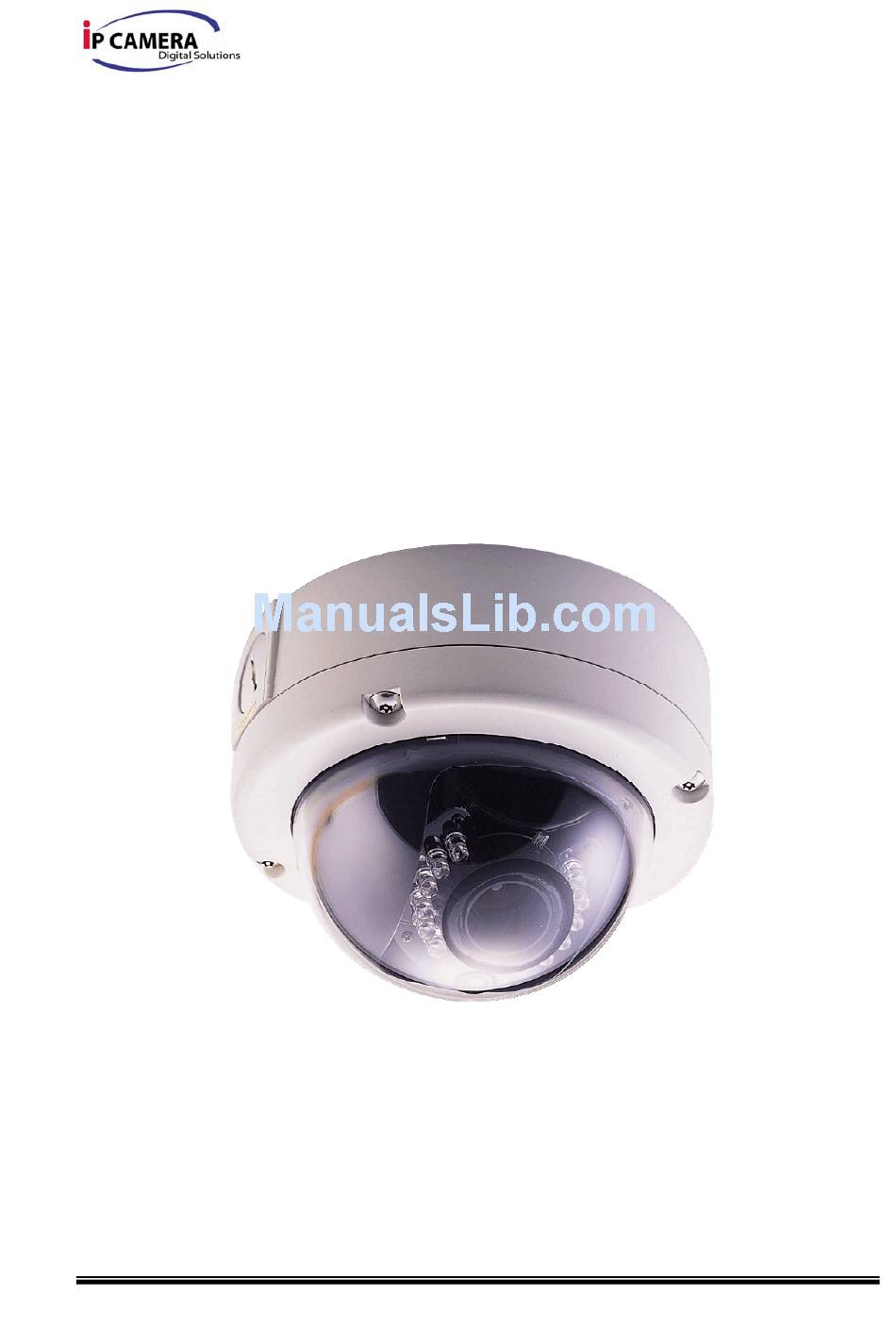

  • Page 1: User Manual

    User Manual IP Vandal Dome 1/39...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC & ELETRIC CONDUCTIVE OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

  • Page 3: Table Of Contents

    ........................7 ARDWARE NSTALLATION IP A ............................10 SSIGNMENT :........................13 NSTALL CTIVE CONTROL LIVE VIDEO............................15 IP VANDAL DOME CONFIGURATION....................17 ..............................18 YSTEM ..............................22 ETWORK A/V S ............................26 ETTING .............................. 34 VENT NETWORK CONFIGURATION ......................37 VII.

  • Page 4: Preface

    I. Preface IP Vandal Dome is a professional CCD IP Vandal Dome. It has built-in web server which enables user to view real-time video via IE browser. It also supports simultaneously MPEG-4&JPEG video compression and dual streaming which provides smooth and high video quality. The video can be stored in the SD card, and can be playback remotely.
  • Page 5 SDRAM 64MB Flash Video Out 1 Vp-p, 75 Ohms 1 in/out Relay out (COM. & N.O.) Audio in Audio Out Power Consumption DC 12V, 490mA 126 x 126 x 100 mm Dimensions (W×H×D) Weatherproof IP66 Vandal Proof Polycarbonate shell can withstand impact up to 10 pounds Network Ethernet 10/ 100 Base-T...

  • Page 6: Product Installation

    Delete files Web browsing requirement Windows 2000, XP, 2003, Microsoft IE 6.0 or above Hardware Suggested Intel-C 2.0G, RAM：512MB, Graphic card：64MB Minimum Intel-C 1.6G, RAM：256MB, Graphic card：32MB III. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties”. Change color quality to highest (32bit).

  • Page 7: Hardware Installation

    Connect power adaptor Connect Ethernet cable to IP Camera iii. Connect IP Camera to a computer or Local network. Ｂ-1 I/O Control Instruction I/O terminal connector – used in application, for e.g., motion detection, event triggering, alarm notifications. It provides the interface to: 1 Digital Input (GND+Alarm) –...
  • Page 8 ALARM IN ALARM Relay Out N.O. B-2 Relay Connection: Digital Input connection Door/Window ALARM Contacts Relay Output Connection ALARM 8/39...
  • Page 9 It eliminates the need for power outlets at the camera locations and enables easier application of uninterruptible power supplies (UPS) to ensure 24 hours a day, 7 days a week operation. Ethernet PoE IP Camera PoE Switch Ethernet Cable Ethernet Cable...

  • Page 10: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP Camera. The software is in the attached software CD. There are two languages for the IP installer IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version iii. There are 3 kinds of IP configuration.
  • Page 11 “Search Device” to search again. viii. Click one of the IP Camera listed on the left side. The network configuration of this IP camera will show on the right side. You may change the “name” of the IP Camera to your preference (eg: Office, warehouse).
  • Page 12 Properties Internet Protocol (TCP/IP) Properties Please make sure your IP Camera and PC have the same Subnet. If not, please change IP Camera subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list”...

  • Page 13: Install Active Xcontrol

    Then, please key in the default “user name: admin” and “password: admin”. D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options…...
  • Page 14 When popup the following dialogue box, click “Yes”. 14/39...

  • Page 15: Live Video

    IV. Live Video Start an IE browser, type the IP address of the IP Camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 16 ：Video Snapshot Show system time, video resolution, and video refreshing rate IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connects to the PC to talk to server side, which is IP Camera side Control the relay which is connected to this camera.

  • Page 17: Ip Vandal Dome Configuration

    V. IP Vandal Dome Configuration Click to get into the administration page. Click to back to the live video page. 17/39...

  • Page 18: Ystem

    A.System i、 System Information Server Information：Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simple Chinese to select. When changed, it will show the following dialogue box for the confirmation of changing language.
  • Page 19 IP Camera supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP camera Add user： Type the user name and password, then click “Add/Set”. 19/39...
  • Page 20 Click “edit” or “delete” to modify the user. 20/39...
  • Page 21 To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to the proceed. Reboot system：re-start the IP camera Factory default：delete all the settings and restore defaults system. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 22: Network

    B.Network i、 IP Setting IP Vandal Dome supports DHCP and static IP. DHCP：Using DHCP, IP Vandal Dome will get all the network parameters automatically. Static IP：Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 23 Send mail after dialed：When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP” settings. iii、 DDNS： IP Vandal Dome supports DDNS (Dynamic DNS) service. DynDNS： 23/39...
  • Page 24 Please enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 25 Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating：Information update Idle：Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com：Register successfully. Update Failed, the name is already registered：The user name has already been used.

  • Page 26: A/V Setting

    “Back Light Compensation” ON to compensate back light situation ii、 This is an Auto Iris IP Camera. If the video is over bright or over exposed, please adjust the Auto Iris Level to improve the video Before adjust Auto Iris Level, please turn off the Back Light...
  • Page 27 Streaming 1 Basic Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is.
  • Page 28 Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞ to use. CBR：64Kbps~4Mbps –...
  • Page 29 picture breaking up or lagging. Video Frame Rate Picture display frame per second NTSC: Max 30 frames/second PAL: Max 25 frames/second GOP Size It means "Group of Pictures". The higher the GOP is, the better the quality is. Video Format： There are 2 Video Format to choose MPEG4 or JPEG.
  • Page 30 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Format：MPEG4 or JPEG Access Name: RTSP output connecting route 3GPP: 3GPP output name...
  • Page 31 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞ to use. CBR：64Kbps~4Mbps (the higher the CBR is, the better the video quality is) VBR：1~10 (Compression Rate) Video Frame Rate The video refreshing rate per second.
  • Page 32 (When enabled, you can send audio via external mic in the IP Camera) For local PC to IP camera, check “chatting” in the browsing page (You will need a mic to send audio from local PC to IP Camera) 32/39...
  • Page 33 The Audio will not be smooth when enable SD card recording function simultaneously. 33/39...

  • Page 34: Event List

    IP Vandal Dome provides multiple event settings. i、 Event Setting Motion Detection IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send video to some specific mail addresses, transmit video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 35 The interval of two video files on SD card is fixed with 30 seconds. ii、 I/O Setting IP Camera supports 1 input/ 1 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 36 iv、 SD card Please Insert SD card before use it. Make sure pushing SD card into the slot completely. Note：The use of the SD card will affect the operation of the IP Playback： It will show the capacity of the SD card. Click the date listed on this page.

  • Page 37: Network Configuration

    Internet Access：ADSL or Cable Modem IP address：One real IP or one dynamic IP Only IP Vandal Dome connects to the internet For fixed real IP, set up the IP into IP Vandal Dome. For dynamic IP, start PPPoE. ii、 Configuration 2：...
  • Page 38 IP address：More than one real IP or one dynamic IP IP Vandal Dome and PC connect to the internet Device needed：Switch Hub For fixed real IP, set up the IP into IP Vandal Dome and PC. For dynamic IP, start PPPoE. iii、 Configuration 3：...

  • Page 39: Factory Default

    To recover the default IP address and password, please follow the following steps. ii、 Press and hold the button in the back of IP Vandal Dome. Factory Default iii、 Power on the camera. Don’t release the button during the system booting.
