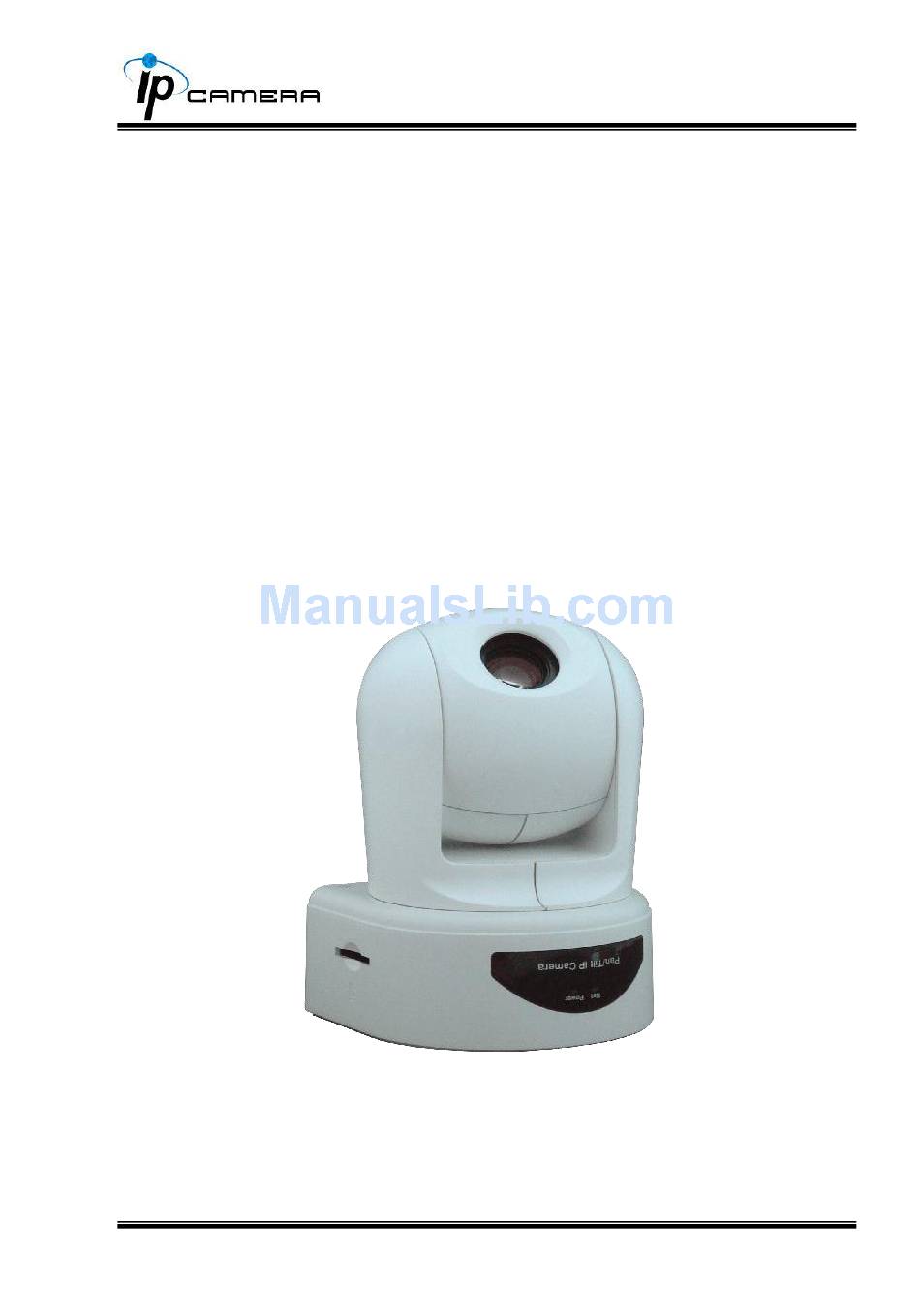

Page 1: User Manual
User Manual Pan/Tilt/Zoom IP Camera 1/39 AXETECH Group Distributor Official For BENELUX Tél. + 32 2 332 01 11 Fax. + 32 2 332 03 11 info@axetech.be... - Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).
-
Page 3: Table Of Contents
........................8 ARDWARE NSTALLATION IP A ............................9 SSIGNMENT : ........................12 NSTALL CTIVE CONTROL LIVE VIDEO ..........................14 IP CAMERA CONFIGURATION....................17 ..............................18 YSTEM ..............................21 ETWORK A/V S ............................26 ETTING .............................. 32 VENT NETWORK CONFIGURATION ....................36 VII. -
Page 4: Preface
I. Preface This IP Camera is a Pan/Tilt/Zoom IP camera. It has the web server built in. User can view real-time video via IE browser. IP Camera supports simultaneously H.264, JPEG & MPEG4 (3GPP Only) video compression and dual streaming which provides smooth and high video quality. - Page 5 Power Consumption LAN: DC 12V 510mA Dimensions (W×LxH) 105(W)x157(L)x105(H) mm Weight 550g -10∘C ~ 40∘C Operating Temperature Image sensor 1/4” CCD Lens type Auto focus zoom lens Sensitivity 0.1 lux @F1.6 Electronic shutter 1/50(1/60) ~ 1/100000s White balance mode ATW , AWB , Indoor , Outdoor Zoom ratio 12X optical zoom Focal length...
-
Page 6: Product Installation
Auto Pan Yes(Once) Compression format H.264/ JPEG/ MPEG4 (3GPP only) Video Bitrate Adjust CBR, VBR Motion Detection Yes, 3 different areas Triggered action Mail, FTP, Save to SD card, Alarm Pre/ Post alarm Yes, configurable Security Password protection Firmware upgrade HTTP mode, can be upgraded remotely Simultaneous connection Up to 10... - Page 7 Change color quality to highest (32bit). 7/39 AXETECH Group Distributor Official For BENELUX Tél. + 32 2 332 01 11 Fax. + 32 2 332 03 11 info@axetech.be...
-
Page 8: Hardware Installation
B. Hardware Installation Connect power adaptor Connect IP Camera to PC or network with Ethernet cable iii. Connect IP Camera to PC or network Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP Camera”. -
Page 9: Ip Assignment
Ethernet Cable Ethernet Cable PoE IP Camera C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. There are two languages for the IP installer IPInstallerCht.exe：Chinese version IPInstallerEng.exe：English version... - Page 10 “Search Device” to search again. viii. Click one of the IP Camera listed on the left side. The network configuration of this IP camera will show on the right side. You may change the “name” of the IP Camera to your preference (eg: Office, warehouse).
- Page 11 Control PanelNetwork ConnectionsLocal Area Connection PropertiesInternet Protocol (TCP/IP) Properties Please make sure your IP Camera and PC have the same Subnet. If not, please change IP Camera subnet or PC IP subnet accordingly. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP Camera listed on “Device list”...
-
Page 12: Install Active Xcontrol
D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. IE Tools Internet Options… Security Tab Custom Level… Security Settings ... - Page 13 When popup the following dialogue box, click “Yes”. 13/39 AXETECH Group Distributor Official For BENELUX Tél. + 32 2 332 01 11 Fax. + 32 2 332 03 11 info@axetech.be...
-
Page 14: Live Video
IV. Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. - Page 15 (When streaming 2 setting in『Video Setting』 is closed, this function will not display) IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connect to the PC to talk to server side, which is IP Camera side.
- Page 16 Full Screen：Full-screen mode. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom” option first within the pop-up dialogue box and then drag and drop the bar to adjust the zoom factors. 16/39 AXETECH Group Distributor Official For BENELUX Tél. + 32 2 332 01 11 Fax.
-
Page 17: Ip Camera Configuration
V. IP Camera Configuration Click to get into the administration page. Click to back to the live video page. 17/39 AXETECH Group Distributor Official For BENELUX Tél. + 32 2 332 01 11 Fax. + 32 2 332 03 11... -
Page 18: System
A. System i、 System Information Server Information：Set up the camera name, select language, and set up the camera time. Server Name：This is the Camera name. This name will show on the IP Installer. Select language：There are English, Traditional Chinese, and Simple Chinese to select. - Page 19 IP Camera supports three different users, administrator, general user, and anonymous user. Anonymous User Login： Yes：Allow anonymous login No：Need user name & password to access this IP camera Add user： Type the user name and password, then click “Add/Set”. Click “edit” or “delete” to modify the user.
- Page 20 To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system：re-start the IP camera Factory default：delete all the settings in this IP camera. Setting Management ： User may download the current setting to PC, or upgrade from previous saved setting.
-
Page 21: Network
B. Network i、 IP Setting IP Camera supports DHCP and static IP. DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. Static IP: Please type in IP address, subnet mask, gateway, and DNS manually. Port assignment: Web Page Port: setup web page connecting port and video... - Page 22 Send mail after dialed：When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP” settings. iii、 DDNS： IP Camera supports DDNS (Dynamic DNS) service. DynDNS： 22/39 AXETECH Group Distributor Official For BENELUX Tél.
- Page 23 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
- Page 24 iv、 Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice：Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed. Status of Wireless Networks： scan all wireless services.
- Page 25 SSID：Based on AP setting. Channel ： This is used only when the user selects Ad-hoc mode in order to avoid conflict. Security：It supports “None”, “WEP”, “WPA-PSK” security encryption based on the setting of the Router. WEP: Authentication：There are Open System and Shared Keys, ...
-
Page 26: A/V Setting
C. A/V Setting Image Setting Image Setting: Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. Zoom Setting: Adjust “White Balance”, “Shutter Speed”, “Sharpness”, and “IRIS Level” to get clear video. Note: When Shutter Speed is Auto, the IRIS Level is invalid. Video Setting User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode... - Page 27 Video Orientation：Flip or Mirror Streaming 1 Basic Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is.
- Page 28 Streaming 1 Advanced Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Bitrate Control Mode There are CBR﹝Constant Bit Rate﹞ and VBR﹝Variable Bit Rate﹞to use.
- Page 29 Streaming 2 Basic Mode： Resolution： There are 4 resolutions to choose. NTSC – 720×480 / 720×576 4CIF – 704×480 / 704×576 – 352×240 / 352×288 QCIF – 176×120 / 176×144 Quality： There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is.
- Page 30 3GPP: 3GPP output name iii. Audio： IP Camera supports 2-way audio. User can send audio from IP Camera Built-in mic to remote PC; User can also send audio from remote PC mic to IP Camera’s external speaker. Audio from IP camera built-in mic to local PC: select “Enable” to start this function.
- Page 31 The Audio will not be smooth when enable SD card recording function simultaneously. 31/39 AXETECH Group Distributor Official For BENELUX Tél. + 32 2 332 01 11 Fax. + 32 2 332 03 11 info@axetech.be...
-
Page 32: Event List
IP Camera provides multiple event settings. Event Setting Motion Detection: IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send video to some specific mail addresses, transmit the video to remote ftp server, and save video to local SD card. - Page 33 I/O Setting IP Camera supports 1 Input/ 1 Output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
- Page 34 Mail & FTP To send out the video via mail of ftp, please set up the configuration first. 34/39 AXETECH Group Distributor Official For BENELUX Tél. + 32 2 332 01 11 Fax. + 32 2 332 03 11 info@axetech.be...
- Page 35 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. SD card Please Insert SD card before use it. Make sure pushing SD card into the slot completely.
-
Page 36: Network Configuration
IP address：More than one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed：Switch Hub For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE. 36/39 AXETECH Group Distributor Official For BENELUX Tél. -
Page 37: I/O Configuration
Configuration 3： Internet Access：ADSL or Cable Modem IP address：one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed：IP sharing Use virtual IP, set up port forwarding in IP sharing. VII. I/O Configuration i、... - Page 38 ii、 I/O Setup： Click I/O Setting from the system setup page via IE, and check “Out1” to enable I/O signal. Click ON/OFF from the setup main page via IE to control relay out signal. 38/39 AXETECH Group Distributor Official For BENELUX Tél.
-
Page 39: Factory Default
To recover the default IP address and password, please follow the following steps. ii、 Remove power, and press and hold the button in the back of IP Camera. iii、 Power on the camera. Don’t release the button during the system booting.
