Summary of Contents for IP Camera 3 MEGAPIXEL IP CAMERA

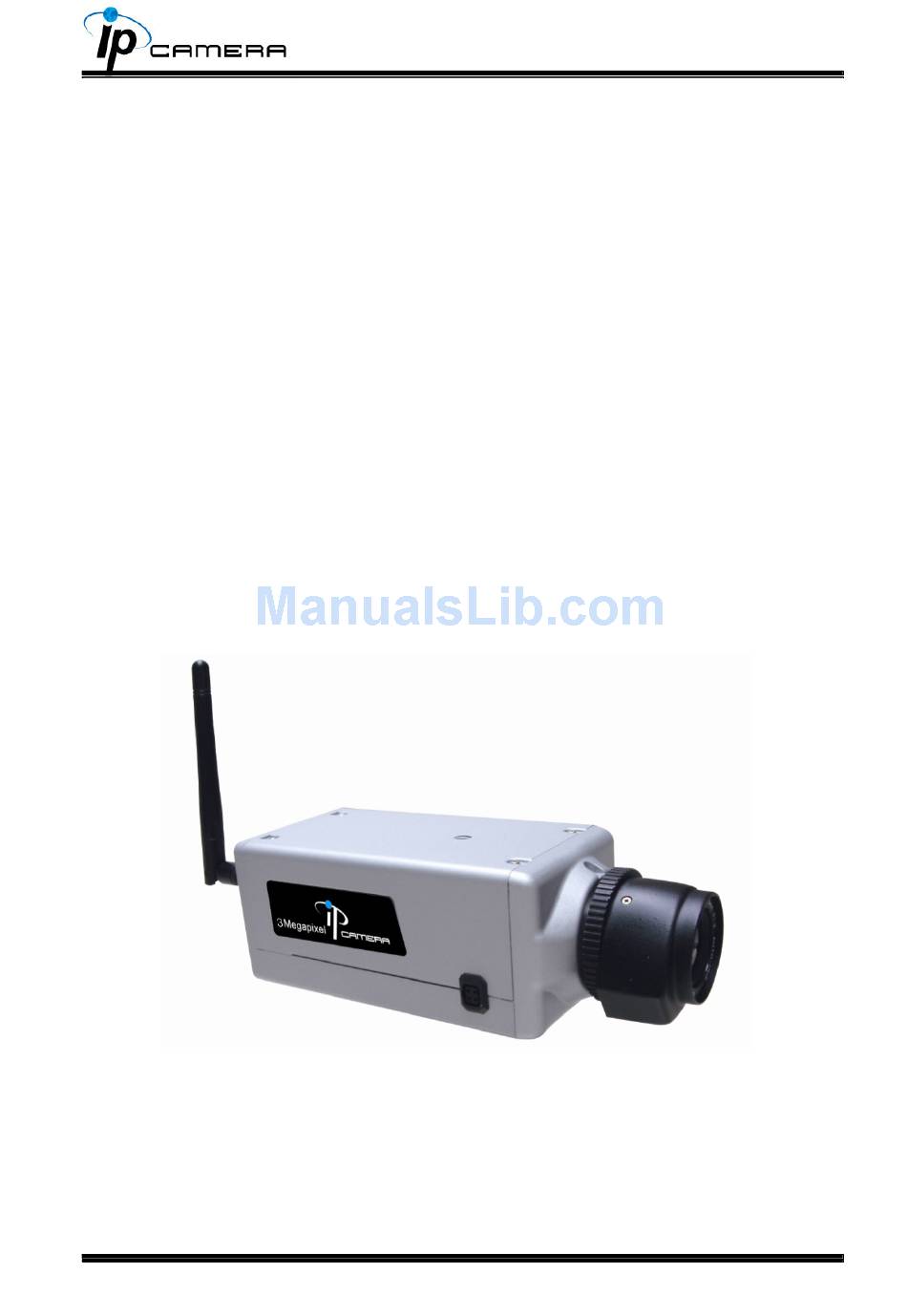

  • Page 1: User Manual

    User Manual 3 MEGAPIXEL IP CAMERA...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    CONTENT Preface Product Specifications IIII Product Installation Monitor Setting Hardware Installation IP Assignment Install ActiveX control Live Video IP Camera Configuration System Network A/V Setting Event List Network Configuration IIII I/O Configuration IIIII Factory Default Package Contents SD Card Compatibility...

  • Page 4: Preface

    Preface This IP Camera is a 3 Megapixel IP camera with the web server built in. User can view real-time video via IE browser. IP Camera supports simultaneously H.264, Motion JPEG & MPEG4 video compression and dual streaming which provides smooth and high video quality. The video can be stored in the SD card and played back remotely.
  • Page 5 Mechanism IR cut Filter 1 Alarm in / 1 Relay out Video output Audio G.711(64K) and G.726(32K,24K) audio compression Input : audio in or Mic built-in(auto switch) Output: 3.5mm phone jack, Support 2-way. Power over Ethernet Power 12V DC Power consumption Max ： 4.08W 24V AC Power consumption Max ：...
  • Page 6 Security Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP Firmware upgrade HTTP mode, can be upgraded remotely Simultaneous connection Up to 10 SD card management Recording trigger Motion Detection, IP check, Network break down (wire only), Schedule, Alarm in Video format AVI, JPEG...

  • Page 7: Iiii Product Installation

    IIII Product Installation Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit).

  • Page 8: Bi Hardware Installation

    The connectors is as below. Plug in the DC adapter power, or use the 2P terminal block to connect with AC power, or use POE. Connect the IP Camera to your PC or network, and set up the network configurations according to the network environment.

  • Page 9: Ci Ip Assignment

    IP Assignment You can use the software“IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. There are two language versions of IP installer. Choose one as your need: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version There are 3 kinds of IP configuration.
  • Page 10 Click one of the IP Camera listed on the left side. The network configuration of this IP camera shows on the right side. You may change the “name” of the IP Camera as your preference (eg: Office, warehouse). Change the parameter and click “Submit”...

  • Page 11: Di Install Activex Control

    If you link to the IP Camera successgully, there pops a box asking you to log in. Please key in the default user name"admin" and password"admin" when you link to the IP Camera for the first time. You can revise the user name and password later. Please refer to Chapter V: "A.2.
  • Page 12 When popup the following dialogue box, click “Yes”.

  • Page 13: Live Video

    Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”.
  • Page 14 The "mute" botton does not affect the playback recording video. As long as the "IP Camera to PC" option in the audio setting is enabled, all the audio will be recorded into the playback video even you click "mute" in the live page.

  • Page 15: Ip Camera Configuration

    IP Camera Configuration Click to get into the administration page as below. Click to back to the live video page.

  • Page 16: Ai System

    System System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. (ii) Select language: There are 11 languages to choose from. When you change the language, it will show the following dialogue box for confirmation.
  • Page 17 Server time setting: Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”.
  • Page 18 Anonymous User Login: Yes: anonymous login is allowed No: Username & password are required to access this IP camera Add user: Type the user name and password, then click “Add/Set”.The guest user can only browse the live video page and is not allowed to enter the configuration page.
  • Page 19 Reboot system:re-start the IP camera Factory default:delete all the settings in this IP camera. Setting Management:User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 20: Bi Network

    Network IP Setting IP Assignment IP Camera supports DHCP and static IP. DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. (ii) Static IP: Please type in IP address, subnet mask, gateway, and DNS manually. IPv6 Assignment IPv6 is a newer numbering system that provides a much larger address pool than IPv4, which accounts for most of today’s Internet traffic.
  • Page 21 HTTP Port:setup HTTPS connecting port (Default:443) UPnP (Universal Plug and play) This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.”...
  • Page 22 Windows may ask your confirmation for enabling the components. Click "Yes". • Now you can see the IP devise under the LAN. Double-click the icon to access the camera via web browser. To disable the UPnP, click "Hide icons for networked UPnP devises" in the tasks column.
  • Page 23 RTSP setting If you have a media player that supports RTSP protocal, you can use it to receive the video streaming from IP camera. The RTSP address can be set for two streamings respectively. Please jump to Chapter V-C:"Video Setting". There're setting field for RTSP address of two streamings.
  • Page 24 Bonjour This function enable MAC systems to link to this IP camera. Key in the name here. LLTD If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position(like IP address) of this IP Camera in the network map.
  • Page 26 Advanced Https (Hypertext Transfer Protocol Secure): Https can help protect streaming data transmission over the internal on the higher security level. You can select the connection type. "Https" means user cannot connect the camera via Http protocal. The Https path will be: "https://(IP address)/". If you select "Http &...
  • Page 27 The term "Community name" in SNMPv1 and SNMPv2c can be roughly regarded as key. The person who has the community name has the authority to read or edit the information of IP camera via SNMP. Tick the box to enable SNMPv1 or SNMPv2c protocal, and specify the community name for write(read and write) and read(read-only).
  • Page 28 "community name" in v1&v2c, or sometimes we call it "context name") but the password in order to access the IP camera. Please set security name, authentication type, authentication password, encryption type, encryption password of write and read respectively.
  • Page 29 You can deny a IP address or a range of IP address so that they cannot access the IP camera. Tick the "enable" box, key in the IP address you want to deny, select"deny" then click"Add" to add it to the list.
  • Page 30 192.168.50.159 can access. Note: In the list "allow" condition must be ranked before "deny" condition. For example, if we exchange the sequense, set "Deny: 192.168.50.151~192.168.50.161" for the first item and "Allow: 192.168.50.159" for the second item in the list, the IP "192.168.50.159" turns out to be denied by the camera because the "deny"...
  • Page 31 IEEE 802.1x IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to device wishing to attach to a LAN or WLAN. The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment. Please check what version of the authenticator and authentication server support.
  • Page 32 PPPoE & DDNS PPPoE: Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to Server settings.
  • Page 33 (vi) DDNS Status • Updating: Information update • Idle: Stop service • DDNS registration successful, can now log by http://<username>. ddns.camddns.com: Register successfully. • Update Failed, the name is already registered: The user name has already been used. Please change it. •...
  • Page 34 Server setting The settings of Email, FTP and SAMBA are used when the event happens, schedule snapshot executes, or the alarm input is triggered. Select the item to display the detailed configuration options. You can configure either one or all of them. Mail Setting: Set up the server address and account information of your e-mail.
  • Page 35 connection. A message box will tell you “OK!” if it works, and a test file will be uploaded to FTP space. In PORT mode, the FTP server builds the connection to the user's data port actively. However, from the user-side firewall's standpoint, the action of connecting from FTP server is often considered to be dangerous and should be blocked.
  • Page 36 Note: The IP address is the same under both wireless and wired network. If the ethernet cable is plugged in the camera, the IP camera will use it to link to the Internet instead of wireless router.
  • Page 37 Please select as the wireless system in your location. FCC is American standard. ETSI is European standard. JP is Japan standard. (iv) Channel: Assign a channel for the camera in order to avoid interference. Security: Select WEP, WPA-PSK, or WPA2-PSK according to your wireless router setting.

  • Page 38: Ci A/V Setting

    A/V Setting Image Setting For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and drag an area on the above image. Finally, click Save button to reserve the setting. Please refer to the details below for Image setting: Brightness, Contrast, Hue, Saturation, Sharpness can be adjusted here.
  • Page 39 slower than if you select "Max 30 frame rate", so the image will get lighter, and moving subjects might be blurred. Outdoor / Indoor: Choose as the location of your camera. D-WDR: This funtion is able to reduce the contrast in the view to avoid the dark zones resulting from over and under exposure.
  • Page 40 Video Setting Video System Setting: Choose the input resolution, the option affects the max value of video frame rate. Choose the Video System (digital signal) and TV Output (analog signal). b. Basic Mode of Streaming 1 and Streaming 2: Resolution: 2048x1536, 1920x1080,1280x720 , 640x480, 320x240, or 176x144 (ii)
  • Page 41 (vi) RTSP Path: Set the RTSP output connecting route Advanced Mode of Streaming 1 and Streaming 2: Resolution: 2048x1536, 1920x1080,1280x720 , 640x480, 320x240, or 176x144 (ii) Profile: High profile provides better coding efficiency. Note that some devises do not support every profile. For example, iPhone4 only supports Main profile.
  • Page 42 (vi) Video Frame Rate: The video refreshing rate per second. The max value is affected by the input resolution you choose. (vii) GOP Size: It means “Group of Pictures”. The higher the GOP is, the better the quality is. (viii) Video Format: H.264 or M-JPEG (ix) RTSP Path: RTSP output connecting route...
  • Page 43 Audio: IP Camera supports 2-way audio. Audio can be receive by the built-in mic in the IP camera and transmitted to remote PC. User can also send audio from remote PC mic to IP Camera’s external speaker. IP Camera to PC To receive Audio from IP camera, select “Enable”...

  • Page 44: Di Event List

    Event Setting Motion Detection IP CAMERA allows 3 areas motion detection. When motion is detected, it can send video to some specific mail addresses, trigger the output devise, or save video to remote FTP / SD/Micro SD card / Samba. To set up the motion area, click “Area Setting”.
  • Page 45 Record File Choose one of the format, AVI or JPEG Record Time Setting Set up the video recording time for Pre Alarm and Post Alarm when motion is detected, I/O, or other devices is triggered Network Dis-connected To avoid video loss, the camera will start to save the video to local SD card when it detect no network connection.
  • Page 46 Schedule Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup. Snapshot: After enable the snapshot function, user can select the storage position of snapshot file, the interval time of snapshot and the reserved file name of snapshot.
  • Page 47 I/O Setting Input Setting: IP Camera supports input and output. When the input condition is triggered, it can trigger the relay, send the video to mail addresses /FTP server / SAMBA. • Intervel: For example, if you select "10 sec" here, once the motion is detected and action is triggered, it cannot be triggered again within 10 seconds.
  • Page 48 RS485 Setting If the RS485 is enabled, the related options shows in the live video page. Model: Select the model of the connected devise. (ii) Camera ID: To connect successfully, the ID must be the same with the connected devise. (iii) Baudrate: It means the data transfer rate.
  • Page 49 Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure.
  • Page 50 The oldest file will be deleted if the SD/Micro SD card is full. Note ： The use of the SD card will affect the operation of the IP Camera slightly, such as affecting the frame rate of the video.

  • Page 51: Network Configuration

    IP address: More than one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: Switch Hub For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE.
  • Page 52 • Configuration 3: Internet Access: ADSL or Cable Modem IP address: one real IP or one dynamic IP IP Camera and PC connect to the internet Device needed: IP sharing Use virtual IP, set up port forwarding in IP sharing.

  • Page 53: Iiii I/O Configuration

    IIII I/O Configuration I/O Connection Please connect the the external output device (ex.siren) to N.O & COM or N.C & COM. (Depends on the output devise) Please connect the external trigger device to the GND & Alarm In. I/O PIN definition •...
  • Page 54 Output Test After the external input and output hardware is installed, you can use the "Relay Out" bottom on the live video page to test if DO / Relay Out works. OnOff Switch mode: Click "ON", the camera will trigger the external output devise for 10 seconds.
  • Page 55 RS485 You can link the IP camera to DVR/NVR, cradle head, or joystick controller by RS-485. Please use cable to connect D+ with D+ of two devise, and connect D- with D-. After the RS485 Setting in I/O Setting is enabled, you can turn to the live...

  • Page 56: Iiiii Factory Default

    IIIII Factory Default If you forget your password, please follow the steps to revert back to default value. • Remove the power and ethernet cable. Press and hold the button as the picture below. • Connect power to the camera again, and do not release the button during the system booting.

  • Page 57: Ixi Package Contents

    Package Contents • IP Camera Network Camera • Adaptor: AC100-240V; DC12V/1A • CD (Including User manual and IP installation tool) SD Card Compatibility The following is the Micro SD Card recommended: Transcend SDHC class4 16GB SDHC class4 32GB class4 16GB...
  • Page 58 The following is the compatible SD Card, and those in red are especially recommended: SD CARD ADATA 4G SanDisk 512M ADATA 512M SanDisk 8G Blast 128M SiliconPower 128M GiGATEK 128M SiliconPower 256M Kingmax 256M TEKQ 128M Kingston 128M TEKQ 256M Kingston 1G Toshiba 128M Kingston 256M...
