Aristel AN208 User Manual

2 line / 9 handset telephone system
Hide thumbs Also See for AN208:
Table of Contents

Advertisement

Quick Links

Download this manual
A
r
i
s
t
e
l
A
r
i
s
t
e
l
N
e
t
w
o
r
k
s
N
e
t
w
o
r
k
s

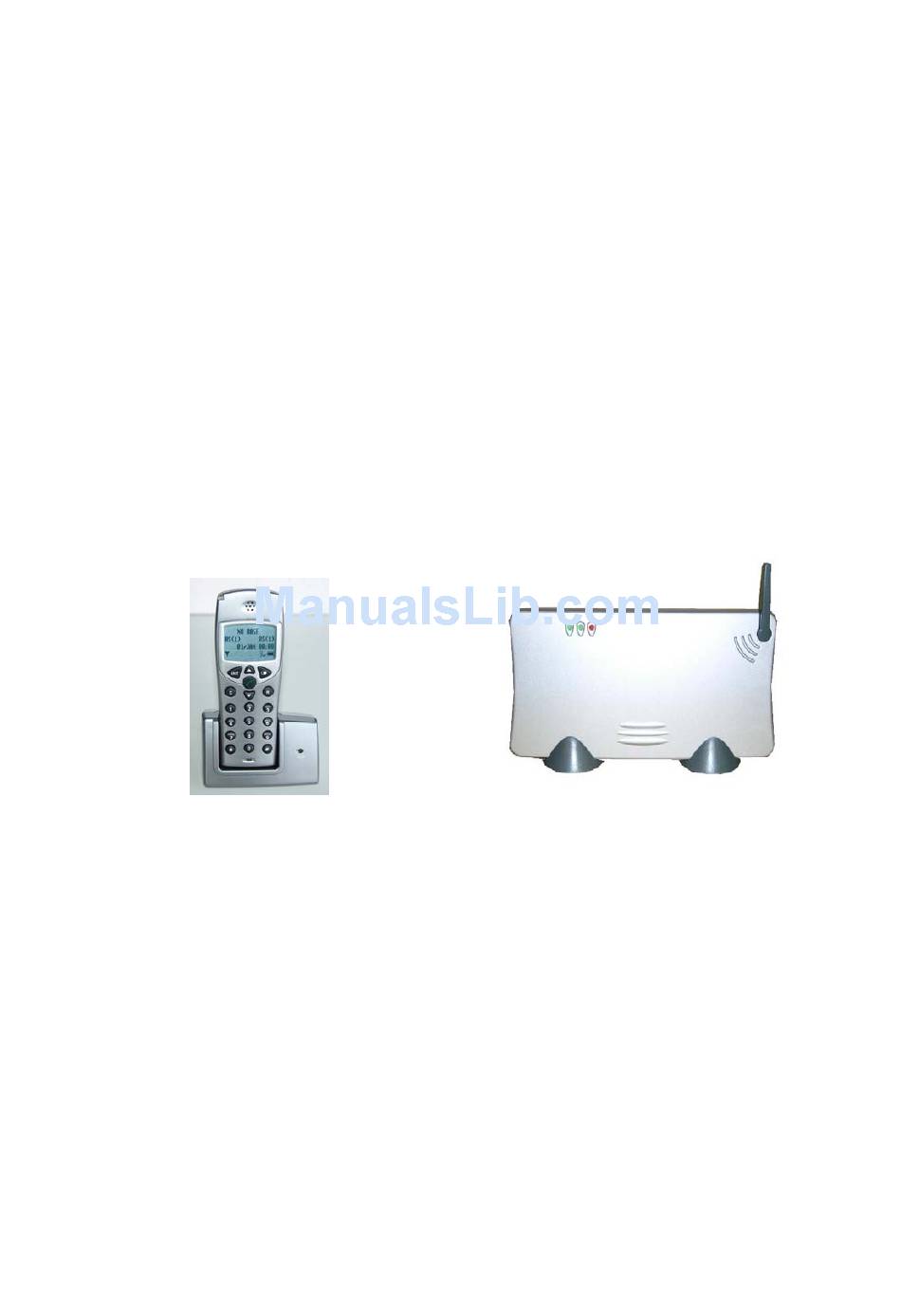

User Manual for the
AN208
2 Line / 9 Handset Telephone System
Aristel Networks Pty Ltd
Unit 1, 25 Howleys Road
Notting Hill. Victoria. 3168
Telephone: 03 8542 2300
Facsimile: 03 9544 3299
AN208 User Manual Version 1.5 December 2006
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN208 and is the answer not in the manual?

Questions and answers

Related Manuals for Aristel AN208

Summary of Contents for Aristel AN208

  • Page 1 User Manual for the AN208 2 Line / 9 Handset Telephone System Aristel Networks Pty Ltd Unit 1, 25 Howleys Road Notting Hill. Victoria. 3168 Telephone: 03 8542 2300 Facsimile: 03 9544 3299 AN208 User Manual Version 1.5 December 2006...

  • Page 3: Table Of Contents

    6.5. Erasing One Number and/or Name from the Phonebook ..........12 6.6. Erasing All Numbers and/or Names from the Phonebook..........12 7. HANDSET SETTINGS ........................ 13 7.1. Key Lock..........................13 7.2. Selecting the Ringer Melody and Volume for External Calls..........13 AN208 User Manual Version 1.5 December 2006...
  • Page 4 7.3. Selecting the Ringer Melody and Volume for Internal Calls ..........13 7.4. HOT CALL/Baby Call Function ..................14 7.5. Enable/Disable Key Tone....................14 7.6. Naming a Handset......................15 7.7. Set PIN Code ........................15 7.8. Auto PICKUP On/Off ......................16 7.9.

  • Page 5: General

    Important note: not all the functions of this DECT System can be used if you use a handset other than the Aristel DECT System handset. To have the best performance from this DECT System, we recommend using only the Aristel DECT System handsets.

  • Page 6: Base Station Rear

    3.5mm External Power Jack 2.3. Base Station Rear Music On-Hold Socket Auxiliary Fax/ANSMachine/ Modem Line 1/Line 2 NOTE: Aux input is connected to line 1 and can be used to connect a modem, fax, or ordinary handset type phone. If the Aux input is using line 1, then line 1 will not be available to the system until the Aux call has ended.

  • Page 7: Handset Key / Lcd Displays Brief Overview

    You can select one of four different display languages. They are English, German, Italian and French. - Press Menu key when the handset is in standby mode.. - Select HS SETTING by using the UP and DOWN keys AN208 User Manual Version 1.5 December 2006...

  • Page 8: Getting Started

    - Press OK key to confirm. - Select LANGUAGE by using the UP and DOWN keys - Press OK key to confirm. - Select the desired language by using the UP and DOWN keys - Press OK to confirm. 3. GETTING STARTED Before you start working with this DECT System, you need to make some minimum settings to utilize the DECT System functions.

  • Page 9: Line Priority For Handsets

    - Select BS SETTING by using the UP and DOWN keys and press OK - Enter the Base Pin code MASTER PIN (Default is 1590) AN208 User Manual Version 1.5 December 2006...

  • Page 10: Handset Operation

    - Press OK key to confirm. - Select RING GROUP by using the UP and DOWN keys Press OK key to confirm. Select the desired external line by using UP and DOWN keys Press OK key to confirm. Select the handset not to ring by pressing a number from 1 to 9 (1 = handset No. 1). The selected handset number will appear as “X”.

  • Page 11: Making An Internal Call

    No. Press Line key again to disconnect the call and transfer the call to the handset The call has now been transferred. 4.4.3 Making a Hands Free Phone Call AN208 User Manual Version 1.5 December 2006...

  • Page 12: Changing The Speaker Volume

    With the Aristel DC209 handset you can make handsfree phone calls. Press the Line button , during conversation, for minimum 2 seconds. You can now make the conversation handsfree via the built-in speaker and microphone. Press the Line button again for 2 seconds to stop the hands free mode or press the line key for less than 1 second to disconnect the call.

  • Page 13: Call Transfer, On Hold, Toggle And Three Party Conference

    One call will be placed on hold and you can talk to the other caller. Note: If you press the Line button, you will be disconnected and the other handset will be talking to the external caller alone. AN208 User Manual Version 1.5 December 2006...

  • Page 14: Three Party Conference Call

    5.4. Three Party Conference Call You can establish a three party conference with another internal caller and an external caller. Put the external call on hold by pressing OK/INTERCOM key. Enter the called internal handset No., when the call is connected, press “#” button for 2 sec to establish three party conference.

  • Page 15: Changing A Number And/Or Name In Phonebook

    - Select PHONE BOOK by using the UP and DOWN keys - Press OK key to confirm. - Select EDIT by using the UP and DOWN keys Press OK key to confirm. AN208 User Manual Version 1.5 December 2006...

  • Page 16: Reading The Phonebook List

    Select the name and number to change by using UP and DOWN keys Press OK key to confirm. Use C button to erase old entry, enter new number and press OK key to confirm. During changing, press C button for 2 seconds to abort. 6.4 Reading the Phonebook List Press Menu key when the handset is in standby mode..

  • Page 17: Handset Settings

    - Select the desired ringer volume by using the UP and DOWN keys - Press OK to confirm. 7.3. Selecting the Ringer Melody and Volume for Internal Calls - Press MENU key when the handset is in standby mode.. AN208 User Manual Version 1.5 December 2006...

  • Page 18: Hot Call/Baby Call Function

    - Select HS SETTING by using the UP and DOWN keys - Press OK to confirm. - Select SET INTRING/MELODY INT by using the UP and DOWN keys - Press OK to confirm. - Select the desired ringer melody by using the UP and DOWN keys - Press OK to confirm.

  • Page 19: Naming A Handset

    - Press OK to confirm. Enter the Handset Pin code, HS PIN: (DEFAULT PIN = 1590) Press OK to confirm. - Enter the new Pin code: NEW PIN - Press OK to confirm. AN208 User Manual Version 1.5 December 2006...

  • Page 20: Auto Pickup On/Off

    - Re-enter the new Pin code: RETYPE: - Press OK to confirm. 7.8. Auto PICKUP On/Off When a call comes in, a handset automatically answers the call when it is removed from charger . Press MENU key when the handset is in standby mode.. - Select HS SETTING by using the UP and DOWN keys - Press OK to confirm.

  • Page 21: Handset Reset

    ESC to leave the setting. 8. Subscribe / Unsubscribe a Handset 8.1. Subscribe a handset to the DECT system Every new handset must be subscribed onto the base station before you can make a phone call. AN208 User Manual Version 1.5 December 2006...
  • Page 22 If you want to subscribe a new handset on the DECT PABX station or when you have unregistered a handset and need to subscribe it again, you must first use any of the already-registered Aristel DECT PABX handsets to grant the new handset registration.

  • Page 23: Remove Subscription Of A Handset From The Dect System

    - Enter the Base Pin code MASTER PIN (Default is 1590) - Press OK key to confirm. - Select REMOVE HS by using the UP and DOWN keys Press OK key to confirm. Press OK key to confirm. AN208 User Manual Version 1.5 December 2006...

  • Page 24: To Change The Previously Assigned Handset No

    Select the desired handset by pressing number from 1 to 9 (1 = handset No. 1) from available list. Selected handset number will appear “X” The in-use handset is indicated “M” and cannot be removed. Press DOWN key for handset No.10 to No.15. Ex., press 0 for No.10 and press 2 for handset No. 12. Selected handset number will appear “X”...

  • Page 25: Set Recall/Flash Time

    Select the desired PAUSE time by using UP and DOWN keys Press OK key to conform. 9.4. Call Barring You can program up to five different call barring codes, and assign one of the call barring codes to any handset. AN208 User Manual Version 1.5 December 2006...

  • Page 26: Least Cost Route

    Press MENU key when the handset is in standby mode. Select BS SETTING by using the UP and DOWN keys and press OK key - Enter the Base Pin code MASTER PIN (Default is 1590) Press OK key to confirm Select CALL BARRING by using UP and DOWN keys - Press OK key to conform.

  • Page 27: Change Pin Code

    9.7 Reset Base Station Settings - Press OK key to conform. Default Settings: Dialing mode: DTMF Flash time : 100 ms Pause time: 3 sec Line Selection: Alternate Ringer Priority : off Call Barring : off AN208 User Manual Version 1.5 December 2006...

  • Page 28: Technical Data

    • Base Station: 179 x 141 x 42 m/m L/W/D • Charger: 80 x 60 x 110 m/m L/W/D • Weight: Handset: 150g (approx.) • Base station: 400g (approx.) • Charger: 80g (approx.) AN208 User Manual Version 1.5 December 2006...
