Aristel 50 Series User Manual

Keyphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

FOR 50 or 70 Series Keyphone
KEY TELEPHONE LAYOUT .................................................................................................... 2
.................................................................................................................. 4
.................................................................................................................. 4
............................................................................................................... 4
....................................................................................................................... 5
.................................................................................................................... 5
..................................................................................................................... 5
...................................................................................................................... 5
................................................................................................................... 6
................................................................................................................ 6
................................................................................................................ 6
..................................................................................................................... 7
.......................................................................................................................... 7
............................................................................................................................. 7
.............................................................................................................................. 7
....................................................................................................................... 8
................................................................................................................. 9
....................................................................................................................... 9
............................................................................................................................... 10
.................................................................................................................................... 10
.................................................................................................................... 10
............................................................................................................................. 10
................................................................................................................................. 11
................................................................................................................................ 11
.................................................................................................................................. 12
...................................................................................................................... 12
........................................................................................................................... 13
............................................................................................................................. 14
V
V
DSS BUTTON LAYOUT.......................................................................................................... 15
USER GUIDE

Table of Contents

.......................................................................................................... 4
........................................................................................................... 4
.................................................................................................... 6
(
) ..................................................................................................... 7
............................................................................................. 8
........................................................................................................ 8
.................................................................................... 12
............................................................................................. 14
1
) ................................................................ 7
) ................................................................ 14
) ............................................................ 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aristel 50 Series

Summary of Contents for Aristel 50 Series

  • Page 1: Table Of Contents

    USER GUIDE FOR 50 or 70 Series Keyphone Table of Contents KEY TELEPHONE LAYOUT ....................2 ........................4 NSWERING ALLS CO A ......................4 UTOMATIC CCESS ........................4 ONITORING ....................... 4 ACKGROUND USIC ......................4 ALCULATOR UNCTION ........................5 ORWARD ........................

  • Page 2: Key Telephone Layout

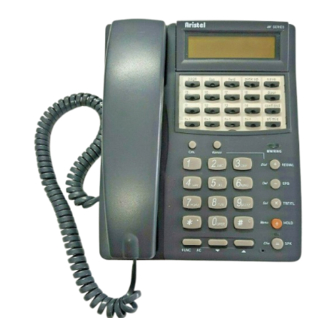

    KEY TELEPHONE LAYOUT For 50 Series Keyphone Features: Hook Handpiece Wall Mount Clip Speaker Function Keys Quick Reference Card Handsfree Microphone Dial Keypads DSS Keys Handset Cord Jack Table/Wall Mount Bracket Line Cord Jack MW lamp LCD Display...
  • Page 3 For 70 Series Keyphone Features: Hook Switch LCD Display DSS Keys MW Lamp Redial Key Speed Dial Key Transfer/Flash Key Hold Key Speaker Indicator Speaker Key Microphone Volume Upwardly Adjustable Key Volume Downwardly Adjustable Key Function Key Handpiece Wall Mount Clip Speaker Calculator Pick Up Key (Remark)

  • Page 4: Answering Calls

    To Start Press [#]. To Cancel Press [#] or [SPK]. Calculator Function For 50 Series Display Models only: Press [CAL] button to start/cancel calculator function. Functions: [＋] (Plus) located on [REDIAL] button [－] (Minus) located on [SPD] button [Ｘ] (Multiply) located on [FUNC] button [ ] (Divide) located on [Trf/Fl] button [﹦] (Equal) located on [HOLD] button...

  • Page 5: Call Forward

    For 70 Series Display Models only: Press [CAL] button to start/cancel calculator function. Functions: [＋] (Plus) located on [REDIAL] button [－] (Minus) located on [SPD] button [Ｘ] (Multiply) located on [Trf/Fl] button [ ] (Divide) located on [HOLD] button [﹦] (Equal) located on [SPK] button [．] (Decimal) located on [*] button [Ｃ] (Clear Digit) located on [#] button Caller ID Search...

  • Page 6: Changing Signal

    Changing Signal Voice to Ring or Ring to Voice During Intercom call, press [*] to change signal. Conference Calls (Maximum of Three (3) Parties) Supervised Lift handset. Dial Party A. Place Party A on hold. Dial Party B. When answered Press [CONF/DND]. Unsupervised Lift handset.

  • Page 7: Date/Time Setting

    Date/Time Setting (Console Only ie EXT 11,12,13,14) Press [FUNC]+[9]+[#]. Enter 00 for item. Set Date/Time: [MM]+[DD]+[YY]+[DW]+[hh]+[mm] or [DD]+[MM]+[YY]+[DW]+[hh]+[mm] (depending on EPROM Version). Press [SAVE]+[SPK]. [MM] Month = 01 ~ 12 [DD] Day = 01 ~ 31 [YY] Year = 00 ~ 99 [DW] Day of Week = 01 ~ 07 (Monday = 01) [hh]...

  • Page 8: Intercom Call

    Individual Alarm/Morning Call Individual Station Alarm Press [FUNC]+[REDIAL]+[Alarmed Station Number]. Set Time and Duration: *[hh]+[mm]+[Duration]. Press [SAVE]. [hh] Hour = 00 ~ 23 [mm] Minute = 00 ~ 59 [Duration] = 01 ~ 99 (99 = Morning Call) Note: If the Duration is not 99, then the Morning Call function will become Alarm function.

  • Page 9: Macro Key Assignment

    Macro Key Assignment Handset on hook. Press [FUNC]+[7]. Press one DSS key from DSS16 ~ DSS25. Press keys in sequence. Press [SAVE]. To Cancel Macro Key Handset on hook. Press [FUNC]+[7]. Press one DSS key from DSS16 ~ DSS25 that has already been programmed as a Macro Key.

  • Page 10: Monitor

    Monitor To activate Zone 504-ST-02 refer to your dealer for programming. Once programmed, lift handset and dial number. If the station or CO line is busy, press [#]. During monitoring, the monitoring party can hear the existing conversation from the two monitored parties, but the monitored parties cannot hear the monitoring party.

  • Page 11: Paging

    Paging General Paging Lift handset. Press [#]. Dial Paging Code*. Paging Codes: 0 = All Internal and External Zone Paging 1 = All Internal Zone Paging 2 = 2 + Internal Zone Number [1 ~ 8] 3 = 3 + External Zone Number [1 ~ 8] 9 = All External Zone Paging Quick Paging Lift handset.

  • Page 12: Redial

    Redial Last Number Redial Press [REDIAL]. Caller Number Redial Search the correct caller ID number on display. Press [REDIAL]. Auto Redial Refer to Programming Manual for programming To Store Numbers of DSS button to Store Numbers function. If the called party does not answer, press DSS button programmed as SAVE (Auto Save) will show on display handsets).

  • Page 13: Speed Dial

    * Line Representative Codes: DV-22……401 ~ 406 DV-38……401 ~ 412 (PSTN/BRI/GSM) ~ 432(PRI) DV-96……401 ~ 416 (PSTN/BRI/GSM) ~ 442(PRI) AV-20……401 ~ 404 AV-38……401 ~ 412 AV-48…….401 ~ 408 AV-64…….401 ~ 420 AV-96…….401 ~ 420 AV-256…...401 ~ 440 Speed Dial (There are two types of Speed Dial numbers) System Speed Dial These numbers can be accessed by any handset.

  • Page 14: Station Operation Help List

    Name Speed Dialing (Console Only Operation) (Refer to System Administrator’s Manual) Handset on Hook. Press DSS button programmed for Name Speed Dial. Enter the first character of the name. Press [DSS1] to confirm entry. Press [DSS1] to search backwards, press [DSS2] to search forward.

  • Page 15: Volume/Frequency Control

    [VOL] button to adjust Volume level. Handset Volume Level During hearing audio from Handset, press indicators on [VOL] button to adjust Volume level. DSS Button Layout (DSS For Programming Function) For 50 Series Key Phones For 70 Series Key Phones...

This manual is also suitable for:

70 seriesDv-38
