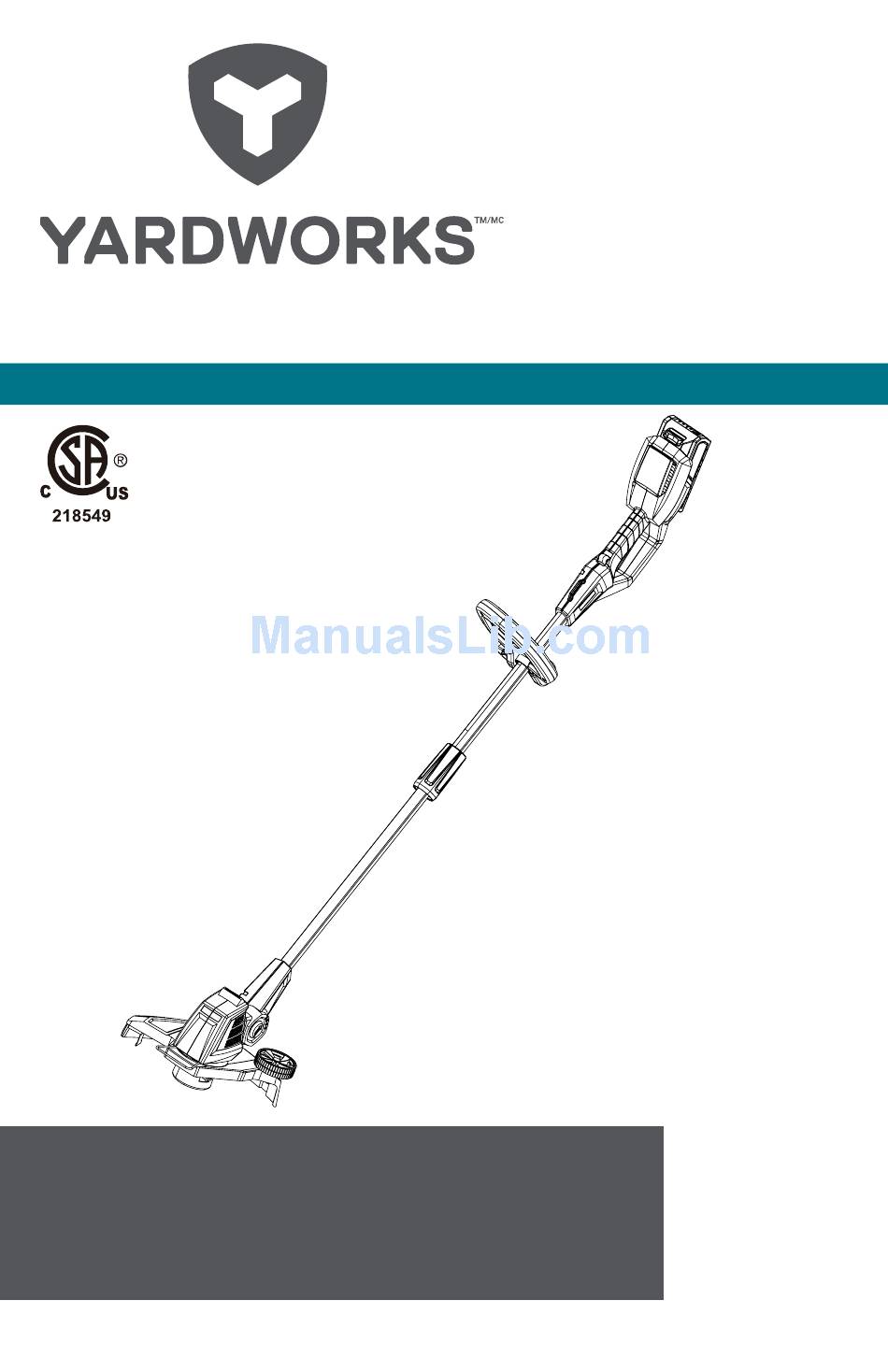

Cordless Grass Trimmer
model number 060-2370-2 | contact us: 1.866.523.5218
IMPORTANT:
Instruction
Read and follow all safety rules and operating
Manual
instructions before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 060-2370-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yardworks 060-2370-2

  • Page 1 Cordless Grass Trimmer model number 060-2370-2 | contact us: 1.866.523.5218 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.
  • Page 2 060-2370-2 | contact us: 1.866.523.5218 TABLE OF CONTENTS SpECiFiCATiONS KNOW YOUR TRimmER impORTANT SAFETY iNSTRUCTiONS SYmBOLS EXpLODED ViEW pARTS LiST ASSEmBLY OpERATiON mAiNTENANCE WARRANTY Battery: 40 V max*, 2 Ah, lithium-ion Speed: 9000 Rpm (no load) Battery runtime:...
  • Page 3 060-2370-2 | contact us: 1.866.523.5218 1- Lock-out button 2- Battery 3- Trigger switch 4- Auxiliary handle 5- Knob 6- Charger 7- pivoting head button 8- Spool housing 9- Edge guide 10- Guard 11- Edging button KNOW YOUR GRASS TRIMMER/EDGER The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you...
  • Page 4 • Use battery operated string trimmer only with specifically designated battery pack. Use of any other batteries may create a risk of fire. • For use with Yardworks™ 40 V (3 Ah) Lithium-ion Battery pack (model no. 060-7259-0). Refer to your battery owner’s manual for further information.
  • Page 5 060-2370-2 | contact us: 1.866.523.5218 serious personal injury. • Store idle appliances. When not in use, string trimmer should be stored indoors in a dry, locked place out of the reach of children. • Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts.
  • Page 6 060-2370-2 | contact us: 1.866.523.5218 • Do not place battery-powered string trimmers or their batteries near fire or heat. This will reduce the risk of explosion and possibly injury. • Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow.
  • Page 7 060-2370-2 | contact us: 1.866.523.5218 • Use Right Appliance - Do not use appliance for any job except that for which it is intended. • Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys.
  • Page 8 060-2370-2 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. please study them and learn their meaning. proper interpretation of these symbols will allow you to operate the product safely. Symbol Name...
  • Page 9 060-2370-2 | contact us: 1.866.523.5218...
  • Page 10 060-2370-2 | contact us: 1.866.523.5218 item Description part Number Qty. Auxiliary Handle 34108884A Auxiliary Handle Knob 34116884A Edge Guide 33301708 Guard 311071436 Screw 3220905 Upper Shaft Assembly 311101436 Lower Shaft Assembly 311111436 Spool 31106334 Spool cover 3411546AB Yardworks 40 V Battery pack...
  • Page 11 060-2370-2 | contact us: 1.866.523.5218 ASSEMBLING THE GUARD (See Fig. 1) To avoid injury, always remove the battery pack before installing the guard, changing a cutting line, or making any adjustments. if the guard is damaged, do not use the grass trimmer/edger until it is replaced.
  • Page 12 060-2370-2 | contact us: 1.866.523.5218 ASSEMBLING AUXILIARY HANDLE (See Fig. 2) To avoid injury, adjust the auxiliary handle for optimum control and balance. Do not overreach when operating the grass trimmer. Keep proper balance at all times for better control of the tool in unexpected situations.
  • Page 13 060-2370-2 | contact us: 1.866.523.5218 TO REMOVE THE SPOOL: Disconnect trimmer from the power supply. Turn grass trimmer/edger over to access the spool. Remove spool cover by pressing on two tabs parallel to each other on the side of the cover (2).
  • Page 14 060-2370-2 | contact us: 1.866.523.5218 (See Fig. 5) To Turn On/Off: press the safety lock out button (2) and squeeze the trigger switch (1) to start. Release the trigger switch (1) to stop. Edging position Fig. 5 See Fig. 6)
  • Page 15 060-2370-2 | contact us: 1.866.523.5218 Trimmer Tips • if the battery must be stored in a warm place, charge it frequently. • Before trimming, inspect the area for string, wire, branches or other material that may become entangled in the cutting line and thrown.
  • Page 16 060-2370-2 | contact us: 1.866.523.5218 CHARGING PROCEDURE • plug the charger into an AC power outlet. • insert the battery pack (1) into the charger (2). This is a diagnostic charger. The Charger LED Lights (3) will illuminate in specific order to communicate the current battery status.
  • Page 17 060-2370-2 | contact us: 1.866.523.5218 CHARGER MAINTENANCE • Keep the charger clean and clear of debris. Do not allow foreign material into the recessed cavity or on the contacts. Wipe with a dry cloth. Do not use solvents, water, or place in wet conditions.
  • Page 18 060-2370-2 | contact us: 1.866.523.5218 CLEANING Remove the battery pack. Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water.
  • Page 19 060-2370-2 | contact us: 1.866.523.5218 TWO-YEAR LIMITED WARRANTY HOW TO OBTAIN SERVICE: For TWO YEARS from the date of purchase Warranty service is available by calling within Canada, Yardworks CANADA will, at the toll-free helpline, at 1.866.523.5218. its option, repair or replace for the original...
