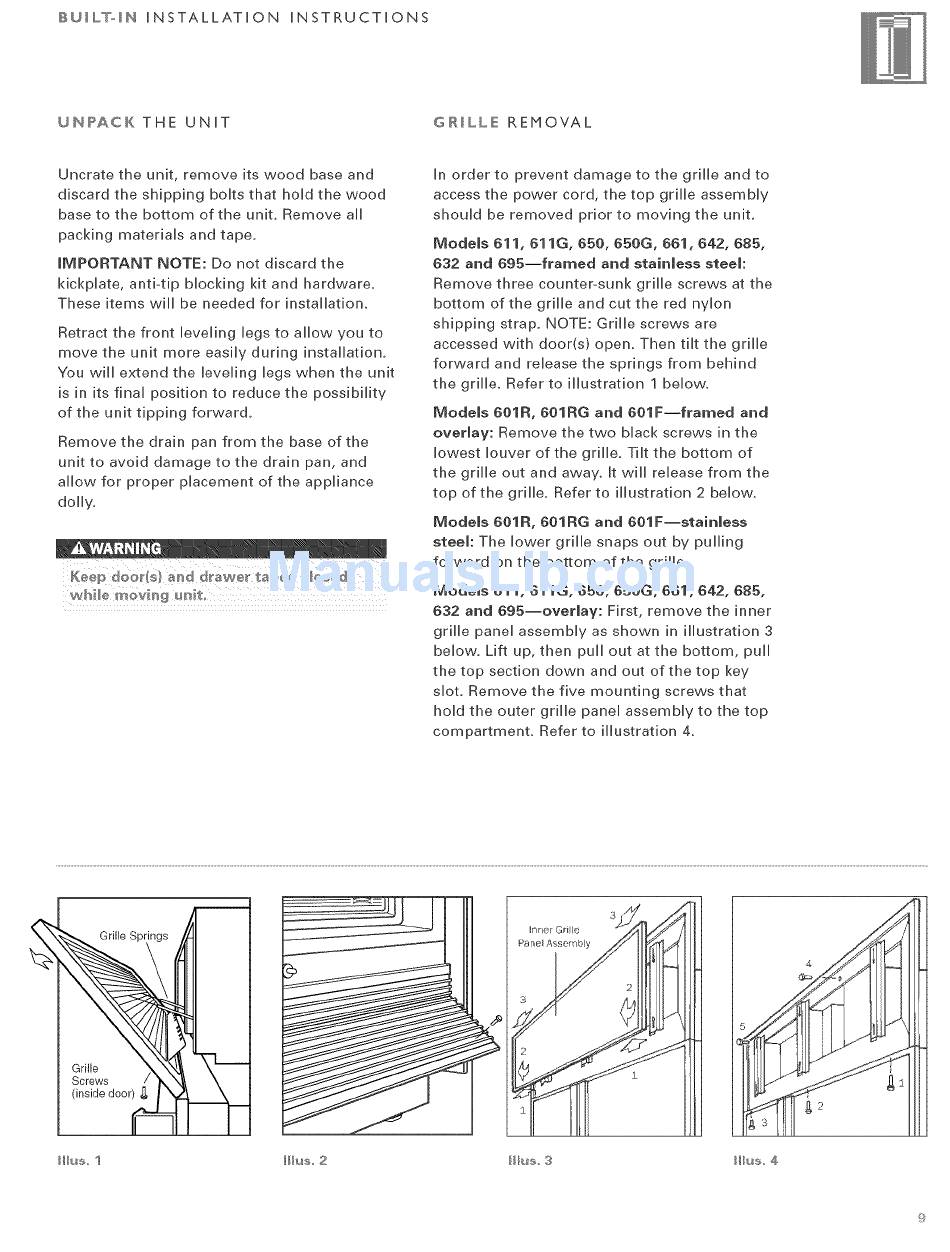

BUILT-iN iNSTALLATiON iNSTRUCTiONS
UNPACK THE UNiT
GRILLE REMOVAL
Uncrate the unit, remove its wood base and
discard the shipping bolts that hold the wood
base to the bottom of the unit, Remove all
packing materials and tape.
IMPORTANT NOTE: Do not discard the
MckpJate, anti-tip bJocMng kit and hardware,
These items wHJ be needed for instaHafion,
Retract the front leveling legs to allow you to
move the unit more easily during installation,
You will extend the leveling legs when the unit
is in its final position to reduce the possibility
of the unit tipping forward.
Remove the drain pan from the base of the
unit to avoid damage to the drain pan, and
allow for proper placement of the appliance
dolly,
while mevi!°_g _Jrsit_
In order to prevent damage to the grille and to
access the power cord, the top grille assembly
should be removed prior to moving the unit.
Models 611, 611(3,650, 650(3,661,642, 685,
632 and 696--framed arid stainless steel:
Remove three counter-sunk grille screws at the
bottom of the grille and cut the red nylon
shipping strap. NOTE: Grille screws are
accessed with door(s) open. Then tilt the grille
forward and release the springs from behind
the grille, Refer to illustration 1 below,
Models 601R, 601R(3 arid 601FJfrariled arid
overlay: Remove the two black screws in the
lowest louver of the grille, Tilt the bottom of
the grille out and away, It will release from the
top of the grille, Refer to illustration 2 below,
Models 601R, 601RG arid 6OlFJstairiiess
steel: The lower grille snaps out by pulling
forward on the bottom of the grille.
Models 611, 611G, 650, 650G, 661,642, 665,
632 arid
695JOVeJ'Jay:
First, remove the inner
grille panel assembly as shown in illustration 3
below, Lift up, then pull out at the bottom, pull
the top section down and out of the top key
slot, Remove the five mounting screws that
hold the outer grille panel assembly to the top
compartment, Refer to illustration 4,
Screws
/ _k _
(inside door)____
k/rer ari }{!
Pa r_el Assembly
_h_s 4
