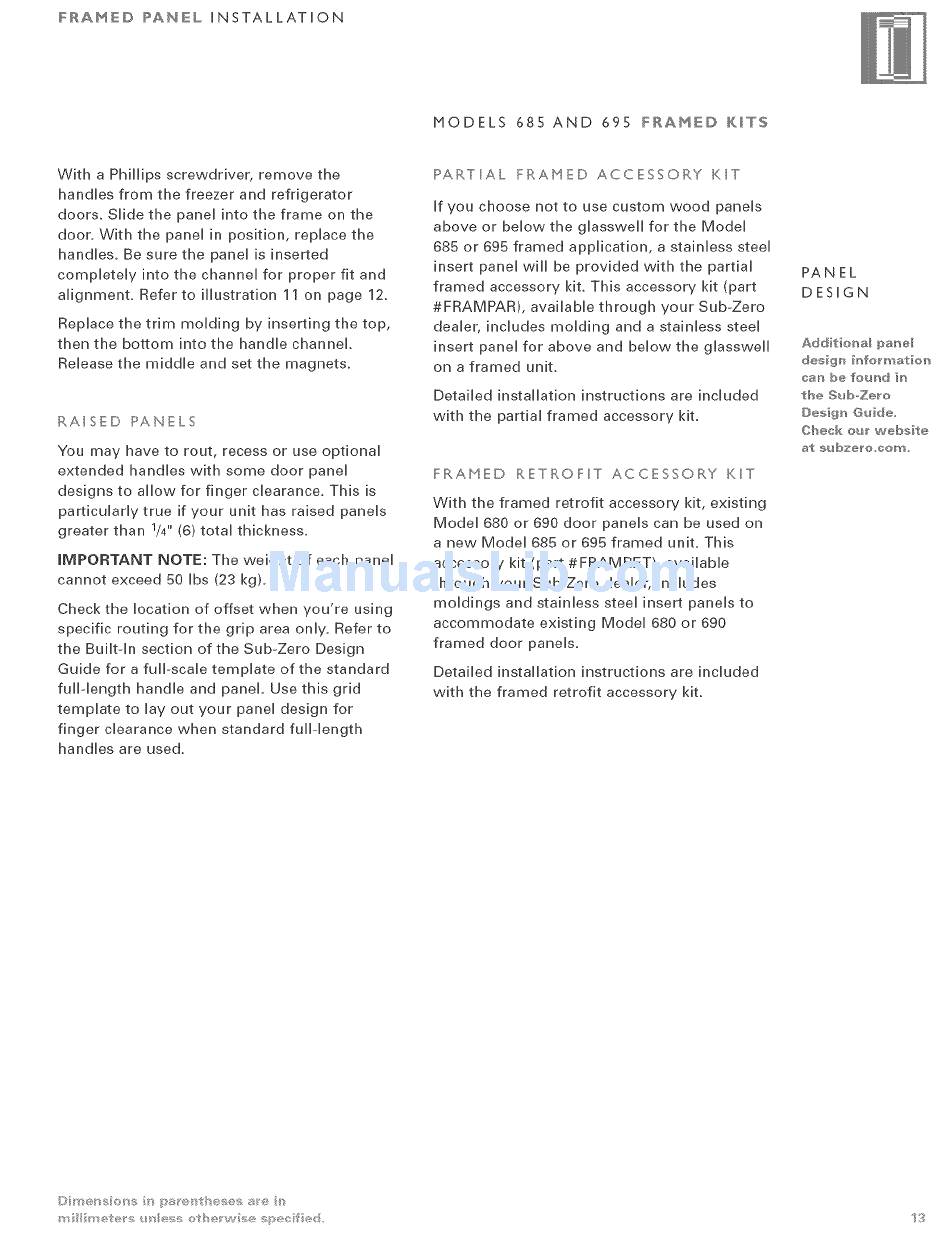

Sub-Zero 601R Installation Instructions Manual page 13

FRAMED PANEL INSTALLATION
MODELS 685 AND 695 FRAMED
I<IT$
With a Phillips screwdriver, remove the
handles from the freezer and refrigerator
doors. Slide the panel into the frame on the
door. With the panel in position, replace the
handles. Be sure the panel is inserted
completely into the channel for proper fit and
alignment. Refer to illustration 11 on page 12.
Replace the trim molding by inserting the top,
then the bottom into the handle channel.
Release the middle and set the magnets.
RAISED PANELS
You may have to rout, recess or use optional
extended handles with some door panel
designs to allow for finger clearance. This is
particularly true if your unit has raised panels
greater than 1/4" (6) total thickness.
IMPORTANT NOTE: The weight of each panel
cannot exceed 50 Ibs (23 kg).
Check the location of offset when you're using
specific routing for the grip area only. Refer to
the Built-In section of the Sub-Zero Design
Guide for a full-scale template of the standard
full-length handle and panel. Use this grid
template to lay out your panel design for
finger clearance when standard full-length
handles are used.
PAR]IAL FRAMED ACCESSORY KI°I
If you choose not to use custom wood panels
above or below the glasswell for the Model
685 or 695 framed application, a stainless steel
insert panel will be provided with the partial
framed accessory kit. This accessory kit (part
#FRAMPAR), available through your Sub-Zero
dealer, includes molding and a stainless steel
insert panel for above and below the glasswell
on a framed unit.
Detailed installation instructions are included
with the partial framed accessory kit.
FRAMED
RE]ROFI°I
ACCESSORY
KIT
With the framed retrofit accessory kit, existing
Model 680 or 690 door panels can be used on
a new Model 68B or 695 framed unit. This
accessory kit (part #FRAMRET), available
through your Sub-Zero dealer, includes
moldings and stainless steel insert panels to
accommodate existing Model 680 or 690
framed door panels.
Detailed installation instructions are included
with the framed retrofit accessory kit.
PANEL
DESIGN
Additio_aI i)ail_el
desig_ i_fo_aatio_
ca_s be fou_l_d i_
tlh÷ 9_4) Z÷l_'o
Desig_ Q_ide
Che_;:k our webs te
