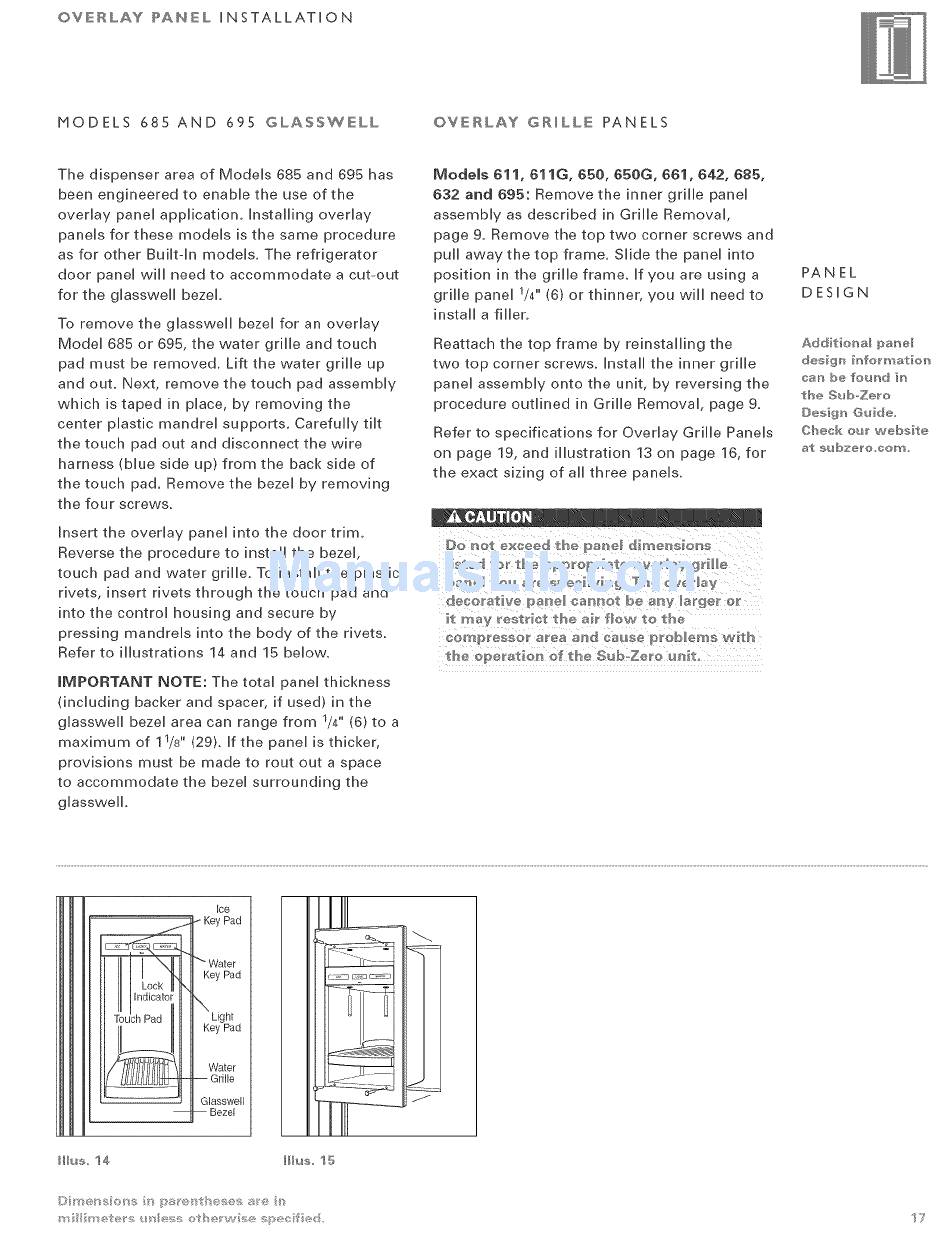

OVERLAY IAHEL INSTALLATION
MODELS 885 AND 69f GLAISWELL OVERLAY GRILLE PANELS
The dispenser area of Models 685 and 695 has
been engineered to enable the use of the
oveHay panel application, installing oveHay
panels for these models is the same procedure
as for other Builtdn modeb. The refrigerator
door panel will need to accommodate a cut-out
for the glasswell bezel.
To remove the glasswell bezel for an oveHay
Model 68B or 695, the water grille and touch
pad must be removed. Lift the water grille up
and out. Next, remove the touch pad assemNy
which is taped in place, by removing the
center plastic mandrel supports. Carefully tilt
the touch pad out and disconnect the wire
harness (blue side up) from the back side of
the touch pad, Remove the bezel by removing
the four screws.
Insert the overlay panel into the door trim.
Reverse the procedure to install the bezel,
touch pad and water grille. To install the plastic
rivets, insert rivets through the touch pad and
into the control housing and secure by
pressing mandrels into the body of the rivets.
Refer to illustrations 14 and 1B below.
IMPORTANT NOTE: The total panel thickness
(including backer and spacer, if used} in the
glasswell bezel area can range from 1/4" (61 to a
maximum of 11/s '' (29). If the panel is thicker,
provisions must be made to rout out a space
to accommodate the bezel surrounding the
glasswell.
Models 611, 6110,650, 650G, 661,642, 685,
632 and 695: Remove the inner grille panel
assembly as described in Grille Removal,
page 9, Remove the top two corner screws and
pull away the top frame, Slide the panel into
position in the grille frame. If you are using a
grille panel 1/4" (6) or thinner, you will need to
install a filler.
Reattach the top frame by reinstalling the
two top corner screws. Install the inner grille
panel assembly onto the unit, by reversing the
procedure outlined in Grille Removal, page 9.
Refer to specifications for Overlay Grille Panels
on page 19, and illustration 13 on page 16, for
the exact sizing of aii three panels.
PANEL
DESIGN
Additio_aI i)a_÷l
desig_ i_for_aatio_
tlh÷ 9_4} Z÷_ro
Desig_ G_id÷
Che_;:R ou_ webs te
Ice
J
J
