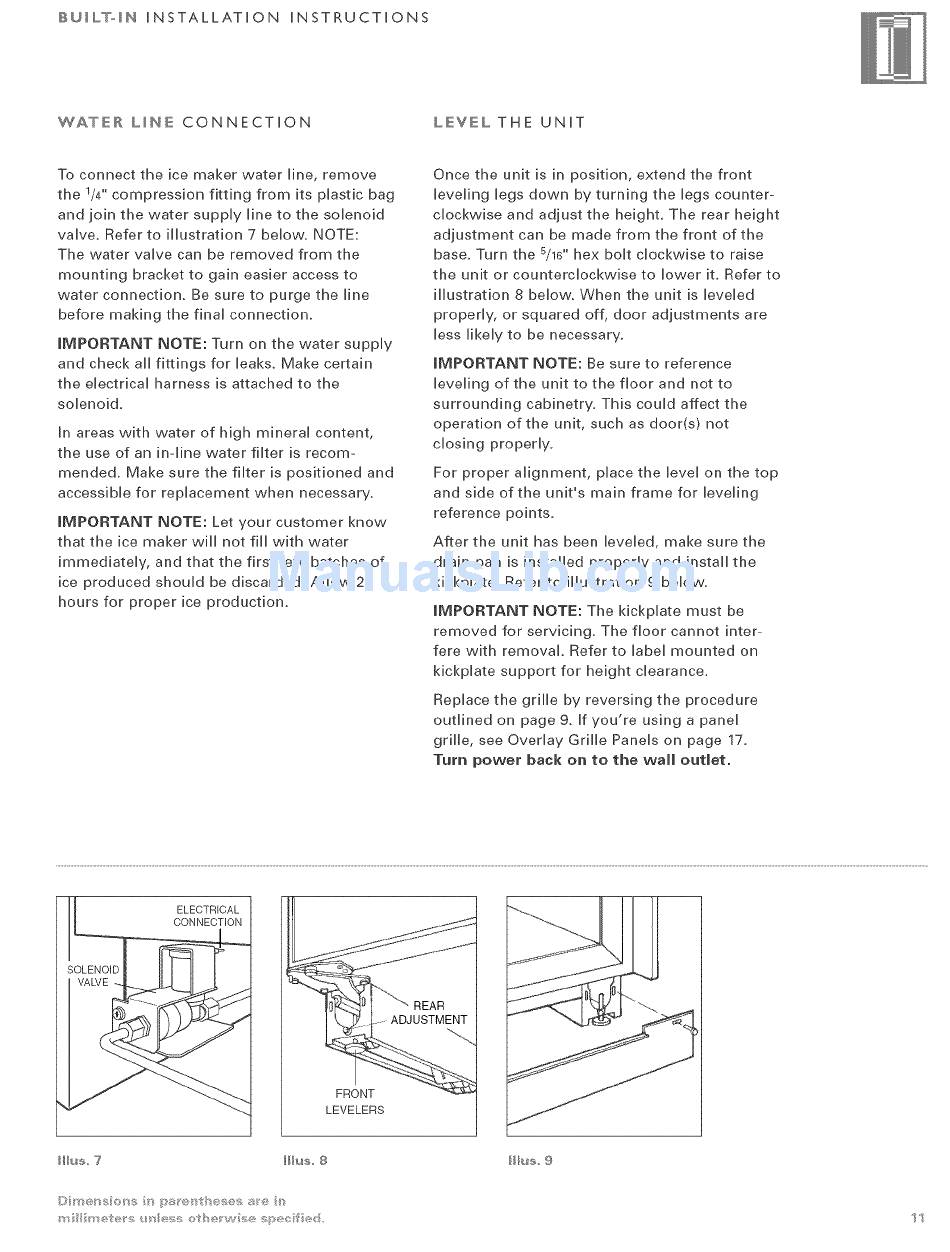

BUILT-I/% INSTALLATION INSTRUCTIONS
WATER
LiNE
CONNECTION LEVEL THE UNIT
To connect the ice maker water line, remove
the 1/4" compression fitting from its plastic bag
and join the water supply line to the solenoid
valve. Refer to illustration 7 below. NOTE:
The water valve can be removed from the
mounting bracket to gain easier access to
water connection. Be sure to purge the line
before making the final connection.
iMPORTANT NOTE: Turn on the water supply
and check all fittings for leaks, Make certain
the electrical harness is attached to the
solenoid,
In areas with water of high mineral content,
the use of an in-line water filter is recom-
mended. Make sure the filter is positioned and
accessible for replacement when necessary.
iMPORTANT NOTE: Let your customer know
that the ice maker will not fill with water
immediately, and that the first few batches of
ice produced should be discarded, Allow 24
hours for proper ice production,
Once the unit is in position, extend the front
leveling legs down by turning the legs counter-
clockwise and adjust the height. The rear height
adjustment can be made from the front of the
base. Turn the 5/16" hex bolt clockwise to raise
the unit or counterclockwise to lower it. Refer to
illustration 8 below. When the unit is leveled
properly, or squared off, door adjustments are
less likely to be necessary.
iMPORTANT NOTE: Be sure to reference
leveling of the unit to the floor and not to
surrounding cabinetry. This could affect the
operation of the unit, such as door(s) not
closing properly.
For proper alignment, place the level on the top
and side of the unit's main frame for leveling
reference points.
After the unit has been leveled, make sure the
drain pan is installed properly and install the
kickplate. Refer to illustration 9 below.
iMPORTANT NOTE: The kickplate must be
removed for servicing. The floor cannot inter-
fere with removal Refer to label mounted on
kickplate support for height clearance,
Replace the grille by reversing the procedure
outlined on page 9. if you're using a panel
grille, see Overlay Grille Panels on page 17.
Turn power back on to the wail outlet.
"_'-"- REAR
I ',,_fJ_ i. - ADJUSTMENT
LEVELERS
Ilh_s 7 Illus. 8
D _essiess /osl'e/'_/ _ese_,, S_'_7
I/us g
