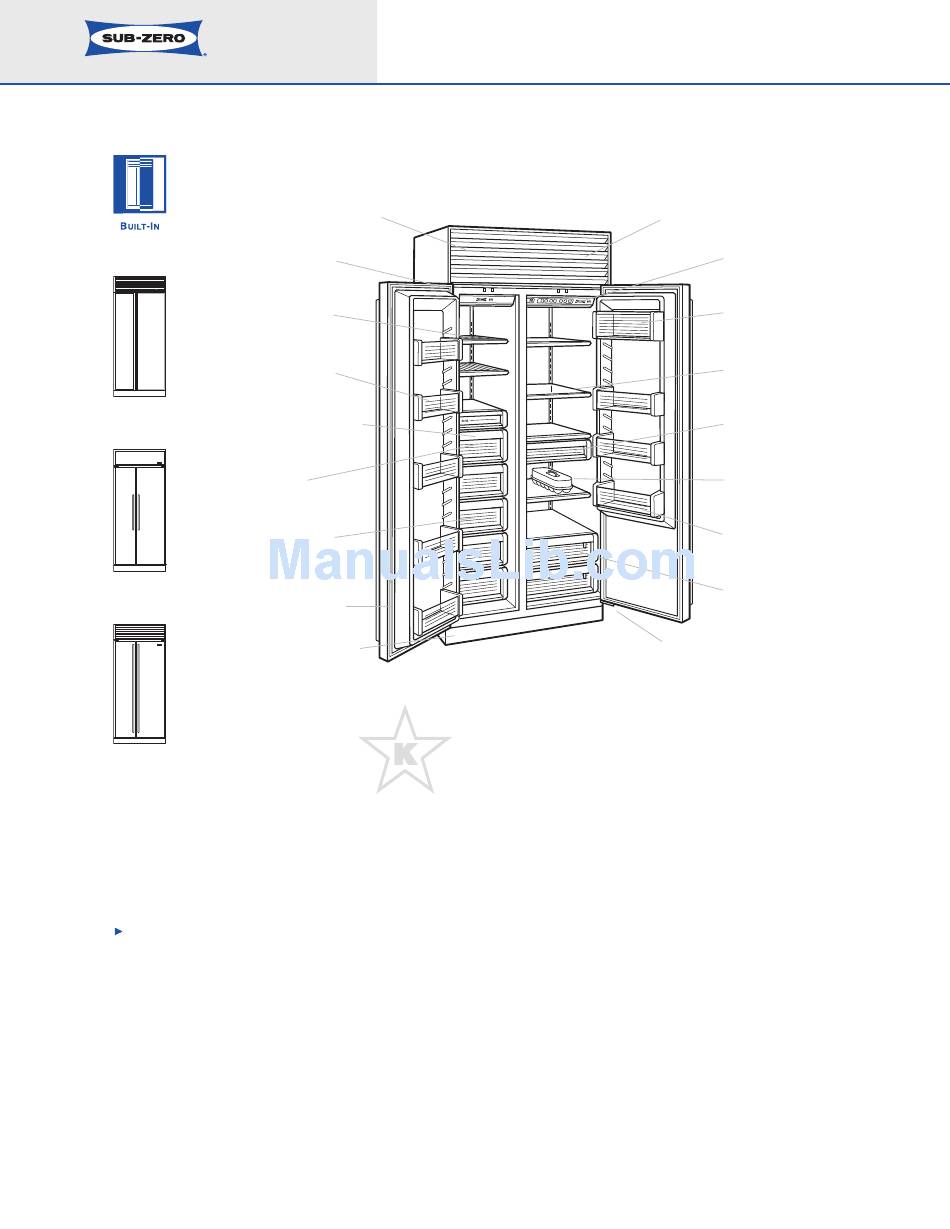

Planning Information
Built-In Model 661
Side-by-Side Refrigerator / Freezer
Front venting allows unit
to be completely built in
Serial and model
number plate
Adjustable wire
shelves
Adjustable door
shelves
Model 661/F
Framed
Automatic ice maker
Ice storage
drawer
Roll-out freezer
baskets
Model 661/O
Four-sided
Overlay
magnetic gaskets
Removable kickplate
Model 661/S (P/B)
Stainless Steel
The Sub-Zero Model 661 side-by-side
refrigerator / freezer is available in your
choice of the framed, overlay or stainless
steel design application. Three stainless
steel finishes are offered—classic (/S),
platinum (/P) and carbon (/B).
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
(Stainless steel design shown)
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
I
f you like the strong vertical lines of side-by-side
refrigerator freezers, Sub-Zero has the most complete
line available for your consideration. It all starts with
the Model 661, the smallest side-by-side unit at 36"
(914) wide. It has all the features and benefits of its
larger companions, but just carries them in a smaller
package.
Hermetically sealed
refrigeration units
Lighted electronic
control panel
Adjustable dairy
compartment
Adjustable spill-
proof glass shelves
Adjustable roll-out
utility basket
Egg container
Adjustable door
shelves
High humidity
crisper drawer
Door closers
1
