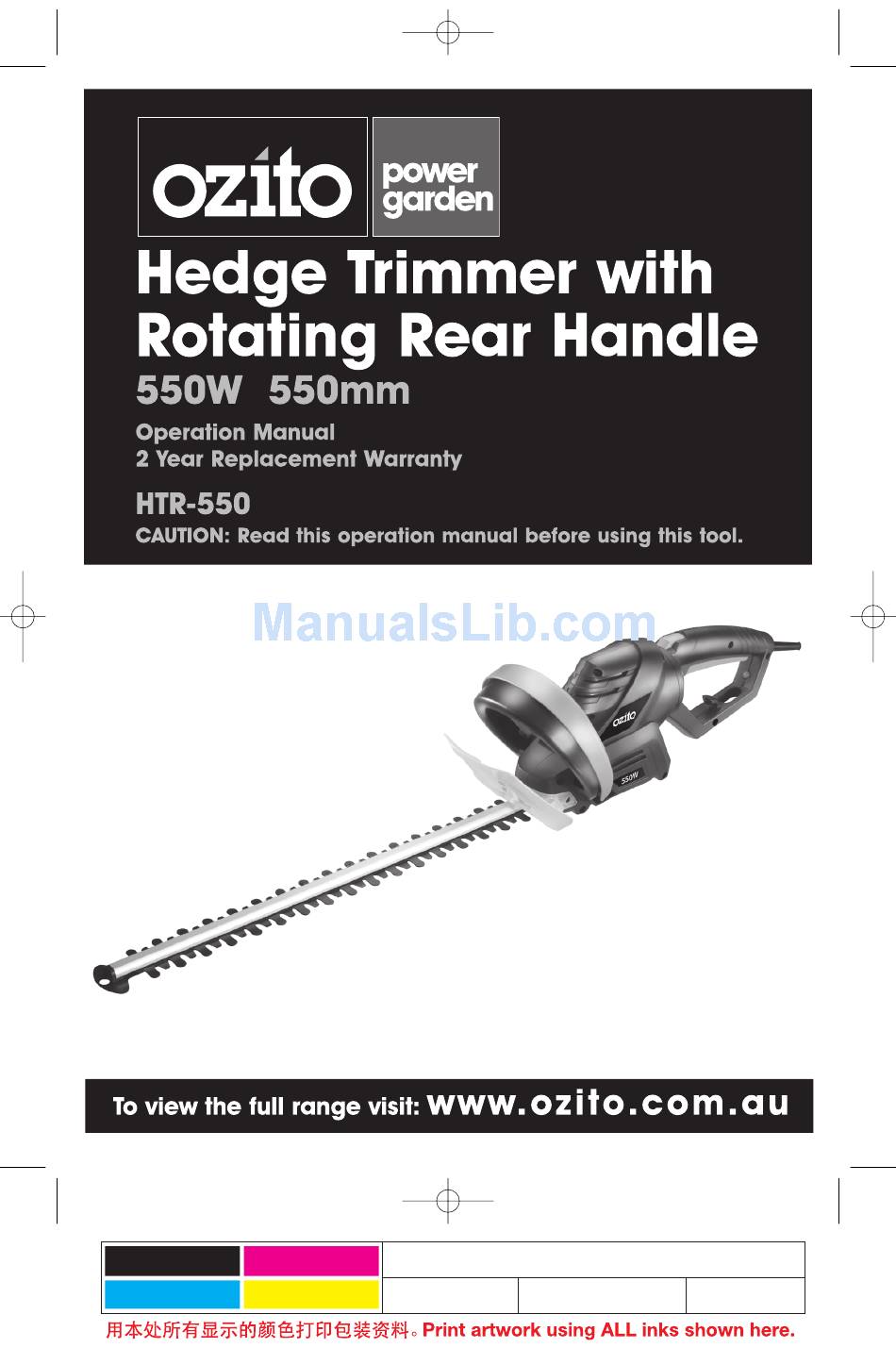

- Page 1 HTR-550 Manual.qxd 8/31/09 2:09 PM Page 1 0809 Black Magenta Code: HTR-550 Cyan Yellow Date: 31/08/09 Edition: 07 Op: Even...
-
Page 2: Specifications
HTR-550 Manual.qxd 8/31/09 2:09 PM Page 3 SPECIFICATIONS - MODEL NO. HTR-550 Motor: 550W Input: 230V ~ 50Hz Strokes per Min.: 1700 SPM Blade Length: 550mm Cutting Capacity: 20mm Weight (tool only): 1. Impact Guard 7. Rear Handle On/Off Switch 2. -
Page 3: Table Of Contents
HTR-550 Manual.qxd 8/31/09 2:09 PM Page 4 TABLE OF CONTENTS SPECIFICATIONS ………………………………………... Page 2 INTRODUCTION………………………………………… Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 OPERATION …………………………………………….. Page 8 MAINTENANCE …………….………………………….. Page 10 CONTENTS ……………………………………………… Page 13 WARRANTY………………………………………………. Page 14... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
HTR-550 Manual.qxd 8/31/09 2:09 PM Page 6 GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “Power Tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 HTR-550 Manual.qxd 8/31/09 2:09 PM Page 7 GENERAL SAFETY RULES (cont.) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 7 HTR-550 Manual.qxd 8/31/09 2:09 PM Page 8 ADDITIONAL SAFETY INSTRUCTIONS FOR HEDGE TRIMMERS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 8: Operation
HTR-550 Manual.qxd 8/31/09 2:09 PM Page 9 OPERATION Cord retainer When attaching an extension cord to the Trimmer, hook the end of the extension cord into the cord retainer (11) built into the rear of the Trimmer’s housing (Fig. 1). Using the... - Page 9 HTR-550 Manual.qxd 8/31/09 2:09 PM Page 10 OPERATION (cont.) Blade brake The Hedge Trimmer is fitted with a motor brake which will stop the cutting blade with 0.5 seconds as soon as either switch is released. Note: When the unit is switched off and the motor brake operates there may be some sparking (or flashing) visible in the area of the upper motor ventilation slots.
-
Page 10: Maintenance
HTR-550 Manual.qxd 8/31/09 2:09 PM Page 11 OPERATION (cont.) Side-trimming hedges Hold the Trimmer and begin at the bottom, sweep up (in this way the debris will fall away and not build up around the blades). Shaping The hedge should be trimmed to achieve a trapezoidal form, that is, it should widen toward the bottom at both sides. - Page 11 Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.
-
Page 12: Spare Parts
HTR-550 Manual.qxd 8/31/09 2:09 PM Page 13 SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part Part No. -
Page 13: Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Hedge Trimmer (HTR-550) 1 x Cutting Blade Cover 1 x Operation Manual OZITO INDUSTRIES PTY LTD... -
Page 14: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of purchase under the following conditions: Professional, industrial or high frequency use will VOID this warranty.
