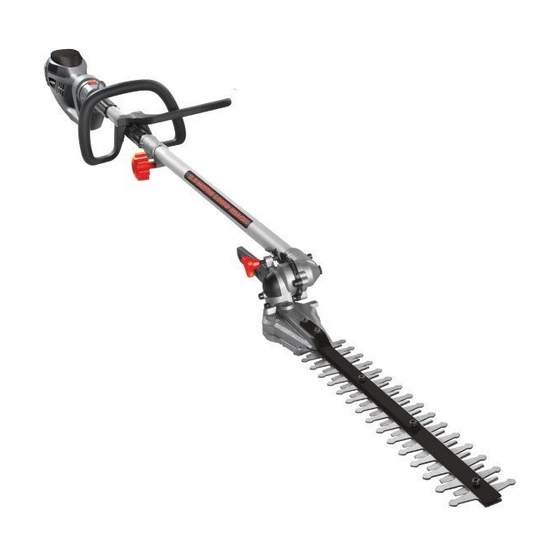

Pole Hedge Trimmer
410mm 900W
Instruction Manual
2 Year Replacement Warranty
PHT-410
! !
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and /or serious injury.
Save all warnings and instructions for future reference.
0212
www.ozito.com.au
To view the full range visit:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito PHT-410
Summary of Contents for Ozito PHT-410
- Page 1 410mm 900W Instruction Manual 2 Year Replacement Warranty PHT-410 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and /or serious injury. Save all warnings and instructions for future reference.
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. PHT-410 Motor: 900W Input: 230-240V ~ 50Hz No load speed: 1000/min Blade length: 410mm Max. blade capacity: 18mm Weight (tool only): 6.05kgs KNOW YOUR PRODUCT 1. Blade 12. Lower shaft 2. Gearbox 13. Safety slide 3. Blade adjustment locking knob 14. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 2 INTRODUCTION………………………………………… Page 4 ELECTRICAL SAFETY…………….……………………… Page 4 GENERAL SAFETY WARNINGS………………………… Page 5 HEDGE TRIMMER SAFETY WARNINGS……………… Page 7 ASSEMBLY………………………………………………… Page 8 OPERATION……………………………………………… Page 9 MAINTENANCE…………….…………………………… Page 12 TROUBLE SHOOTING…………….……………………. Page 13 SPARE PARTS …………….……………………………... Page 13 DESCRIPTION OF SYMBOLS …………………………. -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool" in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL POWER TOOL SAFETY WARNINGS d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 7: Hedge Trimmer Safety Warnings
HEDGE TRIMMER SAFETY WARNINGS • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury. -
Page 8: Assembly
HEDGE TRIMMER SAFETY WARNINGS (cont.) Using an Extension Lead Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective. When using an extension lead on a reel, always unwind the lead completely. -
Page 9: Operation
ASSEMBLY (cont.) Adjusting the auxiliary handle 1. Loosen the two allen screws securing auxiliary handle bracket (21), adjustable auxiliary D-handle (11) and adjustable auxiliary straight handle (10). 2. Move adjustable auxiliary handles up or down to the desired position. Retighten the two bolts to secure the adjustable handles. - Page 10 OPERATION (cont.) Switching on/off WARNING! Familiarise yourself with surrounding hazards such as power lines, phone lines, metal fences and other objects that could be in your trimming path, failure to do so could result in electrical shock, personal injury or damage to your pole hedge trimmer. For your safety, the Pole Hedge Trimmer is designed with a two button safety switch.
- Page 11 OPERATION (cont.) 3. Trimming new growth. Using a wide sweeping motion, feed the blade teeth through the twigs. A slight downward tilt of the blade, in the direction of motion gives the best cut (Fig. 8). Fig. 8 Note: Do not use the pole hedge trimmer for cutting stems greater than 18mm. Use the trimmer only for cutting normal shrubbery found around houses and buildings.
-
Page 12: Maintenance
Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 13: Trouble Shooting
Dull and/or damaged blades Contact Ozito customer service Blades are binging due to Check the blades and lack of lubrication lubricate or contact ozito service center for replacement blades Lubricate the blade with light machine oil or spray lubricant. SPARE PARTS Limited spare parts are available subject to availability. -
Page 14: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts No load speed /min Revolutions or reciprocation per minute Double insulated Regulator compliance mark Warning Keep hands away from blade Read instruction manual Beware of falling objects Wear gloves for Remove plug from the mains immediately cutting protection if the cable is damaged or cut Wear safety shoes for... -
Page 15: Pack Contents
Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. PACK CONTENTS 1 x Pole Hedge Trimmer (PHT-410) 1 x Adjustable auxiliary straight handle 1 x Blade cover 1 x Adjustable auxiliary handle bracket... -
Page 16: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
