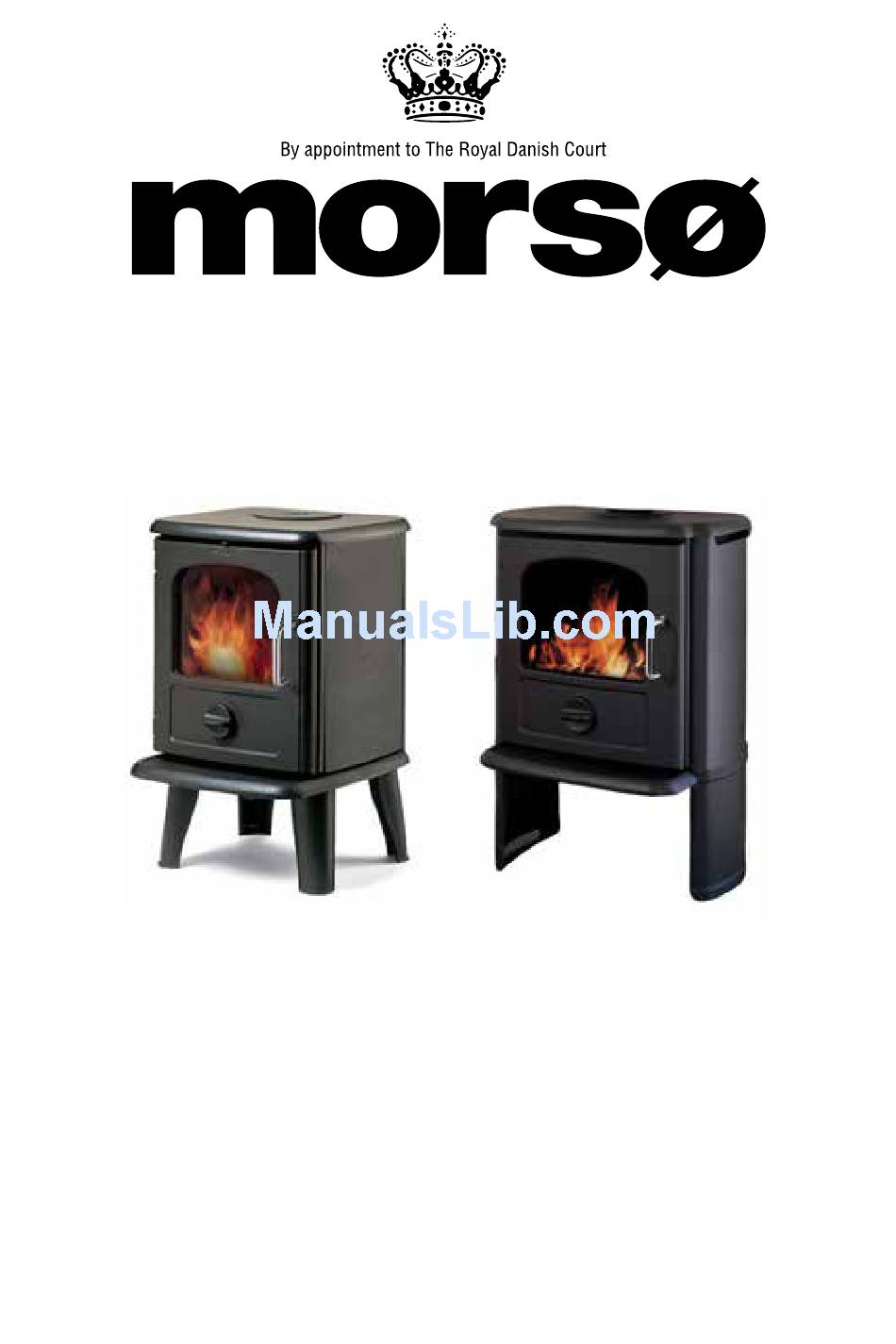

Installation and Operating Instructions

Read this entire manual before you install and use your new room heater. If this room heater is
not properly installed, a house fire may result. To reduce the risk of fire, follow the installation
instructions. Failure to follow instructions may result in property damage, bodily injury, or
even death.
Contact local building officials about restrictions and installation/inspection-requirements
in your area.
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
A French version of the manual can be downloaded at www.morsona.com
3112 & 3142
For use in North America
Save these instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Morso 3112

Summary of Contents for Morso 3112

  • Page 1: Installation And Operating Instructions

    Installation and Operating Instructions 3112 & 3142 For use in North America Read this entire manual before you install and use your new room heater. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions.

  • Page 2: Table Of Contents

    July 1, 1990 Before you start firing Lighting and loading intervals The Morsø 3112 & 3142 have been tested by OMNI-Test Laboratories, Inc. The test standards are ANSI/UL-1482 for the United States and ULC S627 for Canada. Maintenance Exterior maintenance The stove is listed for burning wood only.

  • Page 3: Checking Loose Parts In The Stove

    We recommend the length of the chimney system should be at least 16 feet (not required) above Morsø 3112: After removing the outer packaging, flatten it and lay onto the floor close to the the stove in normal domestic situations, measured from the flue collar to the top of the chimney.

  • Page 4: Flue Connection

    1.3 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate and a round blanking plate blocking off the rear flue exit (behind the rear shield plate). Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Refer to local codes and the chimney manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceiling.

  • Page 5: Positioning The Stove

    1.6 Mobile Home Installation The Morsø 3112 & 3142 can be installed in a mobile home if equipped with an outside combustion 3112 3142 16”...

  • Page 6: Operation

    • The stove must be secured to the mobile home structure by bolting through the 2.0 Operation hearth pad and into flooring. • The stove must be installed with a listed Type HT chimney connector, HT Chimney, 2.1 Before you start firing and terminal cap with spark arrestor. Never use a single wall connector (stovepipe) in a mobile home installation. For Use with Solid Wood Fuel Only. Do Not Overfire, If Heater or Chimney Connector •...

  • Page 7: Lighting And Loading Intervals

    In principle 7. Close the door. Leave the primary air supply fully open. Your stove is fitted with Primary and Secondary air inlets. Primary Air is controlled using the lever situated under the ash lip of the stove. Moving the control 8.

  • Page 8: Maintenance

    1. Lift the door off its hinges an place face-down on a sheet of cardboards or other non abrasieve 3.0 MAINTENANCE fabric. The door is removed by loosening the 2 screws with a hexagon box wrench by the hinges. When perfoming maintenance on your stove, always protect yourself, using safety goggles 2.

  • Page 9: Cleaning The Stove And The Flue

    Ceramic Gasket Then, using a mirror, sight up through the flue collar into the chimney flue. If you cannot inspect The gasket around the perimeter of the door may harden over a period of time. It should be the flue system in this fashion, the stove must be disconnected to provide better viewing access. replaced if it becomes difficult to close the door or if air starts to leak in around the perimeter of Clean the chimney using a brush the same size and shape as the flue liner.

  • Page 10: Parts Diagram

    3.6 Parts list for the model Morsø 3112 & 3142 3.5 Parts diagram for the model Morsø 3112 & 3142 Pos.No. Parts 3142 3112 Base plate 443145xx 443156xx Front frame 443146xx 443146xx Door 443124xx 443124xx Air valve 443104xx 443104xx Side plate...

  • Page 11: Parts List

    3.6 Parts list for the model Morsø 3112 & 3142 Pos.No. Parts 3142 3112 Baffle plate, upper 34313400 34313400 Inside top plate 34313300 34313300 Distance tube 54313100 54313100 Distance tube 54345500 54345500 Fitting for reg. 71346500 71346500 Draught Control 71346300...
