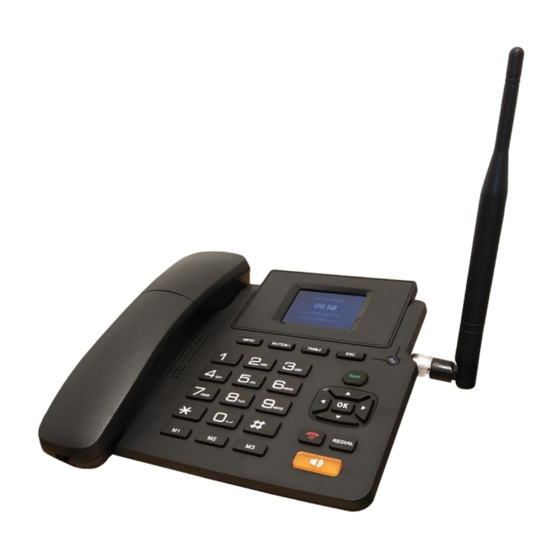

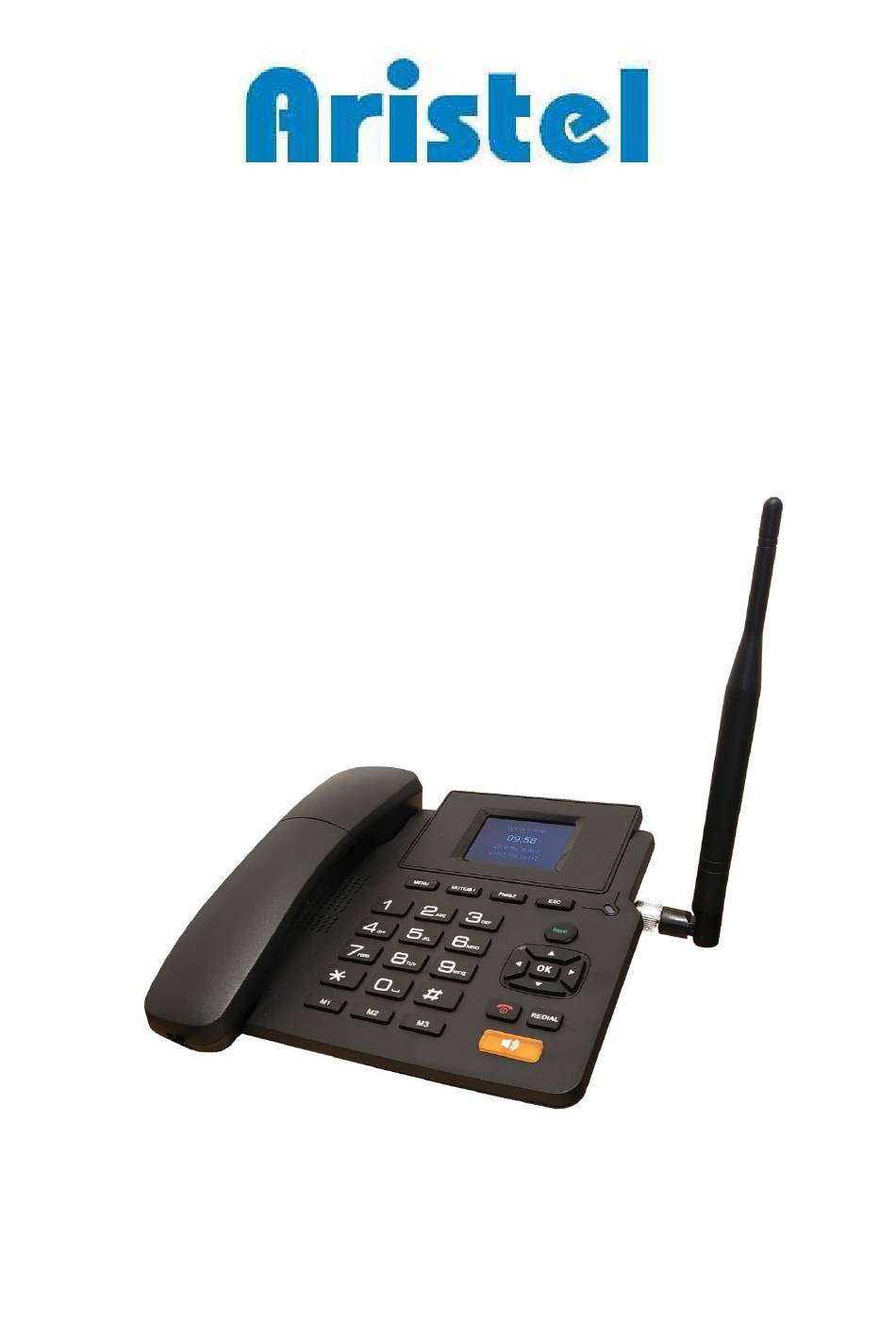

- Page 1 Genius X2 4G/SIP Desktop Phone Installation and Dealer Manual Genius X2 4G/VoIP Genius X2| User Manual | Page 1 / 24...
-
Page 2: Table Of Contents
Internet Connectivity Options ..................... 11 Activating Networks ........................12 Cellular Network for phone calls ....................12 Connecting other devices to the internet via the Genius X2 ............12 Connecting to an existing WiFi Network ..................13 Genius X2 Best Use Guide ....................... 14 Summary of user requirements .................... - Page 3 Dealer Code ............................. 23 Dealer Code via Genius X2 keypad ....................23 Dealer Code via web interface ....................23 Genius X2 4G/VoIP Genius X2| User Manual | Page 3 / 24...
-
Page 4: Basic Requirements And Environmental Requirements
Use only the supplied charger to power and charge the Genius X2. Ensure the battery is fully charged before use, or before the Genius X2 is to be left unattended for a long period of time. The display will indicate when the battery is being charged or is full. -
Page 5: Do's & Don'ts
Do not stress any cables connected to the phone, including the handpiece cable. If the Genius X2 is not working for any reason, do not attempt to repair it. Refer to the place of purchase or installer for the repair procedure. -
Page 6: Introduction
Introduction Thank you for choosing the Genius X2 Telephone. The Genius X2 features 4G VoLTE/3G/2G and VOIP enabled phone call options. This phone is designed for people: Without the NBN who require a telephone. Who require a phone with a landline number via a Voice over IP (internet) network. -
Page 7: Assembly
Main unit x 1pc Handpiece x 1pc Coil cord x 1pc Antenna x 1pc Battery x 1pc User manual x 1pc USB cable x 1pc Charger x 1pc Genius X2 4G/VoIP Genius X2| User Manual | Page 7 / 24... -
Page 8: Assemble The Genius X2 Hardware
Remove the battery, taking care not to put pressure on the wires. Insert the SIM card as shown. Slide the card as far as it will go. Genius X2 4G/VoIP Genius X2| User Manual | Page 8 / 24... - Page 9 As a guide, at a medium brightness, with the display set to auto turn off after 5 minutes and at the home screen, the Genius X2 has been tested to remain with power for 24 hours, with average use (3x 10 minute calls, no calls overnight) during this time. The battery is a backup only and not recommended as a mobile device.
-
Page 10: Basic Features
Left/Right Keys control in-call volume. Redial Instant redial of the last called number. Power (Long press) to power the Genius X2 on or off. Speaker Phone Hands-free Speaker Phone Function. Genius X2 4G/VoIP Genius X2| User Manual | Page 10 / 24... -
Page 11: Internet Connectivity Options
As a WiFi service for SIP calls (Where the NBN is already set up) Other devices would also connect to this network, such as tablets and laptops Genius X2 4G/VoIP Genius X2| User Manual | Page 11 / 24... -
Page 12: Activating Networks
An Access Point can be created in Cellular Mode to enable other WiFi devices, such as Phones, to connect to the internet via the Genius X2’s data network. For example, a laptop or Wi-Fi tablet connected to the internet via the Genius X2 can send and receive emails, and surf the internet. -
Page 13: Connecting To An Existing Wifi Network
Connecting to an existing WiFi Network The Genius X2 is able to connect to an existing Wi-Fi Network Menu Wi-Fi Settings Select your WiFi network with the up/down keys. Press the OK or Menu key. Select “Connect to network”... -
Page 14: Genius X2 Best Use Guide
1. This is a plug + play device for making and receiving calls and producing an internet connection via the Wi-Fi hotspot. 2. Insert an active SIM card to get dial tone. 3. Log on to the WiFi Hotspot using the password provided. Genius X2 4G/VoIP Genius X2| User Manual | Page 14 / 24... -
Page 15: Which Method Is Best For Me
Which method is best for me? It is a good idea to establish what you need the Genius X2 to do before committing to a cellular plan, if one has not been provided with the phone. It is also necessary to understand the cellular network coverage in your area. -
Page 16: Sip Account Parameters
A default dial out method can be chosen, depending on the requirement. If both cellular and VoIP are enabled, one will not override the other unless the option is selected after dialing a number and before lifting the handpiece. Genius X2 4G/VoIP Genius X2| User Manual | Page 16 / 24... -
Page 17: Navigating The Genius X2
(VoLTE, also known as Wi-Fi Calling). Technical assistance may be required to apply SIP settings. Settings Phone Specific settings. DND, Auto Answer, Auto SIP registration, Software upgrade over Wi-Fi & Memory key settings are configured. Genius X2 4G/VoIP Genius X2| User Manual | Page 17 / 24... -
Page 18: Using The Genius X2
For example, if the default is a VoIP account (landline) number and there is a SIM card in the Genius X2, it can be changed on a call to call basis so that the SIM card (and therefore a mobile number) is presented to the call recipient. This may also be an advantage with costs to other mobile phones, or international calls by choosing the account with the least cost associated with it. -
Page 19: Answering The Call
The Mute function is available during a call by pressing the MUTE button (2), or by pressing the OK key and selecting Mute from the available options. Repeat the process to unmute the call. Genius X2 4G/VoIP Genius X2| User Manual | Page 19 / 24... - Page 20 The active call will display a telephone icon next to it, as indicated in the screenshot below. Press the Options key then select “Meeting” to initiate a three way conference if required. If a call is ended, the inactive call automatically becomes active. Genius X2 4G/VoIP Genius X2| User Manual | Page 20 / 24...
-
Page 21: Troubleshooting
Contact the VoIP Carrier. SIM card error SIM card not inserted Adjust the SIM card, ensuring that properly. it is installed as per instructions. Possibly out of credit. Contact the carrier Genius X2 4G/VoIP Genius X2| User Manual | Page 21 / 24... -
Page 22: Appendix
TDD-LTE: B38/B39/B40/B41 be customized) WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 WIFI IEE802.11b/g/n Bluetooth Battery 1000mAh Antenna TNC detachable antenna connector, or fixed or built-in antenna Power Micro USB 5VDC input Genius X2 4G/VoIP Genius X2| User Manual | Page 22 / 24... - Page 23 To enter the dealer web interface, enter the verification password *#83731# and click Submit. Enter the dealer settings for up to two accounts on this page, click Submit. Genius X2 4G/VoIP Genius X2| User Manual | Page 23 / 24...
- Page 24 Note: If a complete factory reset is required, a password is required. This password is 00000000 (eight zeros). www.aristel.com.au Genius X2 Installation & Dealer Manual P/N ANGX2V4_202006 E.&.O.E. Genius X2 4G/VoIP Genius X2| User Manual | Page 24 / 24...
