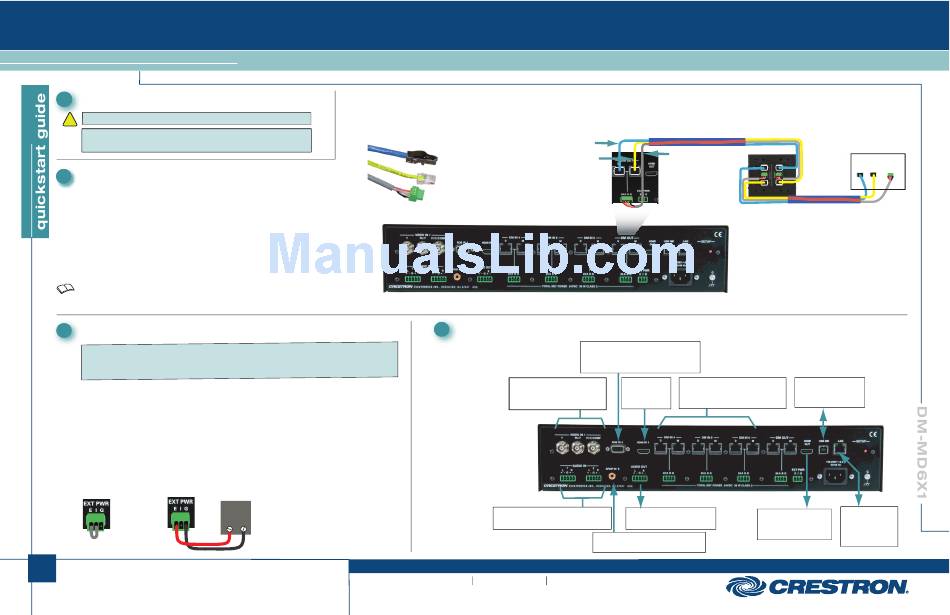

Crestron DM-MD6X1 Quick Start Manual

DM-MD6X1
1

Before Starting

CAUTION: Do not connect power cords until instructed to do so.
!
NOTE: Before beginning any of these QuickStart procedures, make NOTE: Before beginning any of these QuickStart procedures, make NOTE: Before beginning any of these QuickStart procedures, make NOTE: Before beginning any of these QuickStart procedures, make
certain that all DigitalMedia certain that all DigitalMedia certain that all DigitalMedia certain that all DigitalMedia ™ ™ ™ ™ cables are installed throughout the home. cables are installed throughout the home. cables are installed throughout the home. cables are installed throughout the home.
2

Connect DigitalMedia Room Controllers and Repeaters

™
A. Using a DigitalMedia cable (DM-CBL-P or DM-CBL-NP), connect the
switcher output directly to a DM-RMC-100 Room Controller, or, if required,
first connect to a DM-DR Repeater and then connect the output of the
DM-DR to a DM-RMC-100. The illustration immediately to the right shows
the special connectors used for the three cables contained within the
DigitalMedia cable. The illustration at the far right shows a typical wiring
configuration for the switcher's single DM output port. (The output can
support a maximum of up to three repeaters and one room controller.)
B. For detailed instructions on operation and setup of the DM-DR
Repeater and the DM-RMC-100 Room Controller, refer to the latest
version of their respective Operations & Installation Guides (Doc. 6745
and Doc. 6743).
3

Connect DigitalMedia Device Power Source

NOTE: If a DM switcher, or other DM device supplying power, is connected to a DM IN 4-6 port
of the DM-MD6X1, then the +24V wire between the DM device and the DM-MD6X1 must be
disconnected. The A B G wires must remain connected.
A. The switcher can supply up to 30 watts of internal power to connected room
controllers repeaters and transmitters up to their rated level.
B. Ensure that the EIG jumpers are installed and wired between E and I for internal
power to be routed to the connected devices. If power is not being supplied to an external
device, make sure the jumper is not connected.
C. If the devices to be connected (both input and output) will require more power than is
available from the switcher, connect them to an external 24 VDC supply (that can supply
the required power) by connecting the E and G terminals of the EIG connector to the +
and G terminals of the (unpowered) external supply. (Refer to the illustration.)
INTERNAL
POWER
1
For details, refer to the latest revision of the DM-MD6X1 DigitalMedia
Switcher Operations Guide, Doc. 6850.
QUICKSTART DOC. 6851B (2024731)
DigitalMedia ™ Switcher
24 VDC
EXTERNAL
+ G
POWER SUPPLY
™
www.crestron.com
06.10
©2010 Specifications subject to
change without notice.
'D' Video
'M' Data
Management
'D' Video
'M' Data Management (CAT5E)
'DMNet' Control & Power
4

Connect Other Inputs and Outputs

From Analog and Component Video
VIDEO IN 1:
From YPbPr, Composite or
S-video Sources
AUDIO IN (1-2):
:
Balanced Line Level Analog Audio
From Digital Audio Output
888.273.7876 201.767.3400
All brand names, product names, and trademarks
are the property of their respective owners.
DM-CBL-P
or
DM-CBL-NP
'DMNet'
Control &
Power
DM-DR
Repeater
RGB IN 2:
Input Sources
HDMI IN 3:
DM IN / 24 A B G (4-6):
HDMI Digital
From Outputs of DM Transmitters
Video/Audio
or Other DM Devices
AUDIO OUT:
HDMI OUT:
Balanced Line Level Audio
HDMI Digital
:
Video/Audio Output
SPDIF IN 1:
Room Controller
DM Input
D M 24ABG
DM-CBL-P
or
DM-CBL-NP
USB HID:
To USB HID Device
LAN:
10BASE-T/
100BASE-TX
Ethernet to LAN
