1 1 Introduction
Input/output (I/O) blades and the CPU blade are installed
prior to shipment of the Crestron DM-MD64X64 and
®
DM-MD128X128:
● The DM-MD64X64 can contain up to 8 input blades
and 8 output blades. Input blades occupy input slots
1-8. Output blades occupy output slots 1-8. One
DMB-CPU-64 blade occupies the CPU slot.
● The DM-MD128X128 can contain up to 16 input
blades and 16 output blades. Input blades occupy
input slots 1-16. Output blades occupy output slots
1-16. One DMB-CPU-128 blade occupies the
CPU slot.

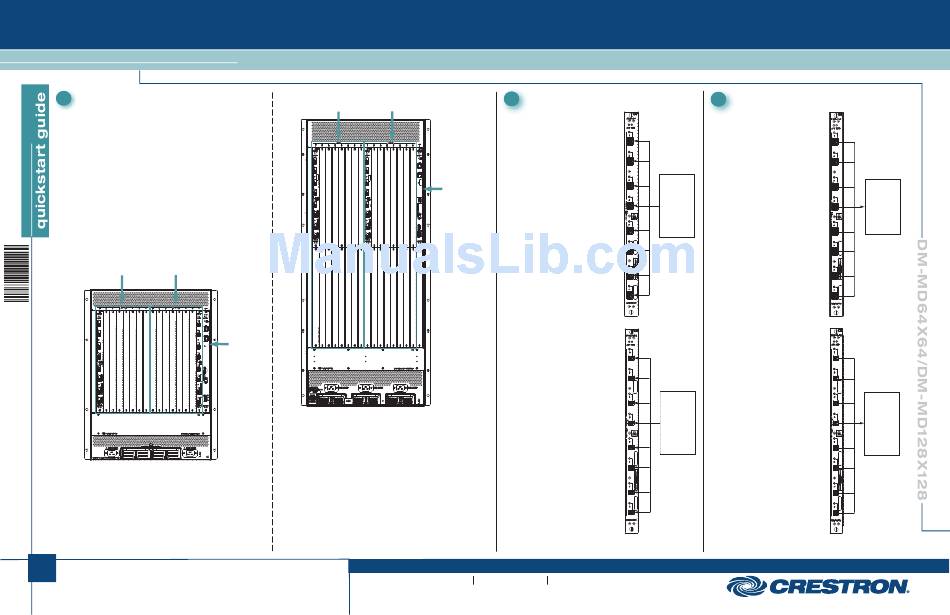

The following illustrations show configurations of the
DM-MD64X64 and DM-MD128X128 containing one input
blade, one output blade, and the associated CPU blade.
Sample DM-MD64X64 Configuration
Input Slots 1-8 Output Slots 1-8
In the configuration above, the DM-MD64X64 contains an
input blade in input slot 1, an output blade in output slot 8,
and the DMB-CPU-64 blade in the CPU slot.
1
For details, refer to the latest version of the DM-MD64X64/
DM-MD128X128 DigitalMedia Switchers Operations & Installation
Guide, Doc. 7318.
QUICKSTART DOC. 7319B (2035907)
64X64/128X128 DigitalMedia
Sample DM-MD128X128 Configuration
Output Slots 1-16
Input Slots 1-16
CPU Blade
In the configuration above, the DM-MD128X128 contains an
input blade in input slot 1, an output blade in output slot 1,
and the DMB-CPU-128 blade in the CPU slot.
www.crestron.com
Specifications subject to
change without notice.
09.13
Switchers
™
2
Connecting Input Blades
DMB-I-S
Provides eight DM 8G ®
inputs that connect to DM 8G
fiber outputs of DM ®
transmitters or other DM
devices using multimode fiber
optic cable (sold separately).
Using CRESFIBER8G, the
maximum transmission
CPU Blade
distance is 1000 feet
(~300 meters). Using
CRESFIBER,
CRESFIBER-SINGLE-SC,
or third-party OM3 simplex
multimode fiber optic cable,
-B- -B-
the maximum transmission
distance is 500 feet
(~150 meters).
DMB-I-S2
Provides eight DM 8G SMF
inputs that connect to DM 8G
SMF outputs of DM
transmitters or other DM
devices using single-mode
fiber optic cable (sold
separately). Using
CRESFIBER8G-SM or
third-party G.652.D (or better)
single-mode fiber optic cable,
the maximum transmission
distance is 7.5 miles (12 km).
888.273.7876 201.767.3400
3
Connecting Output Blades
DMB-O-S
fiber Provides eight DM 8G fiber
outputs that connect to DM
8G fiber inputs of DM
receivers or other DM devices
using multimode fiber optic
cable (sold separately). Using
CRESFIBER8G, the
INPUT
maximum transmission
MMF/SC:
distance is 1000 feet
From DM 8G
(~300 meters). Using
Fiber Output
CRESFIBER,
of DM
Transmitter CRESFIBER-SINGLE-SC,
or
or third-party OM3 simplex
Other DM
multimode fiber optic cable,
Device
the maximum transmission
distance is 500 feet
(~150 meters).
DMB-O-S2
Provides eight DM 8G
single-mode fiber outputs that
connect to DM 8G SMF
inputs of DM receivers or
other DM devices using
single-mode fiber optic cable
(sold separately). Using
INPUT
CRESFIBER8G-SM or
SMF/LC:
third-party G.652.D (or better)
From DM 8G
single-mode fiber optic cable,
SMF Fiber
the maximum transmission
Output
of DM distance is 7.5 miles (12 km).
Transmitter
or Other
DM Device
OUTPUT
MMF/SC:
To DM 8G
Fiber Input
of DM
Receiver or
Other DM
Device
OUTPUT
SMF/LC:
To DM 8G
SMF Fiber
Input
of DM
Receiver or
Other DM
Device
