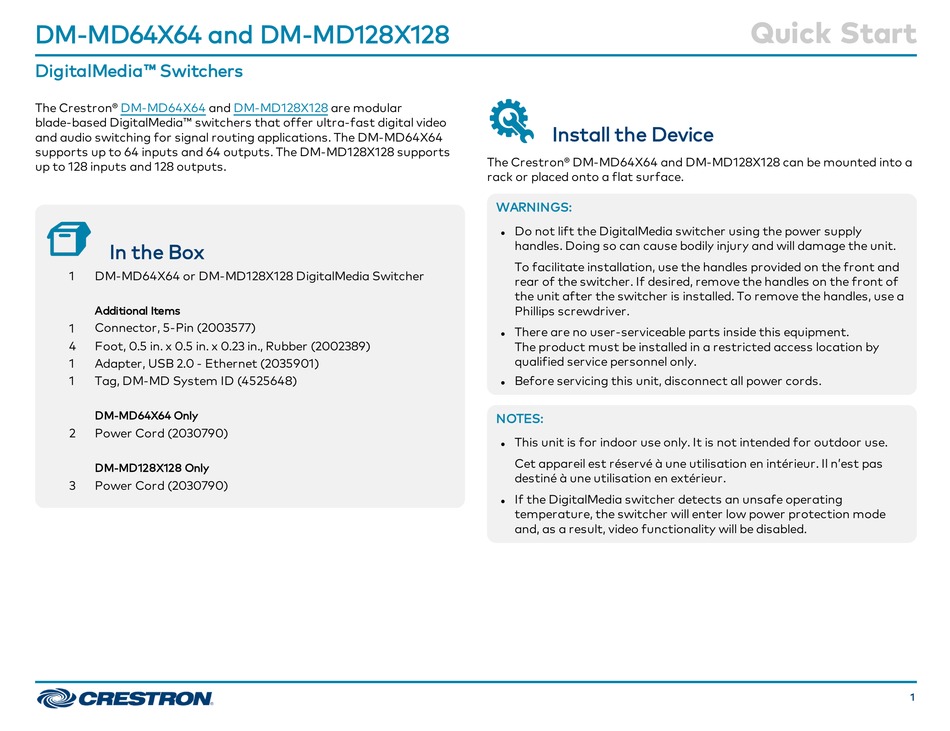

DM-MD64X64 and DM-MD128X128
DigitalMedia™ Switchers

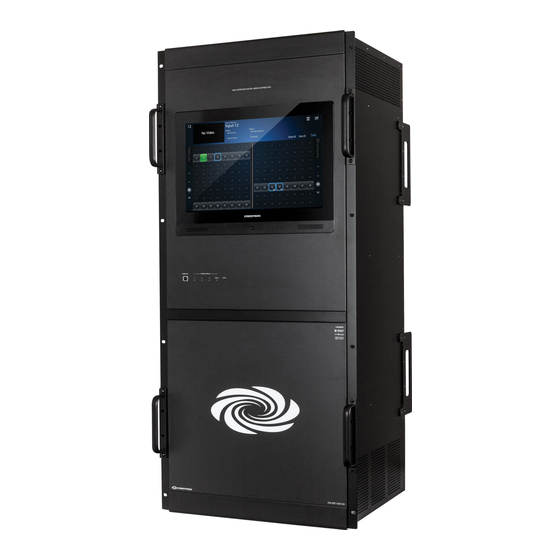

The Crestron® DM-MD64X64 and
blade-based DigitalMedia™ switchers that offer ultra-fast digital video
and audio switching for signal routing applications. The DM-MD64X64
supports up to 64 inputs and 64 outputs. The DM-MD128X128 supports
up to 128 inputs and 128 outputs.
In the Box
1 DM-MD64X64 or DM-MD128X128 DigitalMedia Switcher
Additional Items
Connector, 5-Pin (2003577)
1
4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Rubber (2002389)
1 Adapter, USB 2.0 - Ethernet (2035901)
1 Tag, DM-MD System ID (4525648)
DM-MD64X64 Only
2 Power Cord (2030790)
DM-MD128X128 Only
3 Power Cord (2030790)
DM-MD128X128 are modular
Install the Device
The Crestron® DM-MD64X64 and DM-MD128X128 can be mounted into a
rack or placed onto a flat surface.
WARNINGS:
Do not lift the DigitalMedia switcher using the power supply
l
handles. Doing so can cause bodily injury and will damage the unit.
To facilitate installation, use the handles provided on the front and
rear of the switcher. If desired, remove the handles on the front of
the unit after the switcher is installed. To remove the handles, use a
Phillips screwdriver.
There are no user-serviceable parts inside this equipment.
l
The product must be installed in a restricted access location by
qualified service personnel only.
Before servicing this unit, disconnect all power cords.
l
NOTES:
This unit is for indoor use only. It is not intended for outdoor use.
l
Cet appareil est réservé à une utilisation en intérieur. Il n'est pas
destiné à une utilisation en extérieur.
If the DigitalMedia switcher detects an unsafe operating
l
temperature, the switcher will enter low power protection mode
and, as a result, video functionality will be disabled.
Quick Start
1
