Crestron DM-MD64X64 Do Manual

DO
DM-MD64X64/DM-MD128X128
DigitalMedia™ Switchers
DO Install the Device
The Crestron ® DM-MD64X64 and DM-MD128X128 can be mounted into a rack or placed onto a flat
surface.
WARNING: Do not lift the DigitalMedia™ switcher using the power supply handles. Doing so will
damage the unit and can cause bodily injury.
NOTE: To facilitate installation, handles are provided on the front and rear of the DigitalMedia
switcher. If desired, the handles on the front of the unit can be removed after installation by using a
Phillips screwdriver.
NOTE: If the DigitalMedia switcher detects an unsafe operating temperature, the switcher will enter
low power protection mode and, as a result, video functionality will be disabled.
Mounting into a Rack
The DM-MD64X64 occupies 14U of rack space. The DM-MD128X128 occupies 24U of rack space.
WARNING: To prevent bodily injury when mounting or servicing the unit in a rack, observe the
following guidelines:
• When mounting the unit in a partially filled rack, load the rack from the bottom to the top
with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or
servicing the unit in the rack.
The DigitalMedia switcher has rack ears integrated into the chassis. The rack ears cannot be
removed. To attach the DigitalMedia switcher to a rack, use four mounting screws (not included) for
each rack ear.
Placing onto a Flat Surface
When placing the device onto a flat surface or stacking it with other equipment, attach the included
feet near the corners on the underside of the device.
DO Connect the Device
Input/output (I/O) blades and the CPU blade are installed prior to shipment of the DigitalMedia
switcher. Make connections to the blades as appropriate for the application. For information about
blade connections, refer to the DM-MD64X64/DM-MD128X128 Supplemental Guide (Doc. 7318) at
www.crestron.com/manuals.
DO Apply Power
NOTE: The DM-MD64X64 requires two 20 A @ 100–127 Vac or two 10 A @ 200-240 Vac circuits.
The DM-MD128X128 requires three 20 A @ 100−127 Vac or three 10 A @ 200−240 Vac circuits.
To apply power to a DigitalMedia switcher, connect the supplied ac power cords to the power inlets
of the switcher. Connect the other end of the power cords to ac power using the same ac voltage
type—either 127 Vac or 220 Vac.
GUIDE
DO Check the Box
QTY PRODUCT
1 Adapter, USB 2.0 - Ethernet
1 Cable, USB 2.0, A - B, 6' (1.83 m)
1 Connector, 5-Pin
4 Foot, 0.5" x 0.5" x 0.23", Rubber
1 Tag, DM-MD System ID
DM-MD64X64 Only
2 Power Cord
DM-MD128X128 Only
3 Power Cord

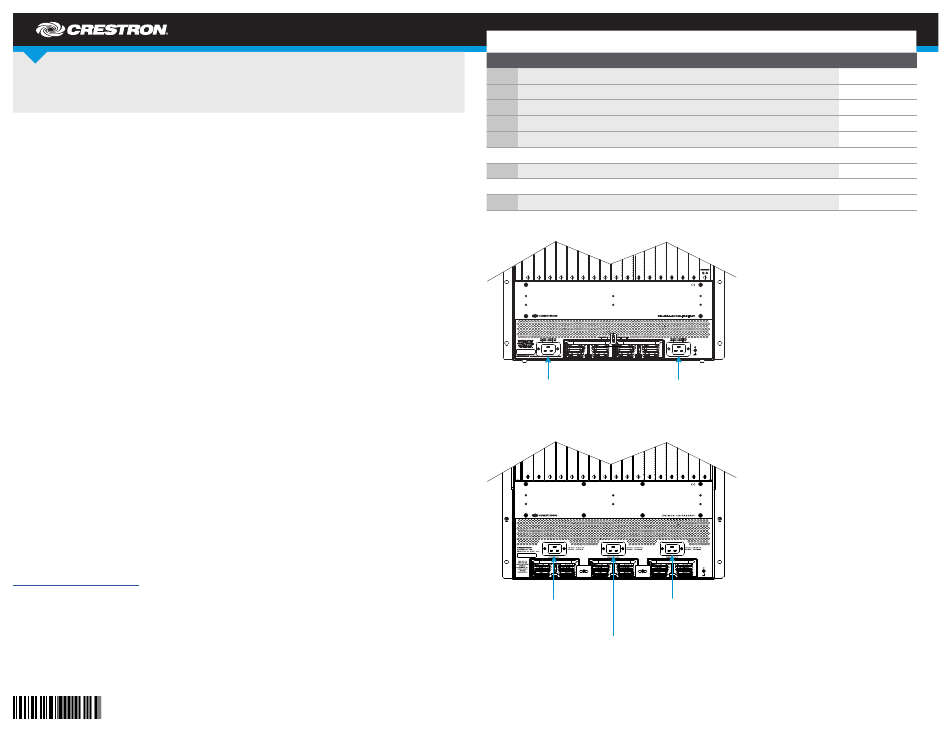

DM-MD64X64 Power Connections
100-127V ~ 50/60Hz 16A, 100-127V ~ 50/60Hz 16A,
200-240V ~ 50/60Hz 8A: 200-240V ~ 50/60Hz 8A:
From ac power outlet
From ac power outlet
DM-MD128X128 Power Connections
100-127V ~ 50/60Hz 16A,
100-127V ~ 50/60Hz 16A,
200-240V ~ 50/60Hz 8A:
200-240V ~ 50/60Hz 8A:
From ac power outlet From ac power outlet
100-127V ~ 50/60Hz 16A,
200-240V ~ 50/60Hz 8A:
From ac power outlet
COLOR PART NUM.
2035901
2014966
2003577
Black 2002389
4525648
2030790
2030790
